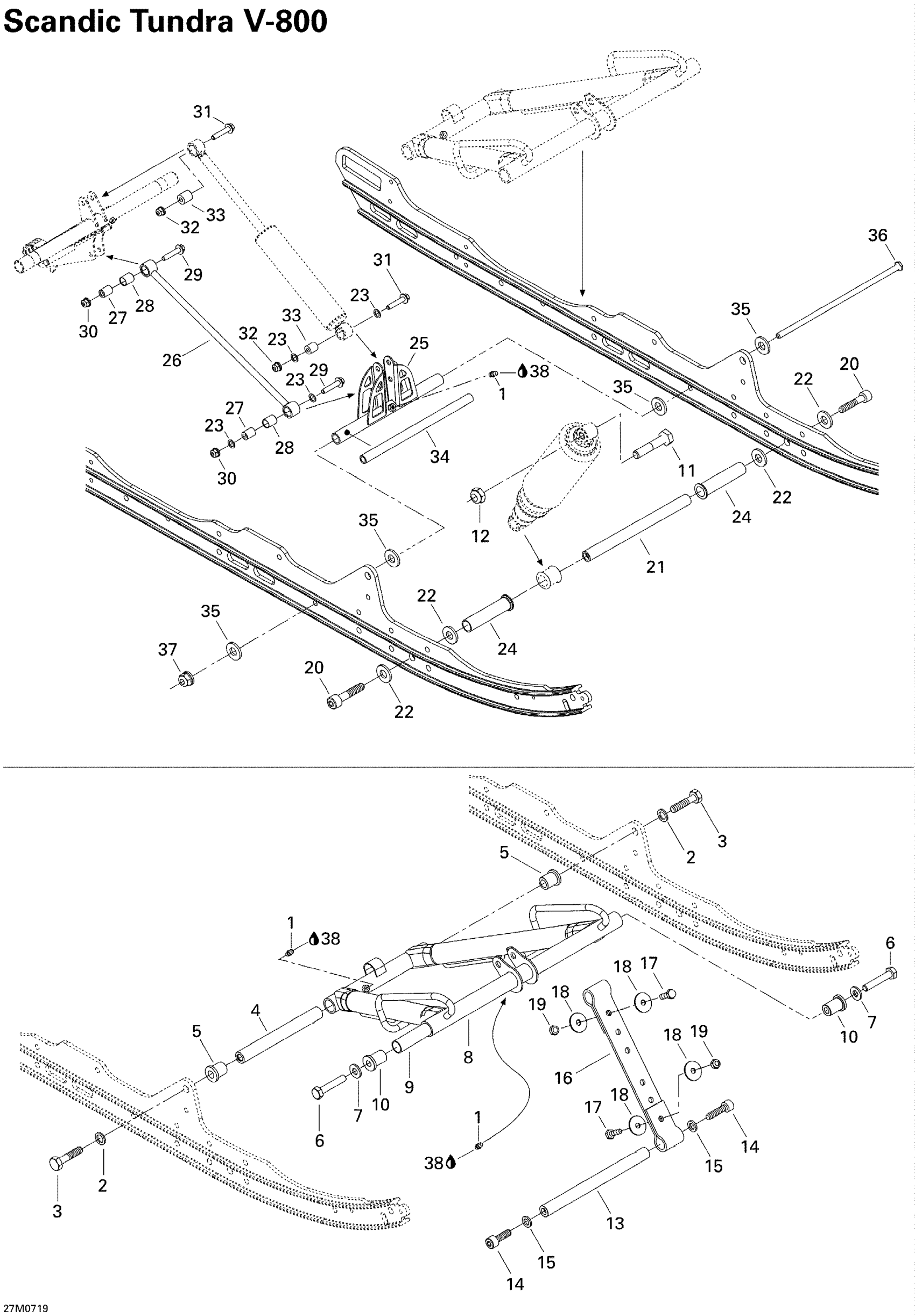

Ski-Doo Skandic Tundra V-800, 2007 Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

$3.21

2

Washer

503189276

$3.10

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

7

Washer

732900049

$0.55

8

FRONT ARM - Call your local BRP dealership

503191080

Unavailable

9

SHAFT - Call your local BRP dealership

503190387

Unavailable

10

Bushing

503189324

$10.84

11

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

12

Elastic Stop Nut M10

232500416

$1.79

13

AXLE - Call your local BRP dealership

503189562

Unavailable

14

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

15

Washer

503189564

$0.70

16

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

17

Hex. Flange Screw M8 X 25

207682544

$1.03

18

Flat Washer

224081301

$0.84

19

Hex. Flange Elastic Nut M8

233281414

$1.31

20

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

21

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

22

Washer

503189276

$3.10

23

WASHER - Call your local BRP dealership

503191564

Unavailable

24

Center Bushing

503191259

$8.70

25

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

25

Washer

503189157

$3.10

26

THROTTLE ROD - Call your local BRP dealership

503191489

Unavailable

27

BUSHING - Call your local BRP dealership

503189133

Unavailable

28

CUSHION - Call your local BRP dealership

503189625

Unavailable

29

Hex. Flange Screw M8 X 40

207684044

$1.43

30

Elastic Flange Nut M8

250100025

$1.43

31

Hex. Screw M8 X 40

207084044

$1.06

32

Hex. Elastic Stop Nut M8

232581414

$0.54

33

Bushing

414936000

$11.21

34

Pivot Arm Axle

503189156

$20.12

35

Washer

503189157

$3.10

36

Bolt M8 X 248mm

503192440

$29.07

37

Elastic Flange Nut M8

250100025

$1.43

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
