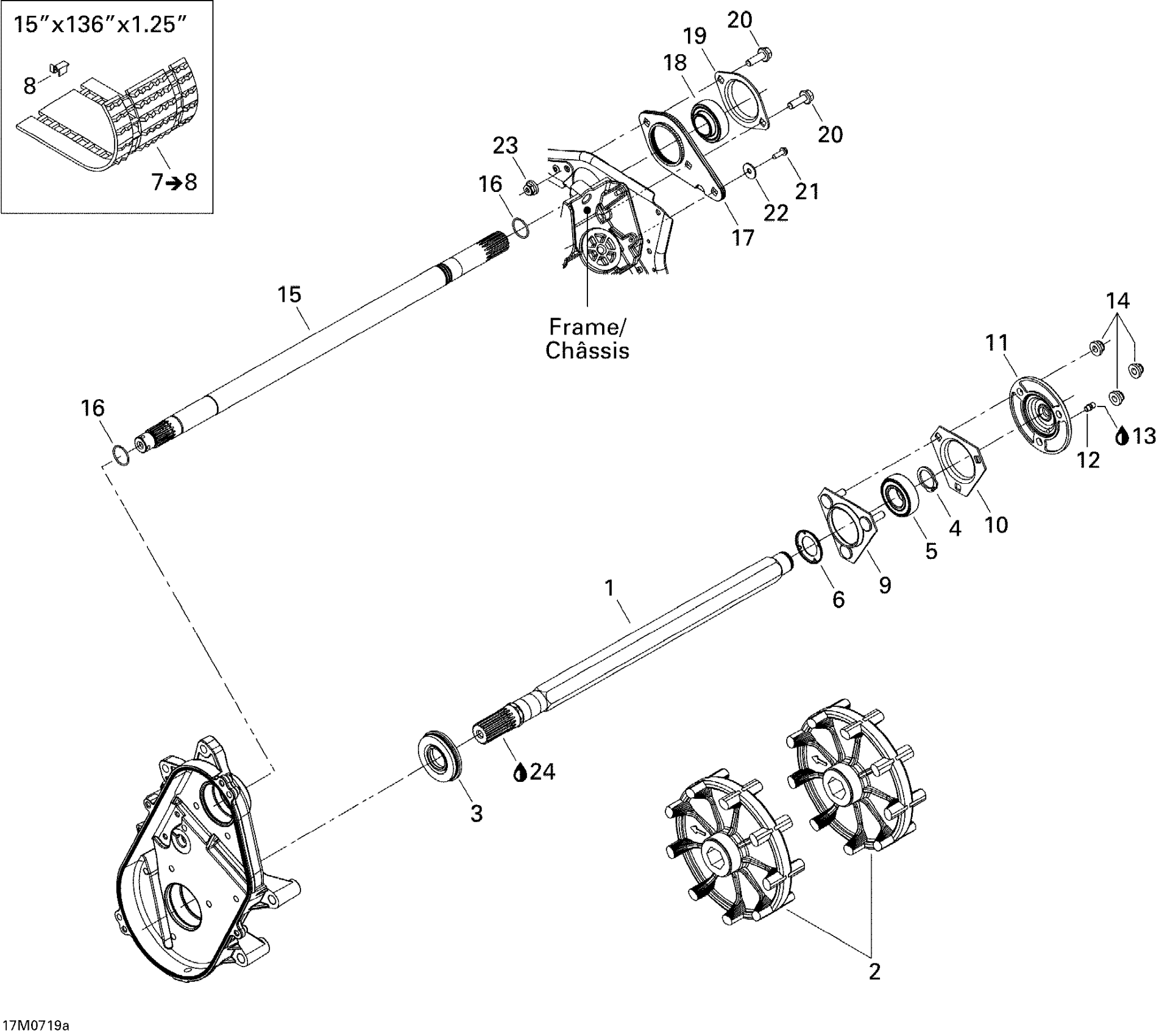

Ski-Doo Skandic Tundra V-800, 2007 Drive System 1 Diagram
#
Description
Price
2
SPROCKET, 9 TEETH - Call your local BRP dealership
504151781
Unavailable
3
Oil Seal Ass'y
504151918
Unavailable
4
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
5
Ball Bearing
293350060
Unavailable
6
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
7
Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9
504152456
Unavailable
9
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
10
FLANGE - Call your local BRP dealership
501025000
Unavailable
11
SPEEDO FLANGE - Call your local BRP dealership | Except Europe
504152463
Unavailable
12
Grease Fitting
408200700
Unavailable
13
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
14
Hex. Flange Elastic Nut M8
233281414
Unavailable
15
COUNTER SHAFT - Call your local BRP dealership
504152292
Unavailable
16
Circlip
371910000
Unavailable
17
SPACER - Call your local BRP dealership
504151968
Unavailable
18
Ball Bearing Kit This part replaces 504152535.
415129555
Unavailable
19
BEARING HOUSING ASS'Y - Call your local BRP dealership
504153089
Unavailable
20
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
21
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
22
Flat Washer
224061201
Unavailable
23
Hex. Flange Elastic Nut M8
233281414
Unavailable
24
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
