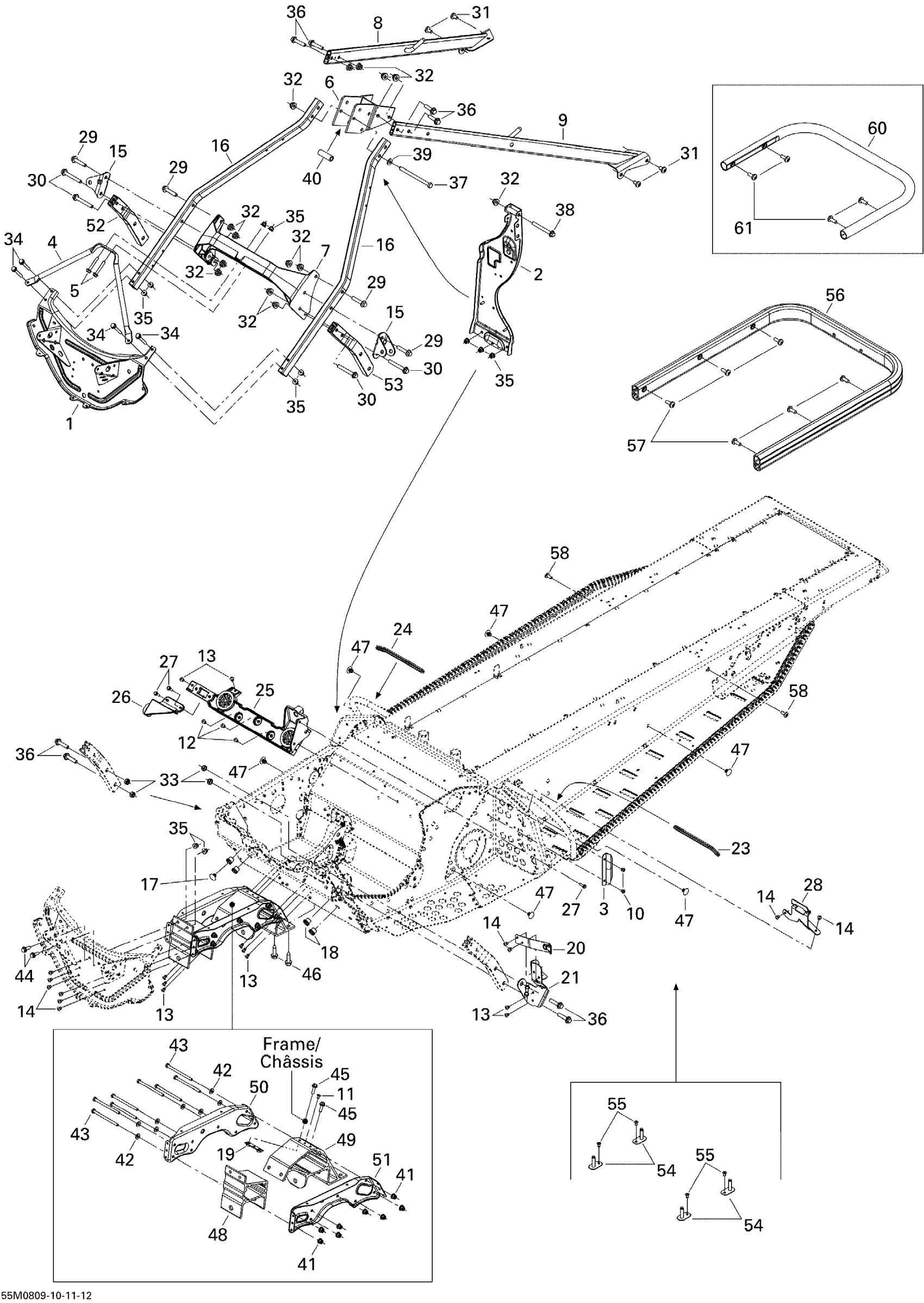

Ski-Doo Skandic Tundra LT V-800, 2008 Frame and Components Diagram

#

Description
Price

1

FRONT PLATE - Call your local BRP dealership

518324216

Unavailable

2

UPPER COLUMN SUPPORT - Call your local BRP dealership

518325212

Unavailable

3

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

4

BRACE - Call your local BRP dealership

518325036

Unavailable

5

Hex. Flange Screw M6 X 40

207664044

$2.18

6

BRACKET BLOCK - Call your local BRP dealership

518324196

Unavailable

7

UPPER CROSS MEMBER - Call your local BRP dealership

518324808

Unavailable

8

RH MEMBER - Call your local BRP dealership

518324480

Unavailable

9

LH Member

518325193

Unavailable

10

Pop Rivet 3/16"

390402200

$0.26

11

Pop Rivet 3/16"

390402300

Unavailable

12

Hemlock Rivet, 6.5 mm

293150119

$4.00

13

Avex Rivet

390909100

$0.29

14

Avex Rivet

390909200

Unavailable

15

SHOCK BRACKET - Call your local BRP dealership

518324202

Unavailable

16

UPPER TUBE - Call your local BRP dealership

518325074

Unavailable

17

Black, Dart

414644300

$0.78

18

Insert

293450166

Unavailable

19

HOLDER PLATE - Call your local BRP dealership

518324204

Unavailable

20

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518325235

Unavailable

21

GUARD BELT SUPPORT - Call your local BRP dealership

518325075

Unavailable

23

Was 271000110 Protection Trim

219704353

Unavailable

24

Was 271000110 Protection Trim

219704353

Unavailable

25

LH REAR ENGINE SUPPORT - Call your local BRP dealership

518324902

Unavailable

26

RH Rear Engine Support

518324903

Unavailable

27

Hex. Flange Screw, Scotch Grip

207551634

Unavailable

28

GUARD BELT BRACKET - Call your local BRP dealership

518325077

Unavailable

29

Hex. Flange Screw M8 X 40

207684044

Unavailable

30

Hex. Flange Screw M8 x 60

207686044

$2.56

31

Pan Head Torx Screw M8 X 12

250000887

$1.56

32

Hex. Flange Elastic Nut M8

233281414

Unavailable

33

Hex. Elastic Stop Nut M8

232581414

Unavailable

34

Hex. Flange Screw M6 X 45

207664544

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

36

Hex. Flange Screw M8 X 35

207683544

$1.39

37

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

38

Hex. Flange Screw M8 X 70

207687044

Unavailable

39

Washer

503189157

$3.20

40

Housing Bushing

506150500

Unavailable

41

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

42

Flat Washer

250200039

Unavailable

43

Hex. Screw M6 X 90

207069044

Unavailable

44

Hex. Flange Screw M6 X 20

207662044

Unavailable

45

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

46

Cone Screw, M8 X 30

250000257

$1.72

47

Panel Fastener

518321954

Unavailable

48

FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324019

Unavailable

49

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324020

Unavailable

50

RH LATERAL REINFORCEMENT - Call your local BRP dealership

518324014

Unavailable

51

LH LATERAL REINFORCEMENT - Call your local BRP dealership

518324017

Unavailable

52

RH TUBE - Call your local BRP dealership

518324786

Unavailable

53

LH TUBE - Call your local BRP dealership

518324787

Unavailable

54

Tank Bracket

518322791

Unavailable

55

Pop Rivet 3/16"

390402400

Unavailable

56

REAR BUMPER - Call your local BRP dealership

518325509

Unavailable

57

Hex. Screw M8 X 20

236282084

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

60

Not Available As Spare Parts

XXX

Unavailable

61

Not Available As Spare Parts

XXX

Unavailable
