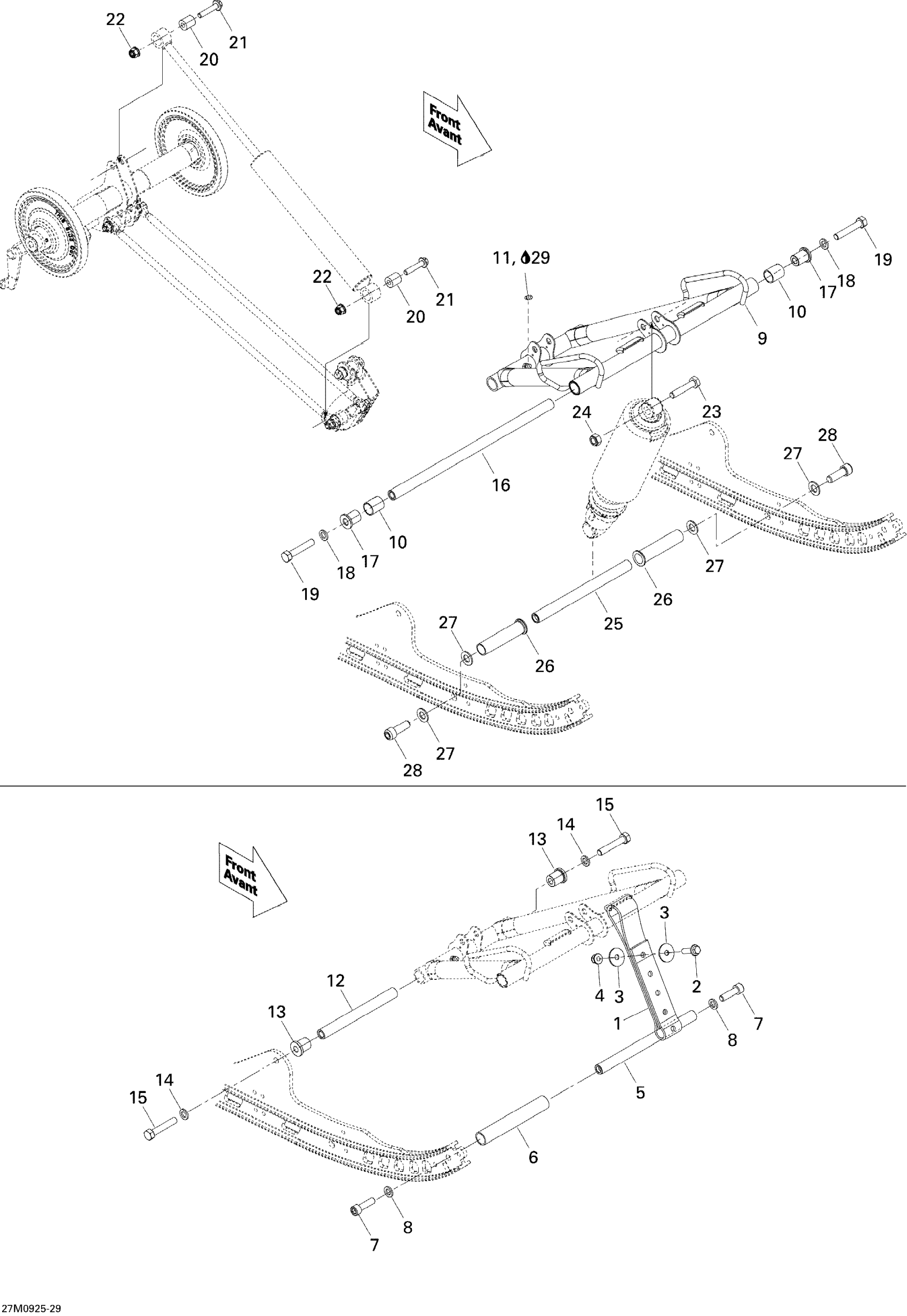

Ski-Doo Skandic Tundra LT 550F, 2009 Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

Unavailable

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

3

Flat Washer

224081301

$0.86

4

Hex. Flange Elastic Nut M8

233281414

Unavailable

5

Axle Strap

503191260

Unavailable

6

Spacer

503191448

Unavailable

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

8

Washer

503189564

Unavailable

9

Front Arm | Includes 2000a to 2000b

503191752

$359.97

10

Extended Bushing

503191556

Unavailable

11

Grease Fitting

408200700

Unavailable

12

Lower Shaft

503191279

$27.66

13

Bushing

503189324

$11.17

14

Washer

503189564

Unavailable

15

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

16

Upper Shaft

503191215

$36.12

17

Bushing

503191262

$13.60

18

Washer

503189564

Unavailable

19

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

20

Bushing

414936000

Unavailable

21

Hex. Flange Screw M8 X 40

207684044

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

24

Elastic Stop Nut M10

232500416

$1.56

25

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

26

Center Bushing

503191259

Unavailable

27

Washer

503189276

Unavailable

28

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

29

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
