Description

Price

1

FRONT PLATE - Call your local BRP dealership

518324216

$38.43

2

UPPER COLUMN SUPPORT - Call your local BRP dealership

518325212

$29.28

3

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

4

BRACE - Call your local BRP dealership

518324988

$15.02

5

Hex. Flange Screw M6 X 35

207663544

$0.74

6

BRACKET BLOCK - Call your local BRP dealership

518324196

$53.05

7

Upper Cross Member

518325150

Unavailable

8

RH MEMBER - Call your local BRP dealership

518324480

$78.43

9

LH Member

518325193

Unavailable

10

Pop Rivet 3/16"

390402200

$0.26

11

Pop Rivet 3/16"

390402300

$0.64

12

Pop Rivet 3/16"

390402400

$0.25

13

Avex Rivet

390909100

$0.29

14

Avex Rivet

390909200

$0.29

15

SHOCK BRACKET - Call your local BRP dealership

518324202

$8.68

16

UPPER TUBE - Call your local BRP dealership

518325074

$183.05

17

Insert

293450166

$4.00

18

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

$43.05

19

HOLDER PLATE - Call your local BRP dealership

518324204

Unavailable

20

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

21

BELT GUARD SUPPORT - Call your local BRP dealership

518324439

$8.68

22

TRUNK BRACKET - Call your local BRP dealership

518324688

$10.26

23

Was 271000110 Protection Trim

219704353

$15.03

24

Was 271000110 Protection Trim

219704353

$15.03

25

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

26

TRUNK BRACKET, BLACK - Call your local BRP dealership

518324312

$8.68

27

Hex. Flange Screw M8 X 40

207684044

$1.25

28

Pan Head Torx Screw M8 X 12

250000887

$1.56

29

Hex. Flange Elastic Nut M8

233281414

$1.14

30

Hex. Flange Screw M6 X 45

207664544

$1.07

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

32

Hex. Flange Screw M8 X 35

207683544

$1.39

33

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

$2.42

34

Hex. Flange Screw M8 X 70

207687044

$6.11

35

Washer

503189157

$3.20

36

Housing Bushing

506150500

$7.49

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

38

Flat Washer

250200039

$0.72

39

Hex. Screw M6 X 90

207069044

$4.02

40

Hex. Flange Screw M6 X 20

207662044

$1.66

41

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

42

Cone Screw, M8 X 30

250000257

$1.72

43

Threaded Insert M6 X 1.0

250100242

$2.54

44

Panel Fastener

518321954

$6.03

45

FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324019

$26.89

46

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324020

Unavailable

47

RH LATERAL REINFORCEMENT - Call your local BRP dealership

518324014

$14.23

48

LH LATERAL REINFORCEMENT - Call your local BRP dealership

518324017

Unavailable

49

RH VERTICAL TUBE - Call your local BRP dealership

518324214

Unavailable

50

LH Vertical Tube

518324215

Unavailable

51

Black, Dart

414644300

$0.78

52

Pop Rivet 3/16"

390402200

$0.26

53

Pop Rivet 3/16”

390910000

$0.48

54

Washer

517124300

$0.16

55

Rear Bumper

518325215

Unavailable

56

Hex. Screw M8 X 20

236282084

$1.48

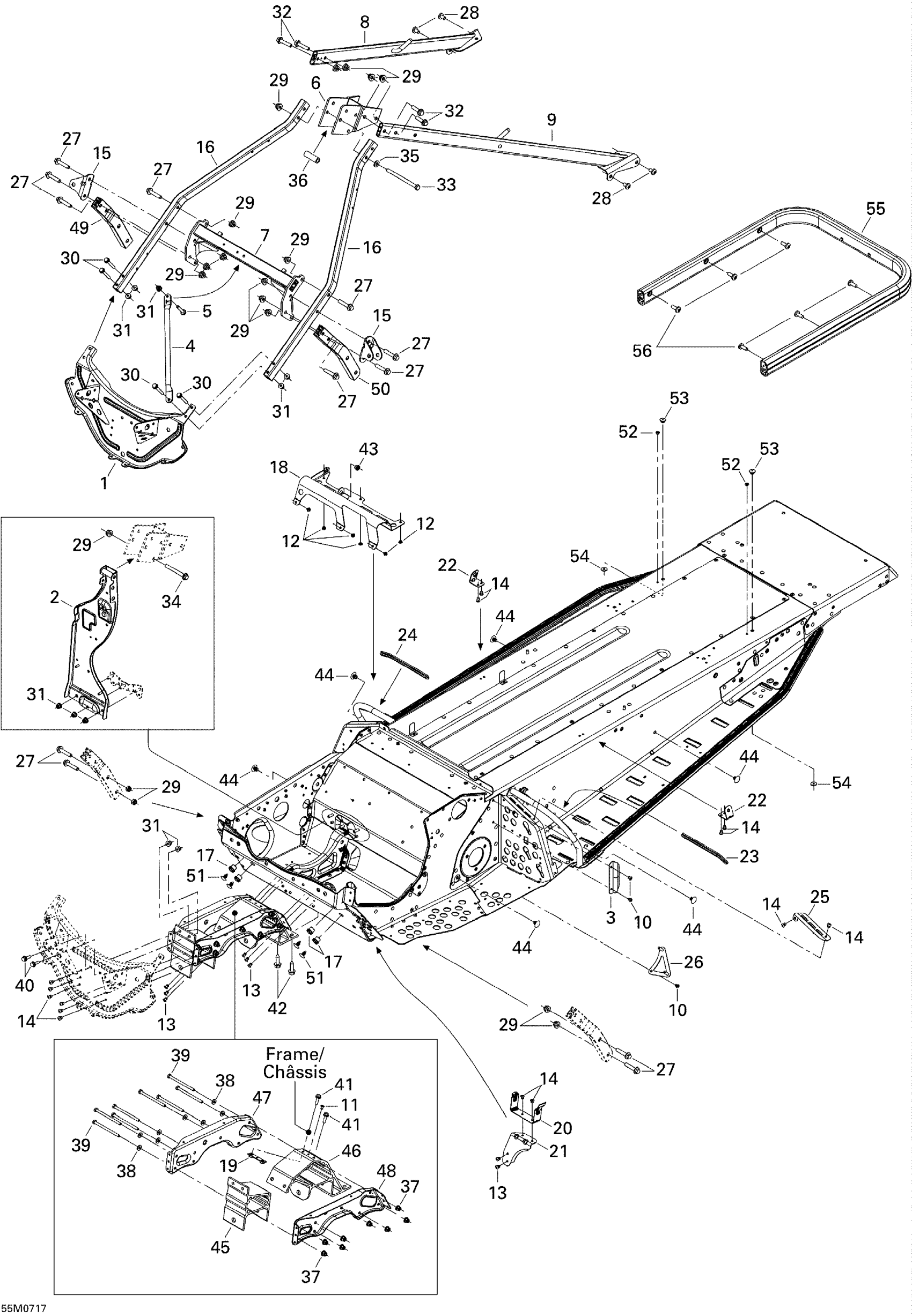

Ski-Doo Skandic Tundra 300F, 2007 Frame and Components Diagram

Upper Cross Member

LH Member

HOLDER PLATE - Call your local BRP dealership

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

LH LATERAL REINFORCEMENT - Call your local BRP dealership

RH VERTICAL TUBE - Call your local BRP dealership

LH Vertical Tube

Rear Bumper
