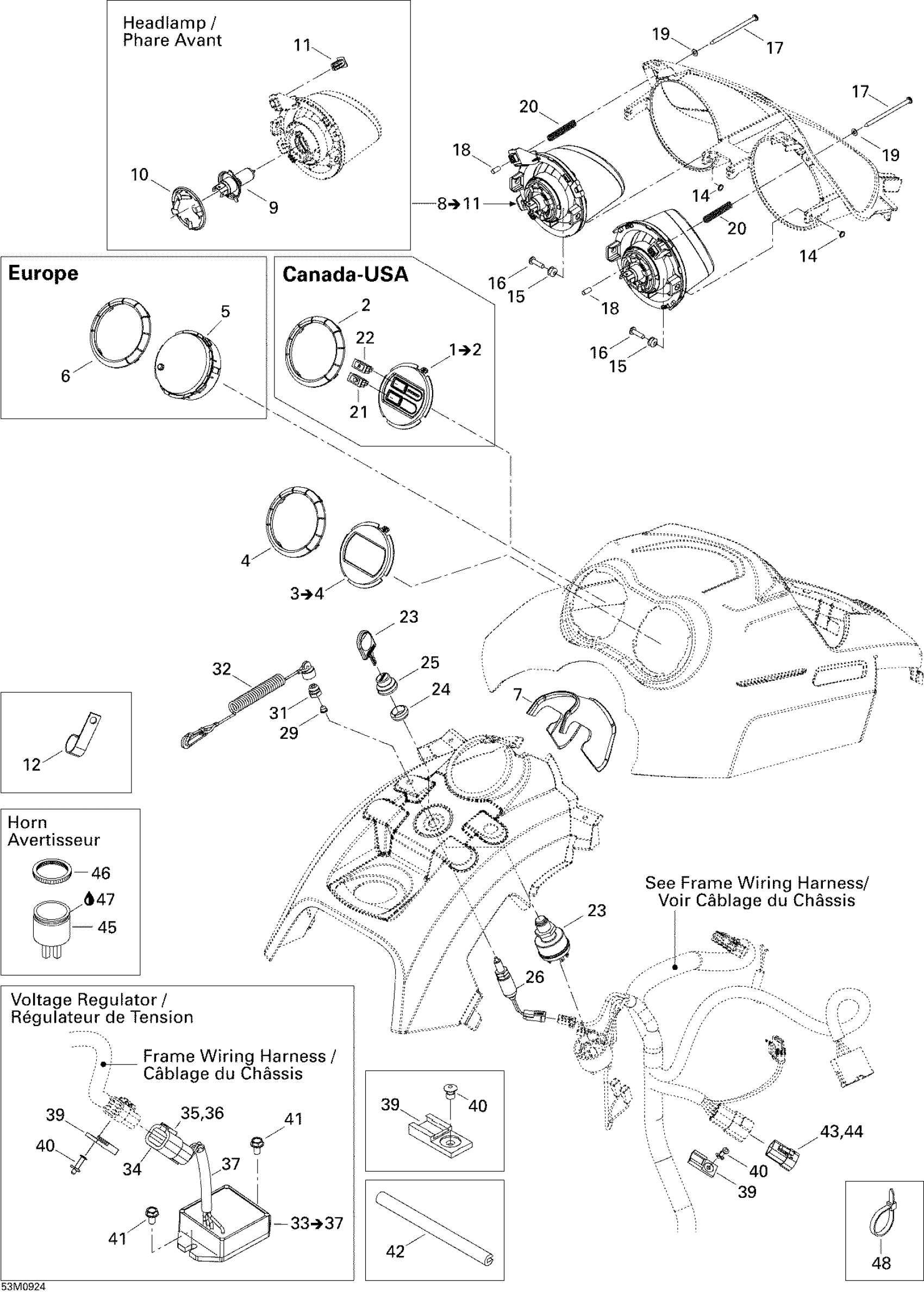

Ski-Doo Skandic Tundra, 2009 Electrical Accessories Diagram

#

Description
Price

1

BOTTOM RING ASS'Y - Call your local BRP dealership | Includes 1 to 2, North America

515176411

$13.57

2

Gauge Ring This part replaces 515176242.

515179005

$12.69

3

GAUGE BOTTOM RING ASS'Y - Call your local BRP dealership | Includes 1 to 2

515176373

$12.77

4

Gauge Ring This part replaces 515176242.

515179005

$12.69

5

SPEEDOMETER - Call your local BRP dealership | Includes 1 to 1a

515176476

Unavailable

6

Gauge Ring This part replaces 515176242.

515179005

$12.69

7

PROTECTOR - Call your local BRP dealership

515176321

$8.77

8

RH HEADLAMP ASS'Y - Call your local BRP dealership | Includes 8 to 11

515176168

Unavailable

8

LH HEADLAMP ASS'Y - Call your local BRP dealership | Includes 8 to 11

515176169

$73.82

9

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

10

BULB HOLDER - Call your local BRP dealership

515176385

$9.57

11

Plastic Insert

515176339

Unavailable

12

Clamp

515176457

Unavailable

14

Push Nut

389804300

$0.43

15

HEADLAMP BUSHING - Call your local BRP dealership

515176289

$3.97

16

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

17

PHILLIPS SCREW #8 X 3 - Call your local BRP dealership

250000244

Unavailable

18

Cap

515176370

$4.43

19

Flat Washer M5, Stainless

234051600

$0.64

20

SPRING - Call your local BRP dealership

515176353

$6.48

21

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

$11.97

22

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

$9.98

23

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

24

FACE NUT - Call your local BRP dealership

410112100

$14.29

25

Switch Boot

570013700

$10.82

26

Brake Switch

515175653

$15.57

29

Plunger Cap

570151100

$10.14

31

Switch Nut

515145900

$10.83

32

Cap Ass'y

515178283

$37.66

33

Voltage Regulator | Includes 34 to 40

515176189

$210.74

34

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

$29.20

35

Male Terminal

515175568

$7.48

36

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

37

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

39

Clip

270000141

$8.33

40

Avdel Rivet 3/16"

293150037

$0.47

41

Hex. Flange Screw M6 X 12

210261250

$1.56

42

TRIM - Call your local BRP dealership

509000263

$5.35

43

Female Terminal Housing, 4 Circuits

278001473

$25.35

44

Female Lock, 4 Circuits

278001474

$3.02

45

HORN - Call your local BRP dealership

515176035

$83.05

46

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

47

Silicone Sealant 51388, 300 ml

296000309

$35.72

48

Tie-Rap 180 mm

414115200

$0.09

48

Tie Wrap 142 mm

293750002

$0.88

48

Tie Wrap 368 mm

293750008

$0.85

48

Tie-Rap 173 mm

293750009

$0.85
