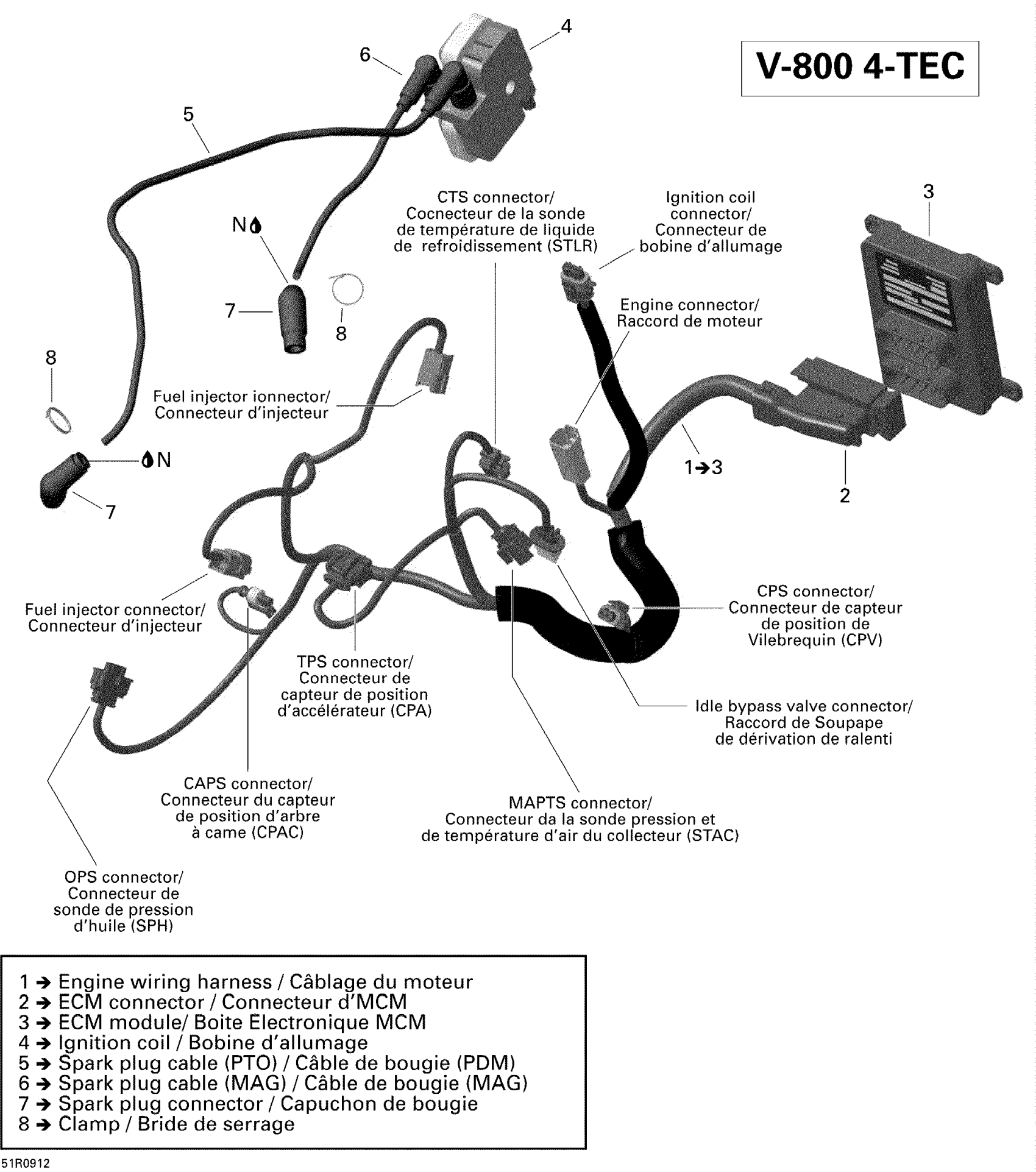

Ski-Doo Skandic SWT V800 YetiII, 2012 Engine Harness And Electronic Module Diagram

#

Description

Price

1

ENGINE WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 3

420665245

Unavailable

2

ECM Connector

420664450

$26.89

3

ECM, Engine Control Module

420665911

Unavailable

4

Ignition Coil

278001546

Unavailable

5

Spark Plug Cable, 790 mm, Rear

420665333

Unavailable

6

Spark Plug Cable, 790 mm, Rear

420665333

Unavailable

7

Spark Plug Connector

420265248

Unavailable

8

Tie Rap

420866710

$4.36

N

Grease, Super Lube

293550030

Unavailable
