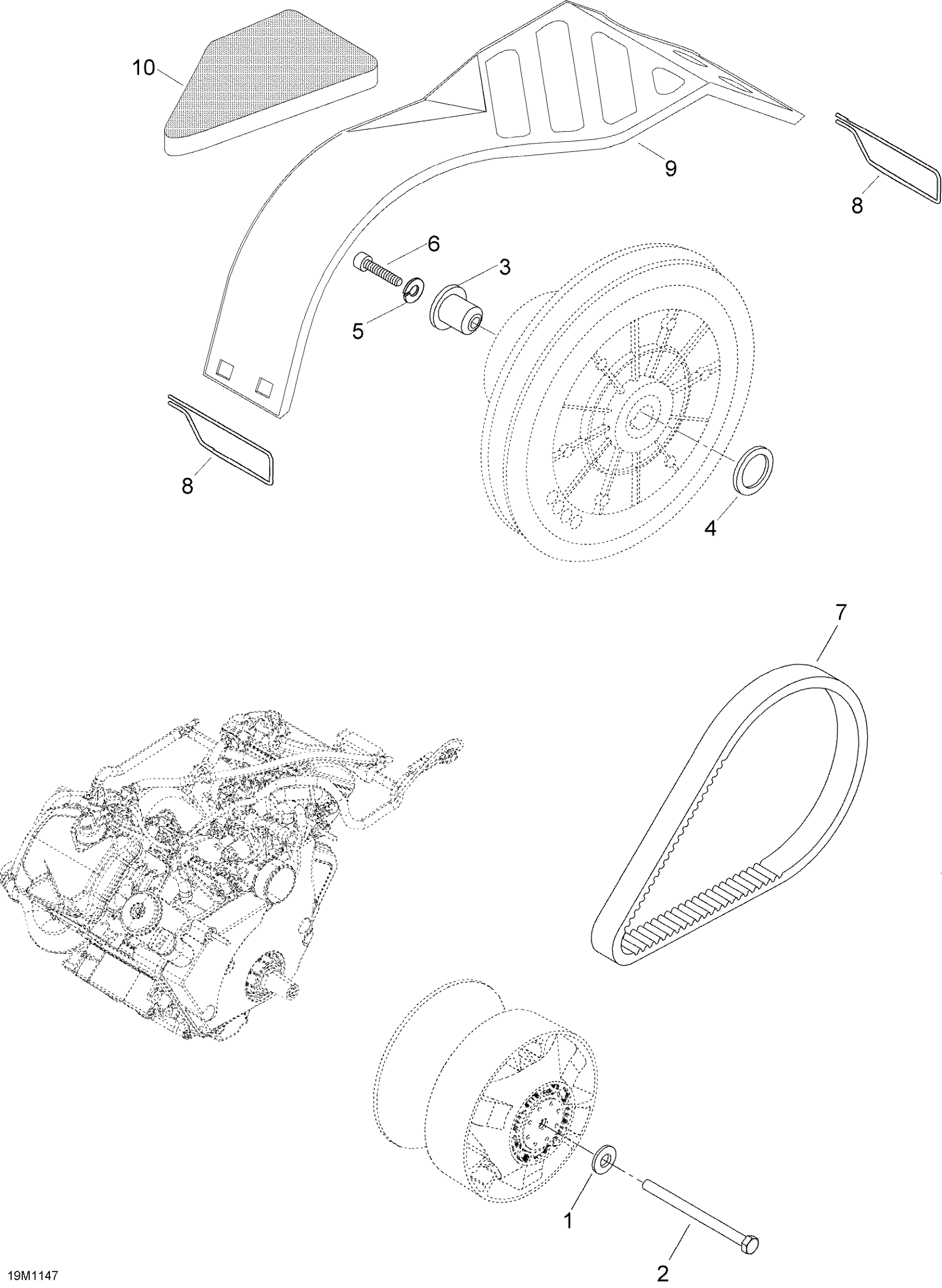

Ski-Doo Skandic SWT V800 YetiII, 2012 Pulley System Diagram

#

Description

Price

1

Conical Spring Washer

M20110

Unavailable

2

Drive Pulley Bolt

417300285

$41.01

3

Shaft Extension

M5443765

Unavailable

4

Shim

M3125351

Unavailable

5

Lock Washer 8 mm

234181401

$0.87

6

SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership

M40290

Unavailable

7

Drive Belt

605348425

$138.03

8

Pin This part replaces M5442726.

5442726

$7.09

9

BELT GUARD - Call your local BRP dealership

605149860

Unavailable

10

ISOLANT FOAM - Call your local BRP dealership

605250741

Unavailable
