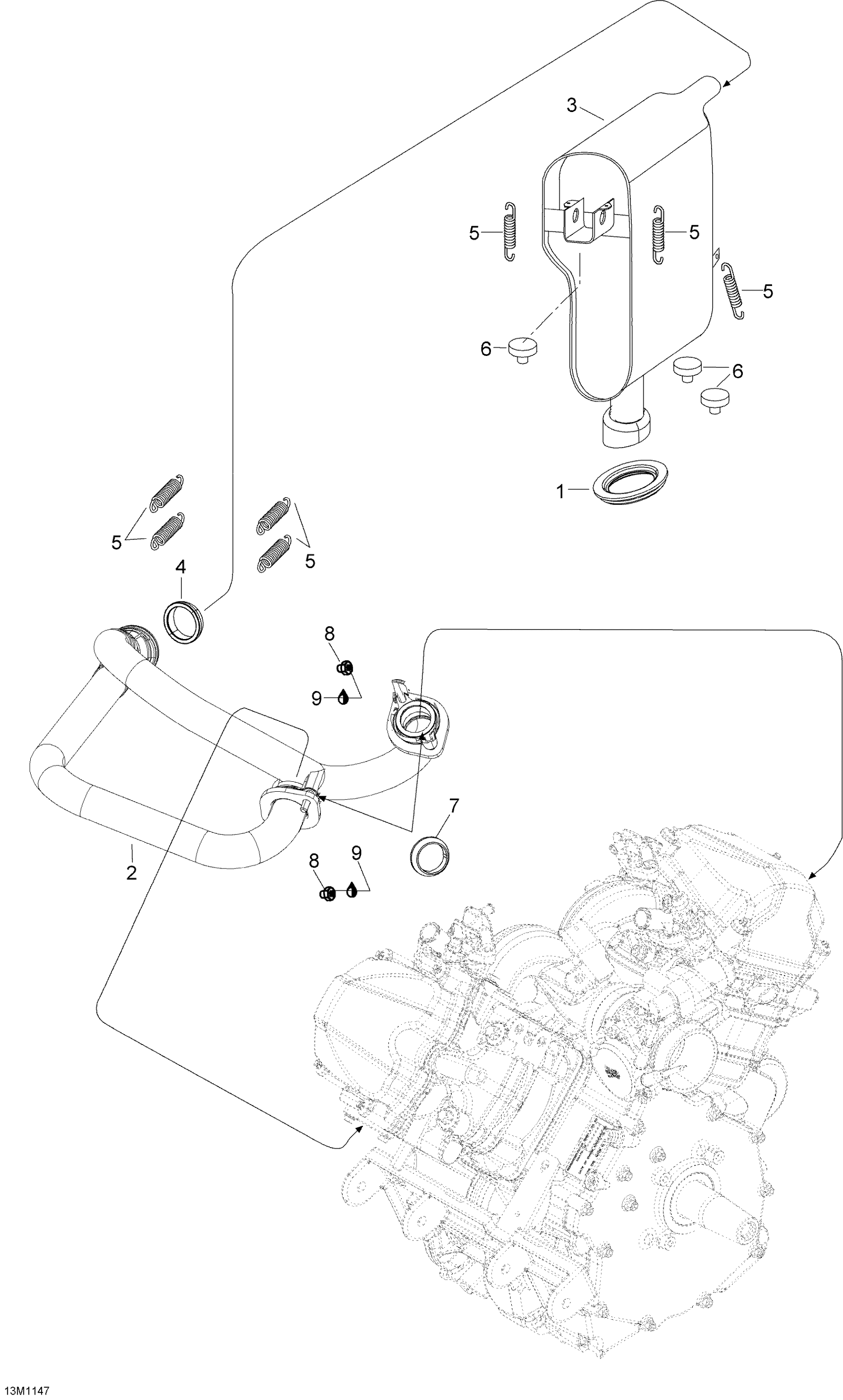

Ski-Doo Skandic SWT V800 YetiII, 2012 Exhaust System Diagram

#

Description

Price

1

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

2

PIPE - Call your local BRP dealership

605252817

Unavailable

3

MUFFLER_EXHAUST - Call your local BRP dealership

605252818

Unavailable

4

Exhaust Gasket

514054174

$26.84

5

Spring

415107100

$6.01

6

Rubber Bumper

514053654

$47.73

7

Gasket

707600317

$10.21

8

Nut

M33044

Unavailable

9

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
