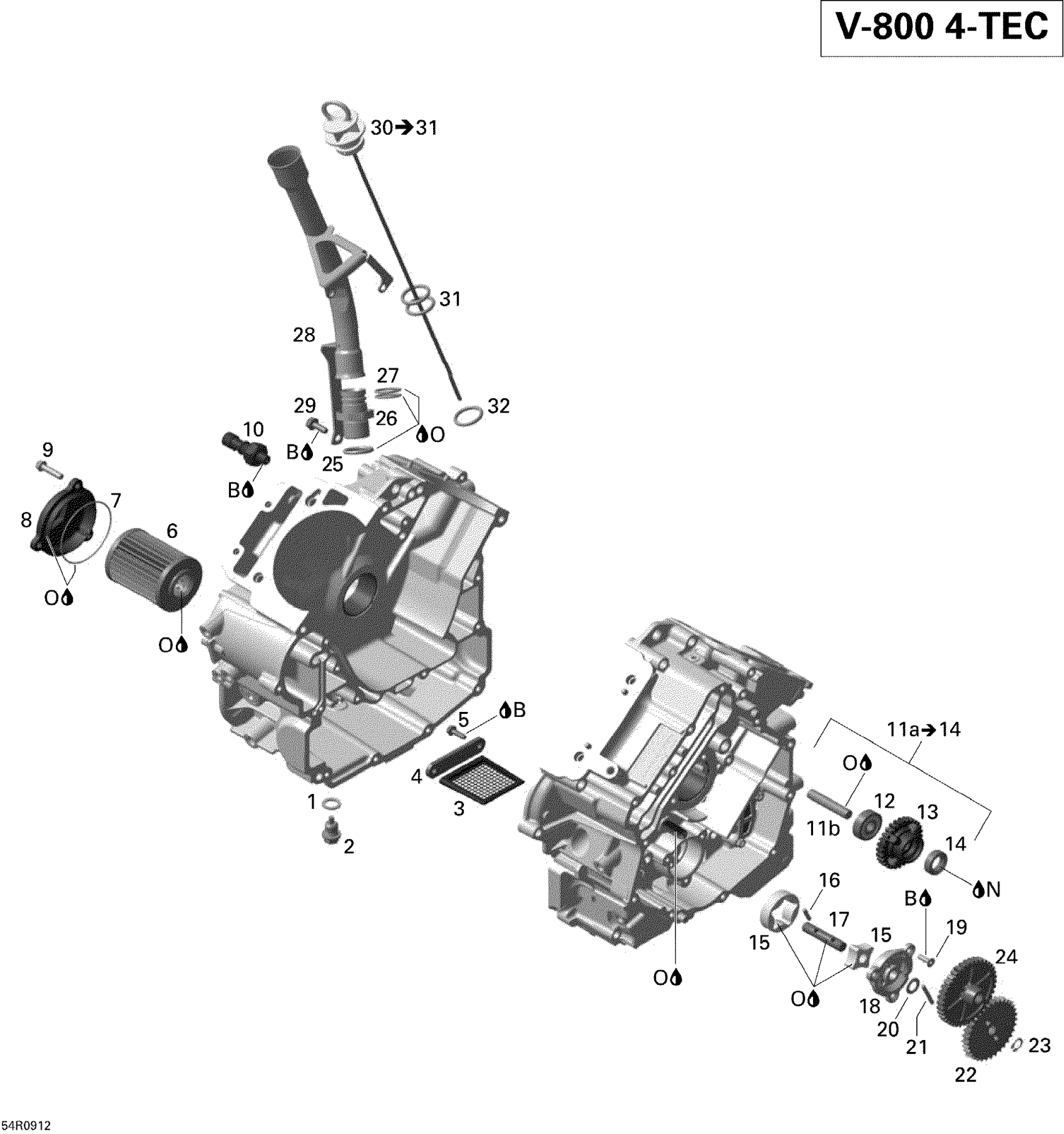

Ski-Doo Skandic SWT V800 YetiII, 2012 Engine Lubrication Diagram

#

Description
Price

1

Copper Washer

420250640

$0.81

2

Magnetic Drain Plug M12

420241787

Unavailable

3

Oil Sieve

420256322

Unavailable

4

Cover Sieve

420210661

Unavailable

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

Unavailable

7

O-Ring

420230923

$2.59

8

Oil Filter cover

420612135

$11.11

9

Torx Flange Screw M6 X 25

420641238

Unavailable

10

Oil Pressure Switch

420856537

Unavailable

11a

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

Unavailable

11b

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420430555

Unavailable

15

Oil Pump Rotor

420256348

$61.72

16

Needle Pin

420232731

$1.56

17

Oil Pump Shaft

420237059

Unavailable

18

Oil Pump Cover

420210646

Unavailable

19

Torx Head Screw M5 X 16

420640823

Unavailable

20

Thrust Washer

420827590

$3.86

21

Needle Pin

420232431

$3.67

22

Oil Pump Gear, 33 Teeth

420434320

Unavailable

23

Snap Ring

420245330

Unavailable

24

Idle Gear, 38 Teeth

420434300

Unavailable

25

O-Ring

420631640

Unavailable

26

Adaptor

420856610

Unavailable

27

O-Ring

420430373

Unavailable

28

OIL TUBE - Call your local BRP dealership

420856920

Unavailable

29

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

30

OIL LEVER GAUGE ASS'Y - Call your local BRP dealership | Includes 30 to 31

420956936

Unavailable

31

O-Ring

420631640

Unavailable

32

O-Ring

420631612

Unavailable

B

Loctite 243, 10 ml

293800060

$20.77

N

Grease, Super Lube

293550030

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable
