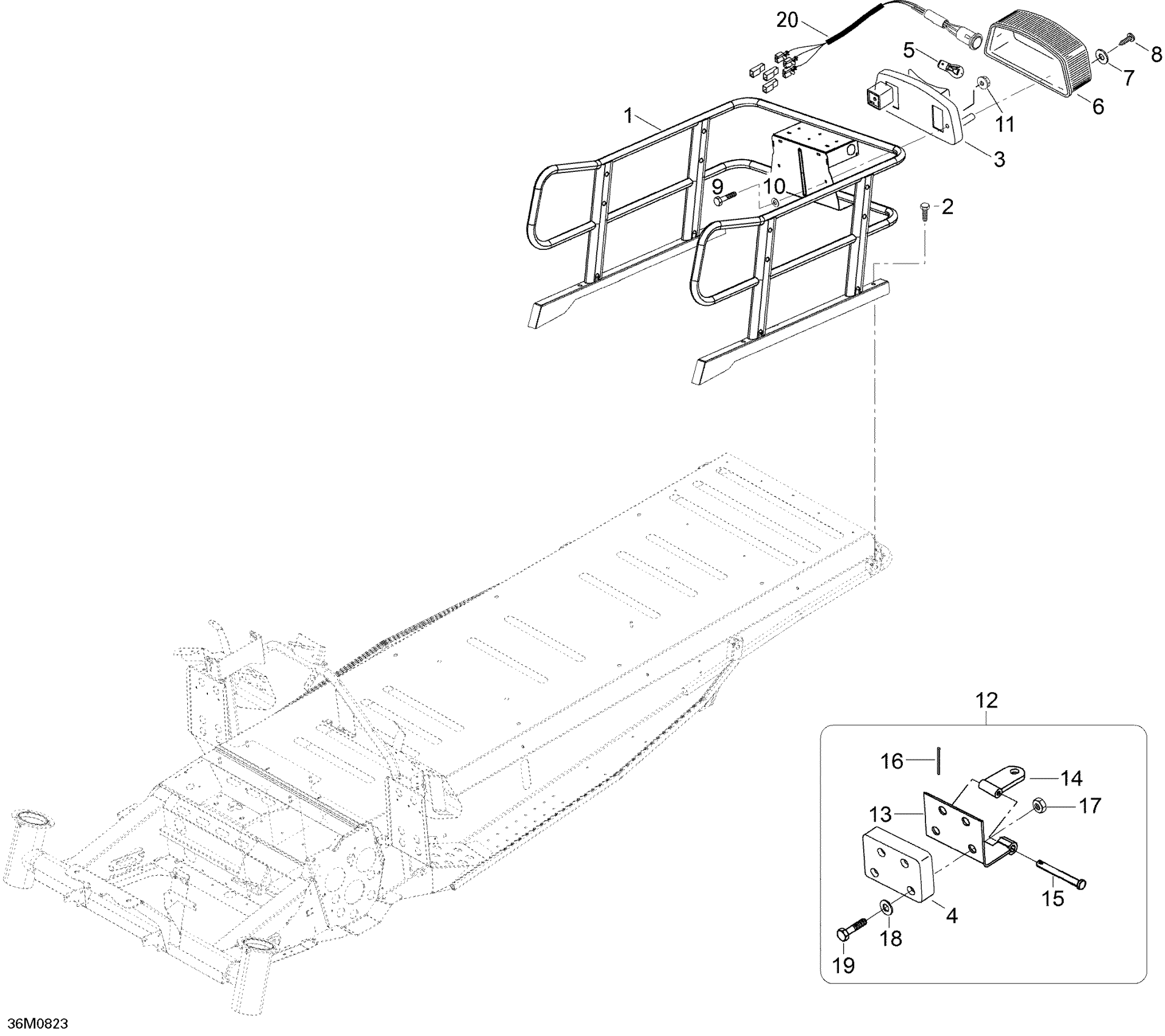

Ski-Doo Skandic SWT V-800, 2008 Luggage Rack Diagram
#
Description
Price
1
Portable Rack Ass'y | Includes 1 to 4
605255117A
Unavailable
2
Screw
M40316
Unavailable
3
LAMP HOUSING - Call your local BRP dealership
515175397
Unavailable
4
SPACER - Call your local BRP dealership
605351510
Unavailable
6
Lens
414513700
Unavailable
7
Washer - Call your local BRP dealership
414516400
Unavailable
8
Phillips Tapping Screw M3.9 X 25
209632540
Unavailable
9
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.
207764044
Unavailable
10
M8 Washer This part replaces M20077.
20077
Unavailable
11
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Fitting Plate | Model- North America This part replaces M5344151.
5344151
Unavailable
14
TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.
548745
Unavailable
15
PIN-RETAINER - Call your local BRP dealership | North America
560309200
Unavailable
17
Hex. Elastic Stop Nut M8
232581414
Unavailable
18
Flat Washer 8 mm
234081410
Unavailable
19
Hex. Screw M8 X 50
207085044
Unavailable
20
Taillight Harness
605354685
Unavailable
