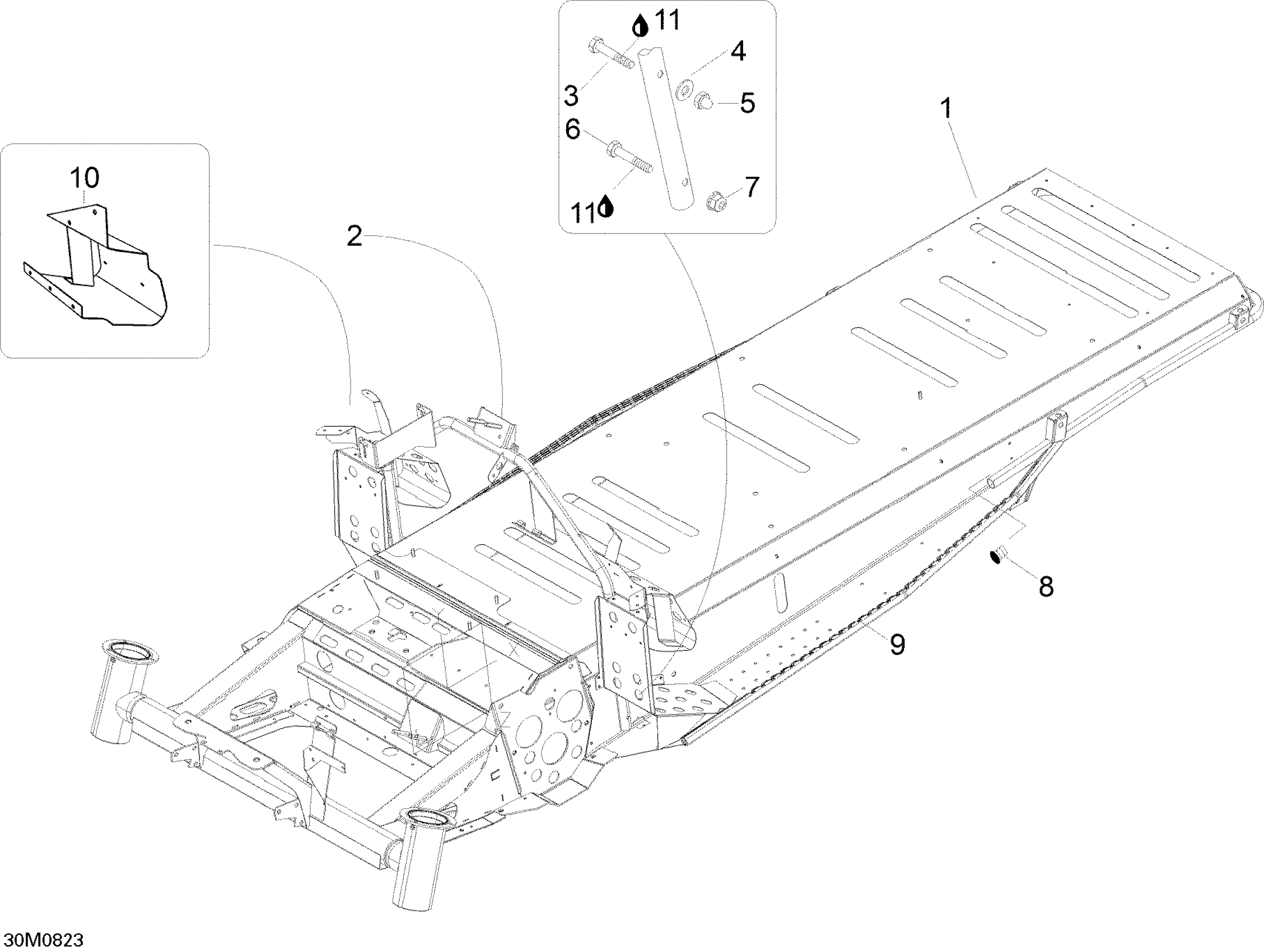

Ski-Doo Skandic SWT V-800, 2008 Frame Diagram

#

Description
Price

1

FRAME 69 YETI II -07 PAIN - Call your local BRP dealership | Includes 1 to 4 This part replaces 605152547.

605456268

Unavailable

2

Bar Support

605153465

Unavailable

3

Hex. Screw

M40003

Unavailable

4

Flat Washer 6 mm

234061410

Unavailable

5

Hex. Nut M6

232061414

$0.44

6

Hex. Screw M6 X 40

207064044

$1.48

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

8

Plug

M28210

Unavailable

9

RH REINFORCEMENT - Call your local BRP dealership

605253506

Unavailable

9

LH REINFORCEMENT - Call your local BRP dealership

605253507

Unavailable

10

RH TOE REST - Call your local BRP dealership

605253504

Unavailable

10

LH TOE REST - Call your local BRP dealership

605253505

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable
