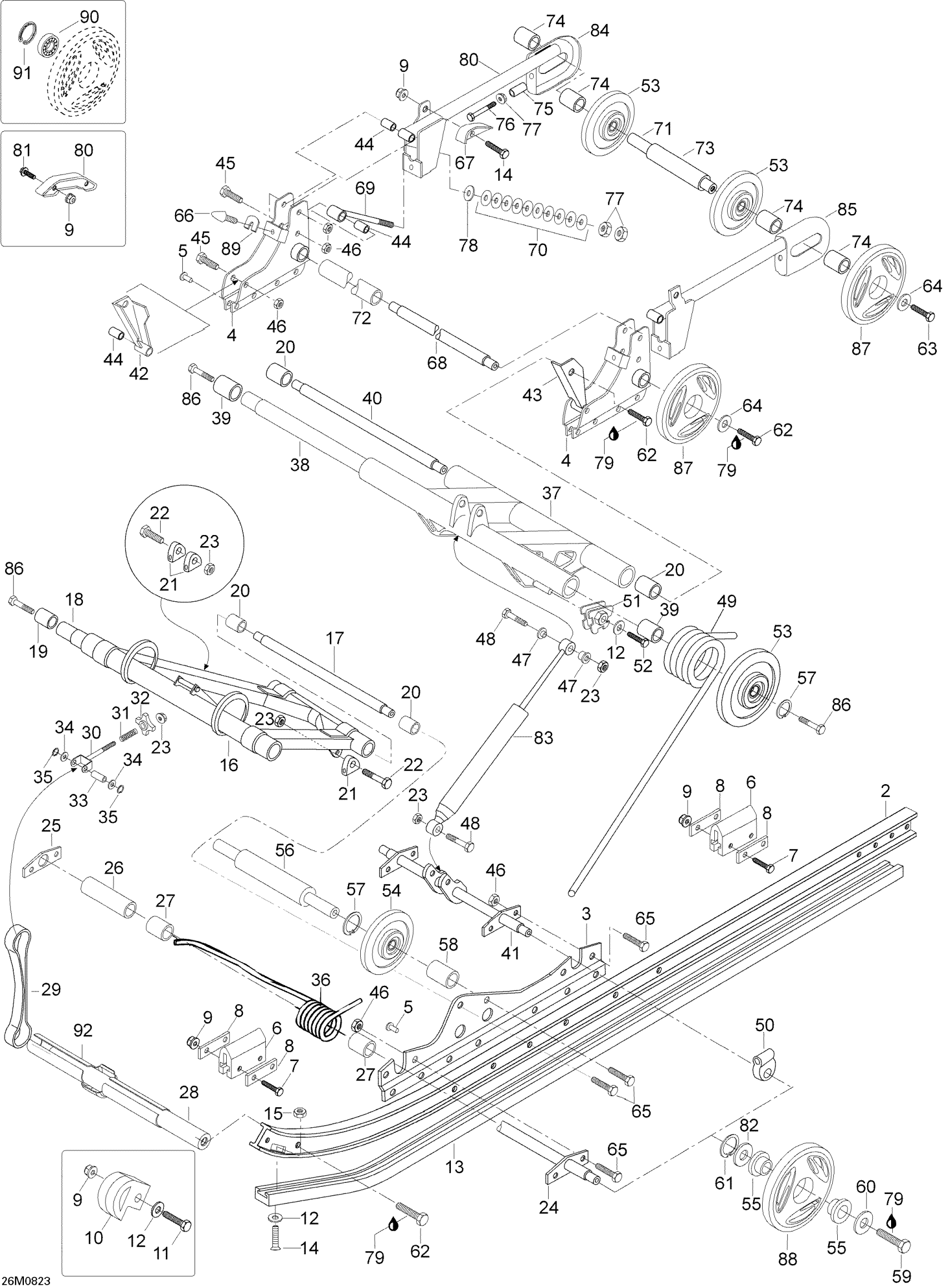

Ski-Doo Skandic SWT V-800, 2008 Rear Suspension Diagram
#
1
RH Runner Ass’Y | Includes 1 to 5
M5142866
Unavailable
1
LH RUNNER ASS?Y - Call your local BRP dealership | Includes 1 to 5
M5142865
Unavailable
2
RUNNER - Call your local BRP dealership This part replaces M5142864.
5142864
Unavailable
2
RUNNER - Call your local BRP dealership This part replaces M5142864.
5142864
Unavailable
3
Support Plate Rh This part replaces M5344811.
5344811
Unavailable
3
Support Plate Lh This part replaces M5344810.
5344810
Unavailable
4
Support For Rearaxle Rh This part replaces M539673.
539673
Unavailable
4
Support For Rearaxle Lh This part replaces M539672.
539672
Unavailable
5
RIVET - Call your local BRP dealership
M544212
Unavailable
6
RUBBER STOPPER - Call your local BRP dealership
570023100
Unavailable
8
Washer
M548387
Unavailable
9
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
10
Runner Protector
605348954
Unavailable
11
Hex. Screw M6 X 25
207162544
Unavailable
12
Flat Washer 6 mm
234061410
Unavailable
13
Runner Shoe
M549582
Unavailable
15
Elastic Stop Nut M6
232561414
Unavailable
16
Front Arm
605254837
Unavailable
17
Shaft This part replaces M549695.
549695
Unavailable
18
Boggie Shaft This part replaces M542794.
542794
Unavailable
19
Plastic Bushing This part replaces M541528.
541528
Unavailable
20
Shaft Sleeve This part replaces M542770.
542770
Unavailable
21
Spring Roller This part replaces M548799.
548799
Unavailable
24
Axle
M5345453
Unavailable
25
Plate Support
M548469
Unavailable
26
Sleeve
M5440313
Unavailable
27
Sleeve
M548841
Unavailable
28
Cross Shaft
M549718
Unavailable
29
STOPPER STRAP - Call your local BRP dealership
605454841
Unavailable
30
Bolt-Eye Adjuster
M5441643
Unavailable
32
ADJUSTER KNOB - Call your local BRP dealership
572034000
Unavailable
33
Pin
M5441645
Unavailable
34
Flat Washer 10 mm
234001410
Unavailable
35
Circlip
M41035
Unavailable
36
RH Front Arm Spring
605354840
Unavailable
36
LH Spring Front Arm
605354839
Unavailable
37
Bras Arr*Rear Arm This part replaces M5348213.
5348213
Unavailable
38
Shaft This part replaces M5347731.
5347731
Unavailable
39
Bearing This part replaces M31023.
31023
Unavailable
40
Swing shaft - Call your local BRP dealership This part replaces M549656.
549656
Unavailable
41
SHAFT - Call your local BRP dealership This part replaces M5345454.
5345454
Unavailable
42
Crank Arm R.H. This part replaces M5440350.
5440350
Unavailable
43
Crank Arm Lh This part replaces M5440349.
5440349
Unavailable
44
Spacer This part replaces M545758.
545758
Unavailable
45
Hex. Screw M8 X 45
207084544
Unavailable
46
Hex. Elastic Stop Nut M8
232581414
Unavailable
47
Shock Spacer - Call your local BRP dealership This part replaces M544417.
544417
Unavailable
48
Hex. Screw M10 X 1.5 X 50
207005044
Unavailable
49
Spring R.H. This part replaces M538806.
538806
Unavailable
49
Spring L.H. This part replaces M538805.
538805
Unavailable
50
SPRING SUPPORT - Call your local BRP dealership
M5442112
Unavailable
51
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
51
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
52
HEX. SCREW M6 X 10 - Call your local BRP dealership
207161044
Unavailable
53
Thin Wheel 165
503189478
Unavailable
54
Wheel 135
503191029
Unavailable
55
Cushion
503189534
Unavailable
56
Support Shaft
M549680
Unavailable
57
Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.
31001
Unavailable
58
Sleeve
M546577
Unavailable
59
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
61
Circlip 20X1.75 DIN471 This part replaces M31007.
293370056
Unavailable
63
Hex. Screw With Nylon Patch
M40050
Unavailable
66
Rubber Stopper - Call your local BRP dealership This part replaces M535455.
535455
Unavailable
67
Protector
M548262
Unavailable
68
Axle This part replaces M541816.
541816
Unavailable
69
BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.
5440377
Unavailable
70
Cup Spring This part replaces M25004.
25004
Unavailable
71
Axe *Shaft
M5341979
Unavailable
72
Sleeve
M541815
Unavailable
73
Sleeve
M5441980
Unavailable
74
Spacer This part replaces M5440422.
5440422
Unavailable
75
Spacer
605633002
Unavailable
76
SCREW - Call your local BRP dealership
M40239
Unavailable
78
Flat Washer 10 mm This part replaces M20011.
234002410
Unavailable
80
Sliding Pad
503192731
Unavailable
81
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.
207764044
Unavailable
82
SHIM - Call your local BRP dealership
M31091
Unavailable
83
SHOCK - Call your local BRP dealership
503189997
Unavailable
84
EXTENSION TUBE RH - Call your local BRP dealership
605251784
Unavailable
85
EXTENSION TUBE LH - Call your local BRP dealership
605251783
Unavailable
86
Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.
40314
$2.94
87
Wheel 165 mm Yellow
503190817
Unavailable
88
Wheel 135, Yellow
503190785
Unavailable
89
Adjustment Plate This part replaces M5440645.
5440645
Unavailable
90
Ball Bearing
293350115
Unavailable
91
Retaining Ring (1=10Pcs) This part replaces M31002.
31002
Unavailable
92
Retainer Strap
605355263
Unavailable
