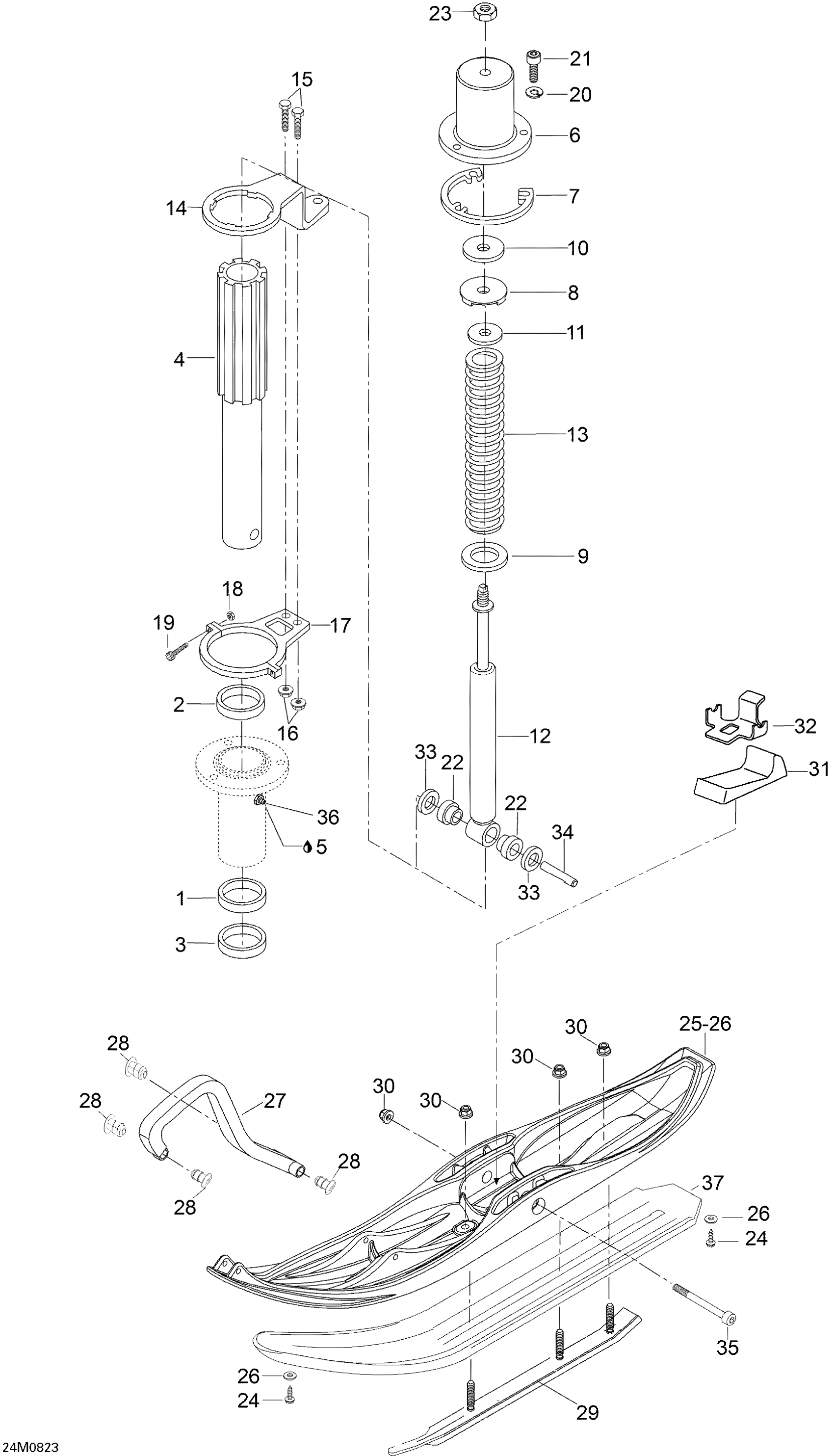

Ski-Doo Skandic SWT V-800, 2008 Front Suspension And Ski Diagram

#

Description
Price

1

Lower Cushion

414803200

Unavailable

2

Upper Cushion

414803100

Unavailable

3

Seal - Call your local BRP dealership This part replaces M316373.

316373

Unavailable

4

Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.

5245362

Unavailable

5

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

6

PAINTED COVER - Call your local BRP dealership

605249284

Unavailable

7

SPACER - Call your local BRP dealership

503145600

$14.28

8

Rubber Bumber

605354835

Unavailable

9

Washer This part replaces M549493.

549493

Unavailable

10

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

11

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

12

Front Gaz Shock

M23134

Unavailable

13

SPRING, BLACK - Call your local BRP dealership

605625001

Unavailable

14

RH STEERING ARM - Call your local BRP dealership

605353422

Unavailable

14

LH STEERING ARM - Call your local BRP dealership

605353423

Unavailable

15

Hex. Screw M6 X 25

207162544

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Support Ass'Y This part replaces M5344180.

619380015

Unavailable

18

Elastic Stop Nut M4

232541414

$0.48

19

Screw

M40146

Unavailable

20

Lock Washer 8 mm

234181401

Unavailable

21

Socket Head Screw M8 X 20

205082044

$1.09

22

Cushion

572034500

Unavailable

23

Elastic Locking Nut M10 X 1.5

233601416

$1.68

24

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

25

Ski | Europe models

505073034

Unavailable

26

Washer

20037

$2.05

27

Black, Handle

505070963

Unavailable

28

Retainer 17mm long

505071812

$4.43

29

CARBIDE SKI RUNNER ASS'Y - Call your local BRP dealership

619400006

Unavailable

30

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

31

Rubber Stopper

605348439

Unavailable

32

PLATE SUPPORT - Call your local BRP dealership

605348437

Unavailable

33

Bushing

605448594

Unavailable

34

Ski Axle

505073209

Unavailable

35

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$12.52

36

Grease Fitting

M34019

Unavailable

37

Ski Liner

605153964

Unavailable
