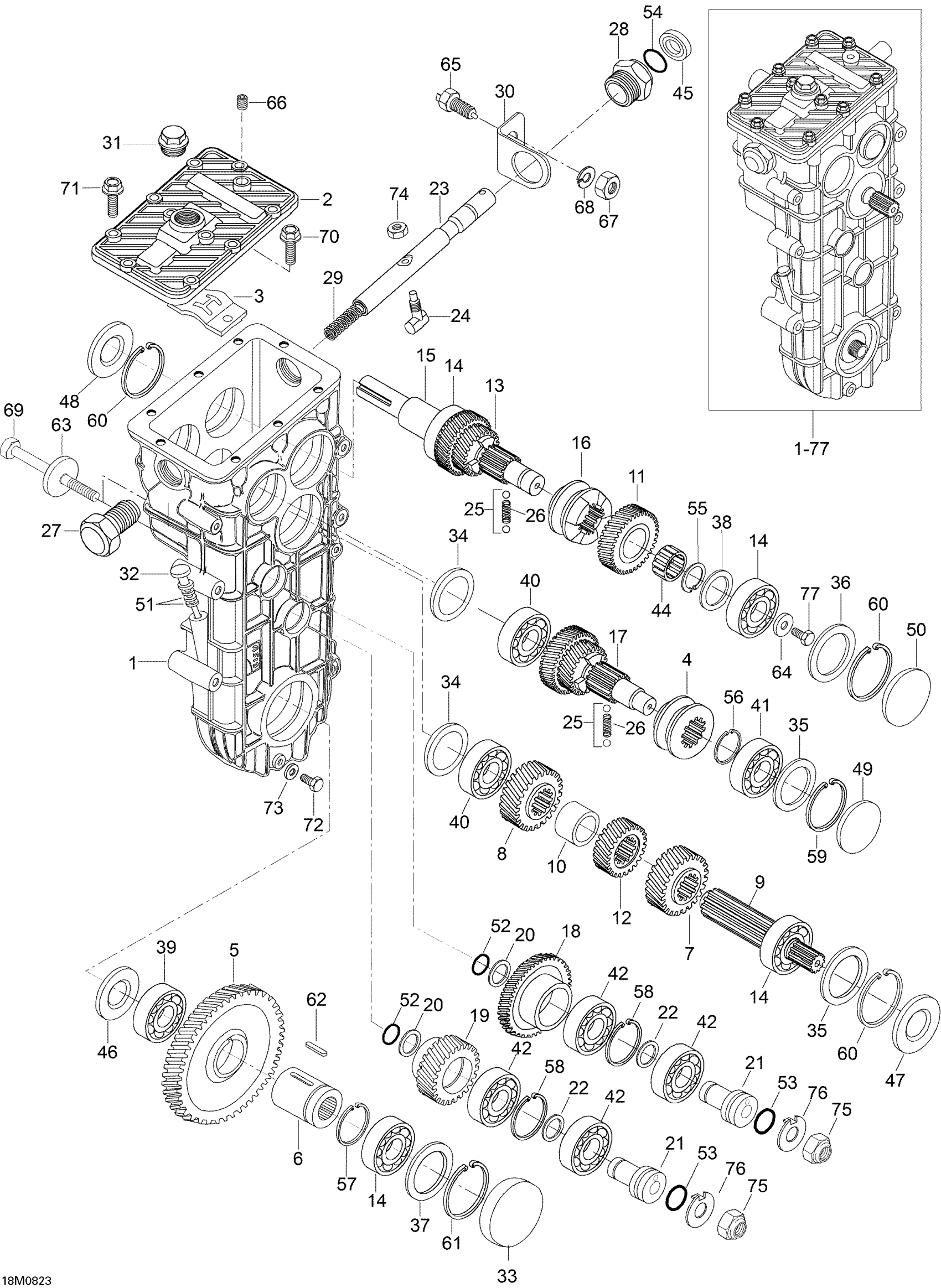

Ski-Doo Skandic SWT V-800, 2008 Transmission Diagram
#
—
GEAR BOX - Call your local BRP dealership | Includes 1 to 77
605612003
Unavailable
1
HOUSING - Call your local BRP dealership This part replaces M875156138.
875156138
Unavailable
2
COVER - Call your local BRP dealership
M875156043
Unavailable
3
H-SCHEME - Call your local BRP dealership This part replaces M875156111.
875156111
Unavailable
4
Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.
875156005
Unavailable
5
Sprocket 59 Th
M875156057
Unavailable
6
SHAFT - Call your local BRP dealership
M875156218
Unavailable
7
Sprocket 27 Th
M875156136
Unavailable
8
Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.
875156054
Unavailable
9
SHAFT - Call your local BRP dealership This part replaces M875156069.
875156069
Unavailable
10
SLEEVE - Call your local BRP dealership
M875156088
Unavailable
11
Sprocket 29 Th
M875156135
Unavailable
12
Sprocket 24 Th
M875156060
Unavailable
13
Variator Shaft | Includes 13 to 15
M875156155
Unavailable
14
BEARING 6305 - Call your local BRP dealership This part replaces M610063050.
610063050
Unavailable
15
Sleeve
M875156153
Unavailable
16
Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.
875156005
Unavailable
17
Shaft - Call your local BRP dealership This part replaces M875156068.
875156068
Unavailable
18
Sprocket 33 Th
M875156059
Unavailable
19
Sprocket 26 Th
M875156058
Unavailable
20
Washer - Call your local BRP dealership This part replaces M875156328.
875156328
Unavailable
21
SHAFT - Call your local BRP dealership
619230005
Unavailable
22
WASHER - Call your local BRP dealership
619230004
Unavailable
23
Shaft - Call your local BRP dealership This part replaces M875156072.
875156072
Unavailable
24
Pin - Call your local BRP dealership This part replaces M875156073.
875156073
Unavailable
25
Ball This part replaces M616810064.
616810064
Unavailable
26
Spring - Call your local BRP dealership This part replaces M875156105.
875156105
Unavailable
27
SLEEVE - Call your local BRP dealership This part replaces M875156076.
875156076
Unavailable
28
SLEEVE - Call your local BRP dealership This part replaces M875156077.
875156077
Unavailable
29
Spring This part replaces M875156078.
875156078
Unavailable
30
BRACKET - Call your local BRP dealership
M875156242
Unavailable
31
Oilplug - Call your local BRP dealership This part replaces M875156098.
875156098
Unavailable
32
DIPSTICK - Call your local BRP dealership This part replaces M875156278.
875156278
Unavailable
33
Plug - Call your local BRP dealership This part replaces M614100068.
614100068
Unavailable
34
Plug This part replaces M875152953.
875152953
Unavailable
35
ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.
617395568
Unavailable
36
Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.
617395065
Unavailable
37
ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.
617395568
Unavailable
38
WASHER-AXIAL - Call your local BRP dealership
M616092542
Unavailable
39
Bearing - Call your local BRP dealership This part replaces M6008.
6008
Unavailable
40
BEARING 6304 - Call your local BRP dealership This part replaces M610063044.
610063044
Unavailable
41
Bearing - Call your local BRP dealership This part replaces M6304.
6304
Unavailable
42
BEARING - Call your local BRP dealership This part replaces M612030303.
612030303
Unavailable
43
BALL BEARING - Call your local BRP dealership This part replaces M610060084.
610060084
Unavailable
44
Needle bearing This part replaces M611002529.
611002529
Unavailable
45
Oil seal - Call your local BRP dealership This part replaces M614102031.
614102031
Unavailable
46
Oil seal This part replaces M614102852.
614102852
Unavailable
47
Oil seal This part replaces M614102562.
614102562
Unavailable
48
Oil seal This part replaces M614103562.
614103562
Unavailable
49
Plug This part replaces M614100052.
614100052
Unavailable
50
PLUG - Call your local BRP dealership This part replaces M614100062.
614100062
Unavailable
51
O-ring - Call your local BRP dealership This part replaces M614600725.
614600725
Unavailable
52
O-RING - Call your local BRP dealership This part replaces M614601224.
614601224
Unavailable
53
O-ring This part replaces M614602431.
614602431
Unavailable
54
O-ring This part replaces M614601523.
614601523
Unavailable
55
CIRCLIP - Call your local BRP dealership This part replaces M617450025.
617450025
Unavailable
56
CIRCLIP - Call your local BRP dealership This part replaces M617450028.
617450028
Unavailable
57
CIRCLIP - Call your local BRP dealership
M617300040
Unavailable
58
Circlip - Call your local BRP dealership This part replaces M617330047.
617330047
Unavailable
59
LOCK RING - Call your local BRP dealership
M617330052G
Unavailable
60
CIRCLIP - Call your local BRP dealership This part replaces M617330062.
617330062
Unavailable
61
Snapring - Call your local BRP dealership This part replaces M617330068.
617330068
Unavailable
62
KEY - Call your local BRP dealership
M603345080
Unavailable
63
WASHER - Call your local BRP dealership
619230004
Unavailable
64
WASHER - Call your local BRP dealership
M875156112
Unavailable
65
Switch - Call your local BRP dealership This part replaces M654100225.
654100225
Unavailable
66
Threated Plug
M640025012S
Unavailable
67
NUT - Call your local BRP dealership
M33021
Unavailable
68
WASHER - Call your local BRP dealership
M20016
Unavailable
69
SCREW - Call your local BRP dealership
619230003
Unavailable
70
Hex. Screw
M40337
Unavailable
71
Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.
537001402
Unavailable
72
HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.
528801342
Unavailable
73
Gasket-ring - Call your local BRP dealership
615580812
Unavailable
74
NUT M10 - Call your local BRP dealership This part replaces M510611002.
510611002
Unavailable
75
NUT M10 - Call your local BRP dealership This part replaces M510600802.
510600802
Unavailable
76
Washer - Call your local BRP dealership This part replaces M875156327.
875156327
Unavailable
