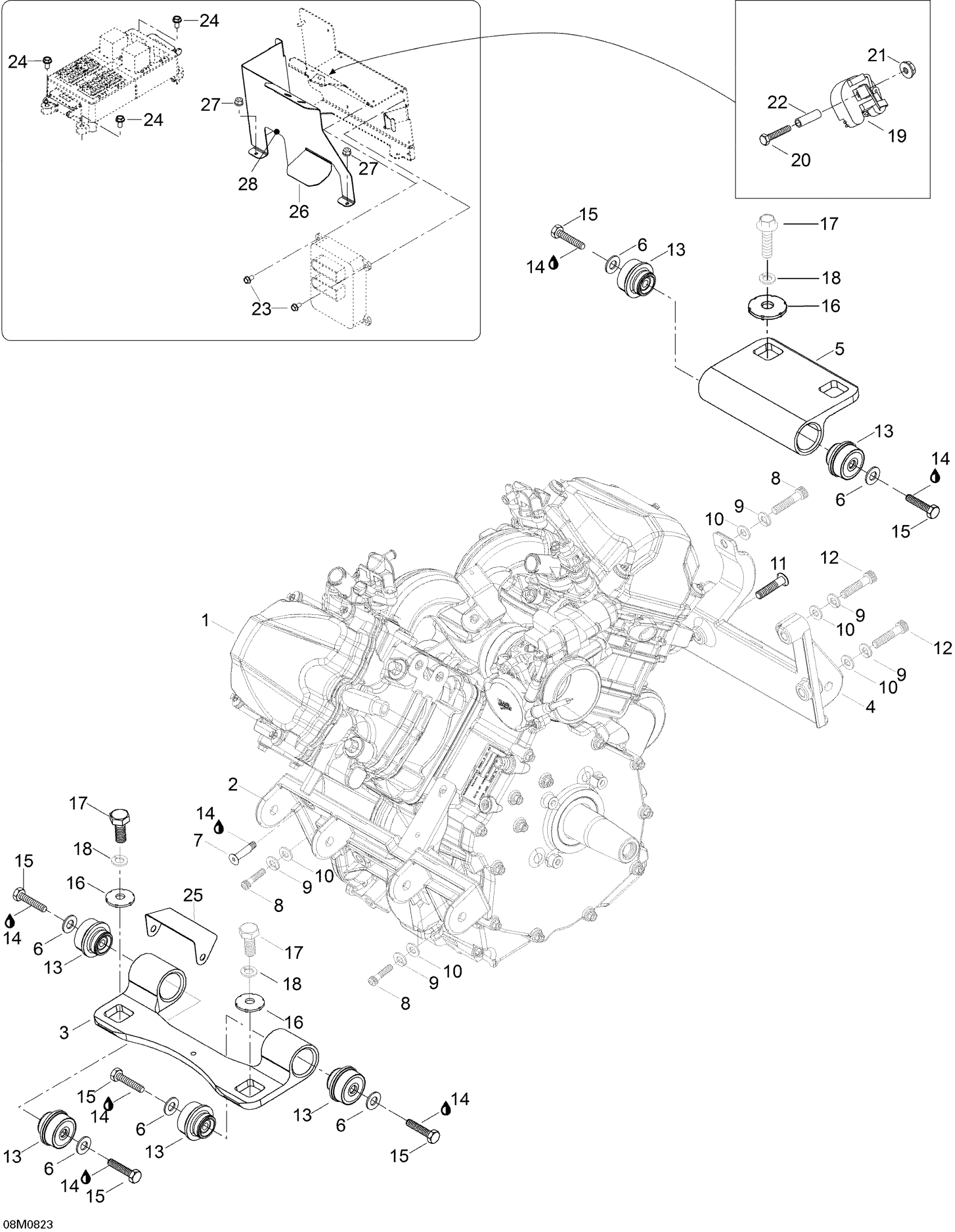

Ski-Doo Skandic SWT V-800, 2008 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FRONT ENGINE MOUNTING SUPPORT - Call your local BRP dealership

605253109

Unavailable

3

FRONT SUPPORT - Call your local BRP dealership

605353705

Unavailable

4

REAR ENGINE MOUNTING SUPPORT - Call your local BRP dealership

605253110

Unavailable

5

Rear Support

605353706

Unavailable

6

Flat Washer 10 mm

234001410

$1.12

7

Screw M8 X 20

M40839

Unavailable

8

Socket Head Screw M8 X 25

205082544

$1.06

9

Lock Washer 8 mm

234181401

$0.87

10

Flat Washer 8 mm

234081410

$0.79

11

SOCKET SCREW M8 X 25 - Call your local BRP dealership

605640012

Unavailable

12

Socket Head Screw M8 X 45

M40286

Unavailable

13

Rubber Mount

512059691

$43.25

14

Not Available As Spare Parts

XXX

Unavailable

15

Hex. Screw M10 X 30

207103044

$1.43

16

Lock Washer

512056700

$3.01

17

Hex. Screw M10 X 25

207102544

$1.27

18

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

19

Ignition Coil

278001546

$148.48

20

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

22

SPACER - Call your local BRP dealership

512059812

Unavailable

23

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

24

Hex. Forming Screw M5 X 16

210251650

$1.06

25

FRONT DEFLECTOR - Call your local BRP dealership

605354238

Unavailable

26

HEAT COVER - Call your local BRP dealership

605353299

Unavailable

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

28

Sealing Strip

M28413

Unavailable
