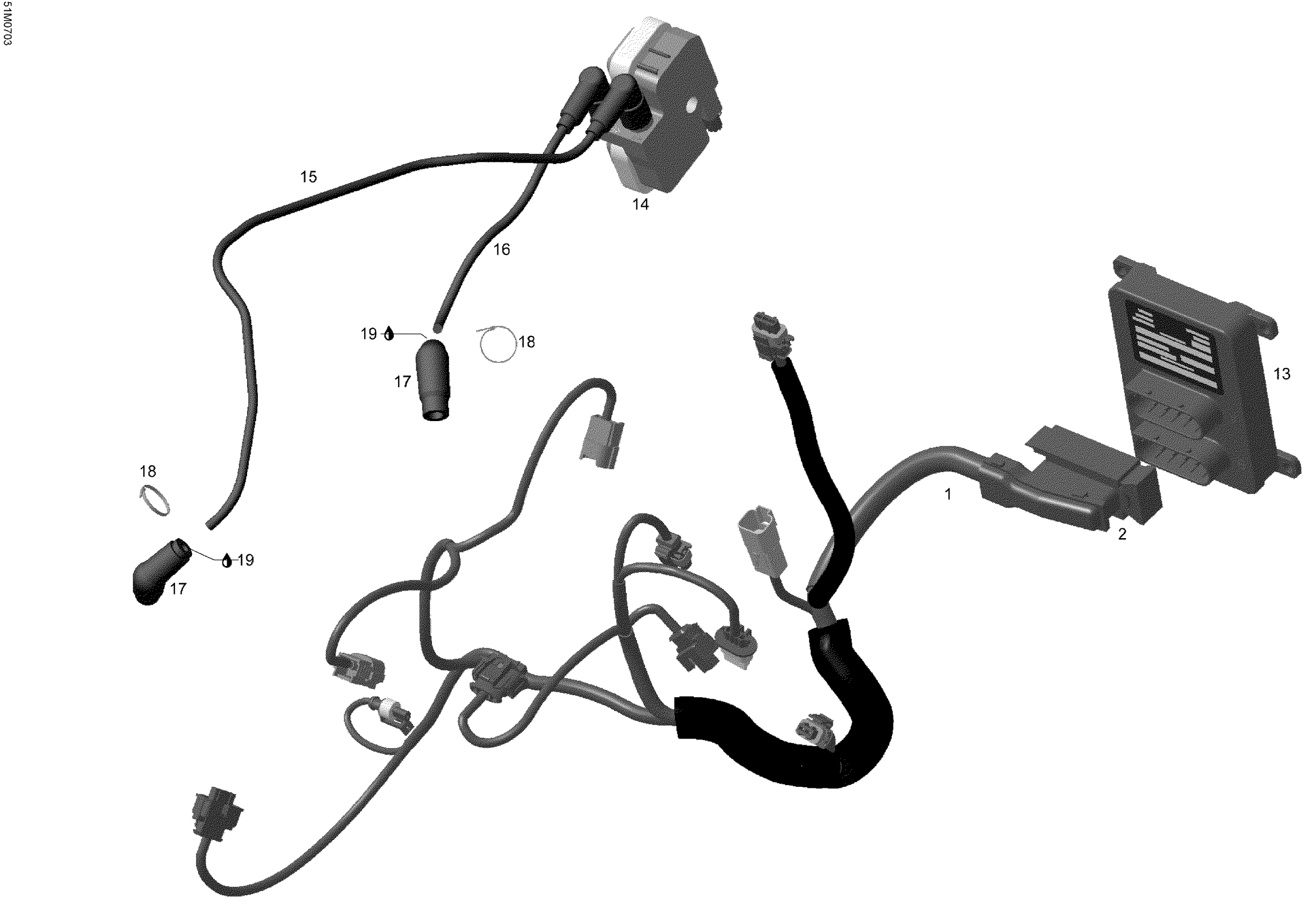

Ski-Doo Skandic SWT V-800, 2007 Engine Harness And Electronic Module Diagram

#

Description

Price

1

WIRING HARNESS - Call your local BRP dealership | Includes 1 to 13

420665243

Unavailable

2

ECM Connector

420664450

$26.89

13

Electronic Box

420665279

Unavailable

14

Ignition Coil

278001546

Unavailable

15

Spark Plug Cable, 790 mm, Rear

420665333

Unavailable

16

CABLE ASS?Y 245 MM PTO - Call your local BRP dealership

420664305

Unavailable

17

Spark Plug Connector

420265248

Unavailable

18

Tie Rap

420866710

$4.36

19

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
