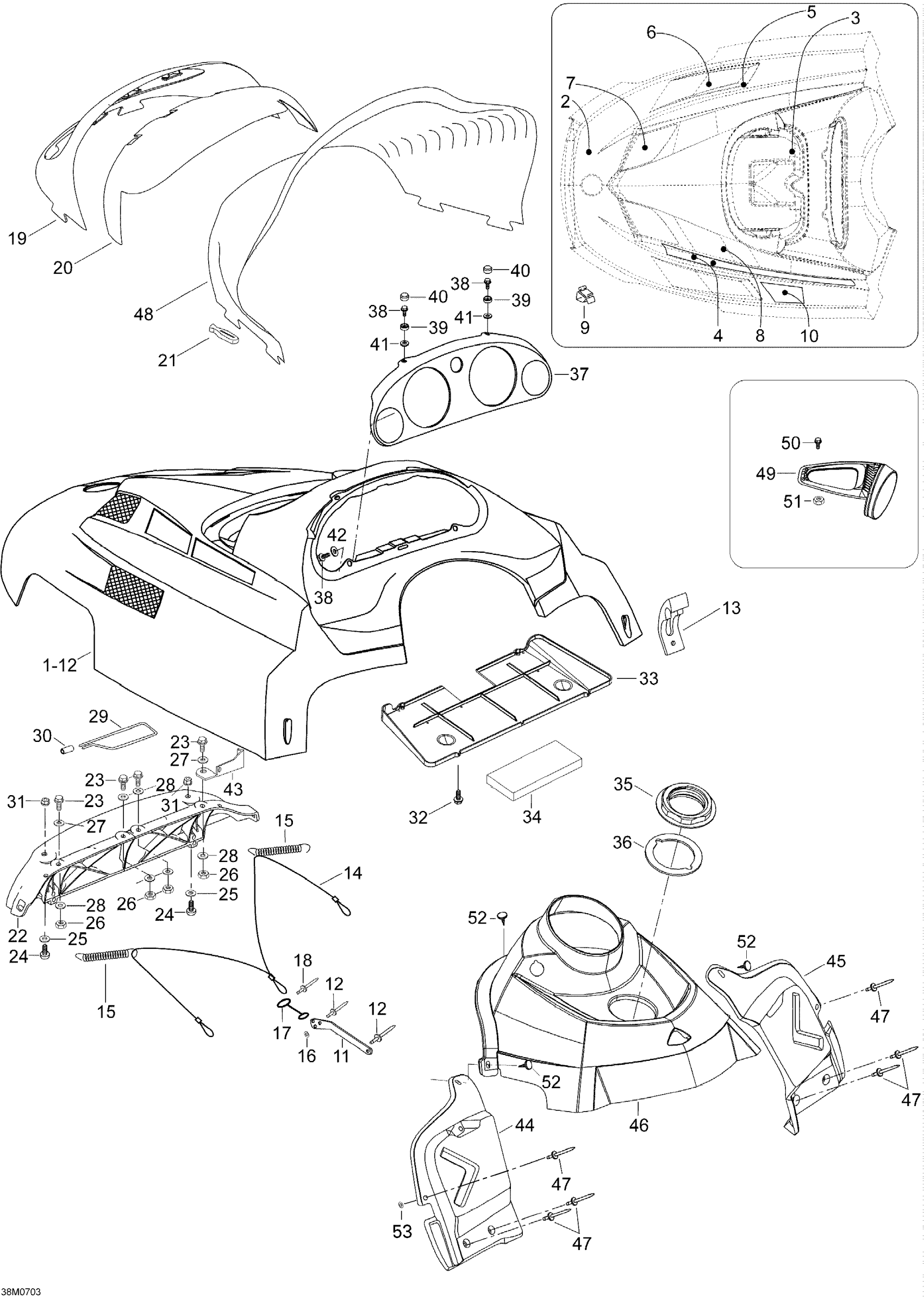

Ski-Doo Skandic SWT V-800, 2007 Hood Diagram

#

Description
Price

1

HOOD (YELLOW) - Call your local BRP dealership

605154503

Unavailable

2

HEAT PROTECTOR - Call your local BRP dealership

605350919

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

605350920

Unavailable

4

HEAT SHIELD - Call your local BRP dealership

605350921

Unavailable

5

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

6

LH UPPER GRILL - Call your local BRP dealership

605350923

Unavailable

6

RH UPPER GRILL - Call your local BRP dealership

605350924

Unavailable

7

LH LOWER GRILL - Call your local BRP dealership

605350925

Unavailable

7

RH LOWER GRILL - Call your local BRP dealership

605350926

Unavailable

8

LH GRILL - Call your local BRP dealership

605350927

Unavailable

9

Clip

414227300

$1.45

10

HEAT SHIELD - Call your local BRP dealership

605350929

Unavailable

11

BRACKET - Call your local BRP dealership

605452657

Unavailable

12

RIVET - Call your local BRP dealership

M36002

Unavailable

13

Hood Latch

517302152

Unavailable

14

Retainer Cable

605351372

Unavailable

15

Spring This part replaces M5442675.

5442675

Unavailable

16

Washer

M20001

Unavailable

17

Cable Keeper

M5442870

Unavailable

18

RIVET - Call your local BRP dealership

M36097

Unavailable

19

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

Unavailable

20

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

21

Windshield Latch

570023800

Unavailable

22

Hinge

517302631

Unavailable

23

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

24

Screw M6X20

M40381

Unavailable

25

Washer

20117

$5.22

26

Elastic Stop Nut M6

232561414

Unavailable

27

Flat Washer 6 mm

234061410

Unavailable

28

Flat Washer 6 mm

234062410

$0.64

29

Pin

605454779

Unavailable

30

BUSHING - Call your local BRP dealership

605454780

Unavailable

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

32

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

33

AIR INTAKE PLATE - Call your local BRP dealership

605151831

Unavailable

34

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

35

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

36

Gasket

M5447116

Unavailable

37

INDICATOR SUPPORT - Call your local BRP dealership

605354134

Unavailable

38

Screw Plastofast 4x10 - Call your local BRP dealership

M40611

Unavailable

39

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

40

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

41

Washer

20037

$2.05

42

WASHER - Call your local BRP dealership

M20039

Unavailable

43

LH HOOD SUPPORT - Call your local BRP dealership

605351463

Unavailable

43

RH HOOD SUPPORT - Call your local BRP dealership

605351464

Unavailable

44

LH CONSOLE - Call your local BRP dealership

605251384

Unavailable

45

RH CONSOLE - Call your local BRP dealership

605251385

Unavailable

46

CONSOLE, MIDDLE - Call your local BRP dealership

605251387

Unavailable

47

Black Rivet

36037

$1.48

48

Windshield

605152073

Unavailable

49

MIRROR KIT - Call your local BRP dealership

860200103

Unavailable

50

Forming Screw M5 x 16

250000676

$0.83

51

NUT M5 - Call your local BRP dealership

M33062

Unavailable

52

Black, Dart

414644300

$0.78

53

Washer 5,3 mm

20008

Unavailable
