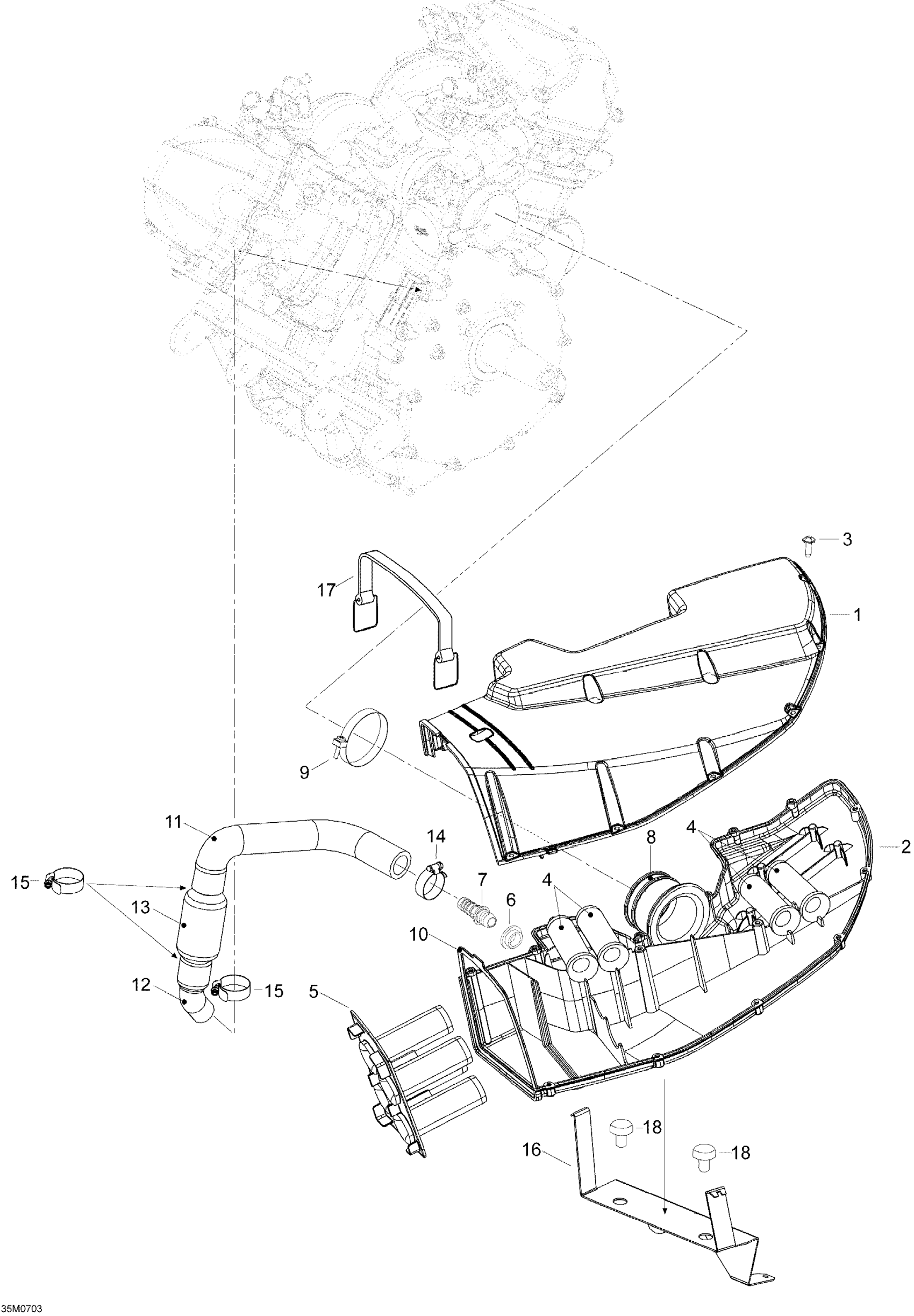

Ski-Doo Skandic SWT V-800, 2007 Air Intake System Diagram
#
Description
Price
1
AIR INTAKE COVER BOX - Call your local BRP dealership
605153098
Unavailable
2
AIR INTAKE BOTTOM BOX - Call your local BRP dealership
605153099
Unavailable
3
Screw Plastofast Mp 6 X 16 Pz
293700048
Unavailable
4
INLET TUBE - Call your local BRP dealership This part replaces M5444445.
5444445
Unavailable
5
VENTURY TUBE SET - Call your local BRP dealership
605253649
Unavailable
6
Insulating Ring
570023000
Unavailable
7
CONNECTOR - Call your local BRP dealership
605453846
Unavailable
8
INTAKE ADAPTATOR - Call your local BRP dealership
605353177
Unavailable
10
AIR FILTER - Call your local BRP dealership
605353517
Unavailable
11
HOSE - Call your local BRP dealership
605354128
Unavailable
12
HOSE - Call your local BRP dealership
605354127
Unavailable
13
Ventillation Chamber
605354126
Unavailable
14
CLAMP - Call your local BRP dealership
605627001
Unavailable
15
Clamp
605627004
Unavailable
16
INTAKE SILENCER SUPPORT - Call your local BRP dealership
605354778
Unavailable
17
Battery Strap This part replaces 515175955.
605356180
Unavailable
