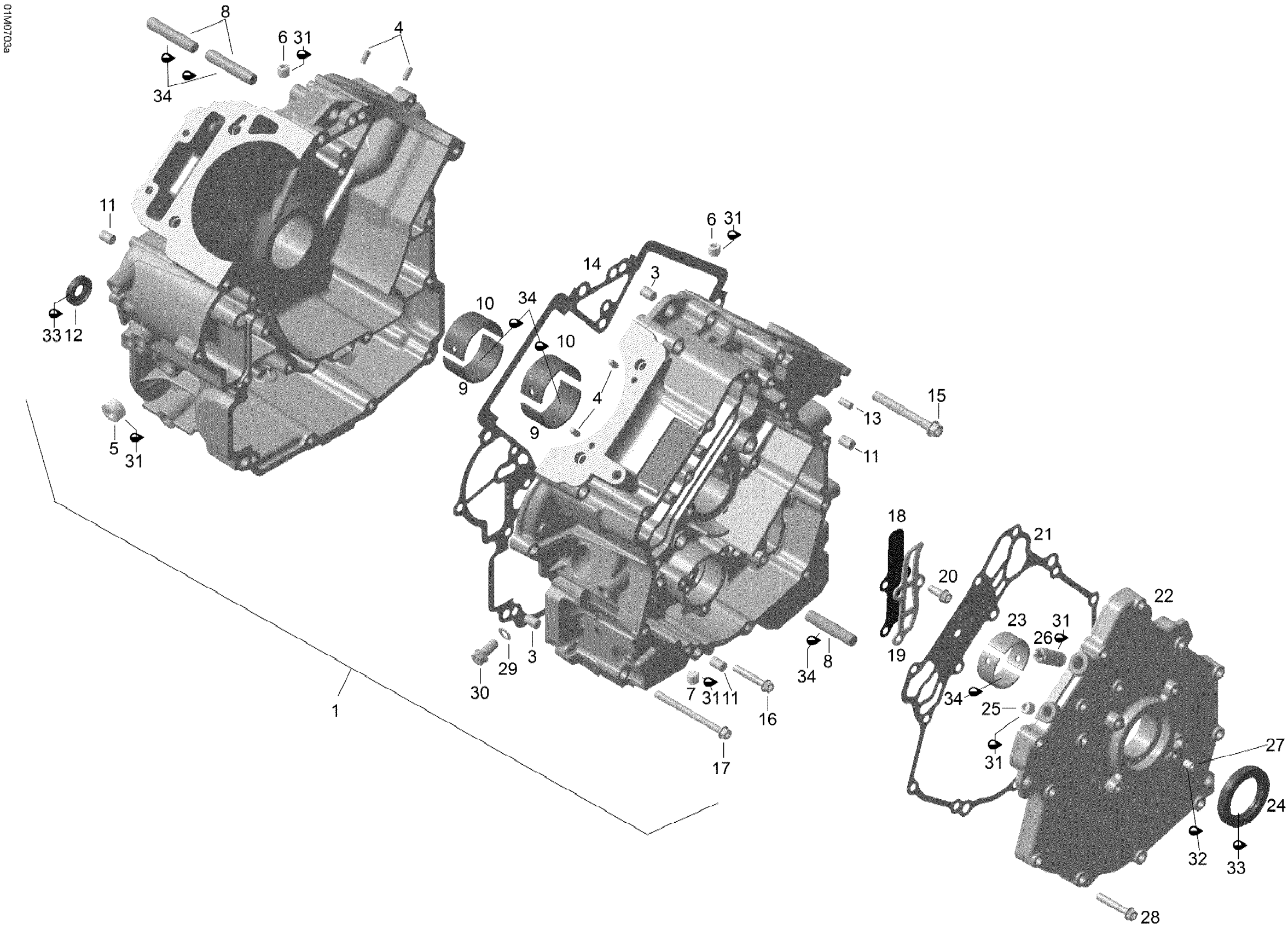

Ski-Doo Skandic SWT V-800, 2007 Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1a to 13

420684558

Unavailable

3

Center Pin 8 X 12

420632010

$3.52

4

Drive Pin 5 X 10

420929650

$1.54

5

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.01

6

Plug Screw M10 X 1

420641323

$13.18

7

PLUG SCREW M12 X 1.5 - Call your local BRP dealership

420840651

Unavailable

8

Location Pin 10 M6x50

420229302

$3.01

9

Plain Bearing

420233960

$22.36

10

Plain Bearing

420233965

$22.36

11

Center Pin 8 X 12

420632010

$3.52

12

Oil Seal

420650315

$11.04

13

Needle Pin

420932780

$7.01

14

Gasket

420651220

$33.55

15

Torx Flange Screw M8 X 65

420440402

$7.01

16

Torx Flange Screw M6 X 35

420440274

$0.96

17

Torx Flange Screw M6 X 75

420440657

$4.15

18

Reed Valve

420224721

$16.39

19

Reed Valve Stop

420224725

$10.76

20

Torx Flange Screw M6 X 16

420641048

$2.82

21

Gasket

420651211

$25.34

22

PTO COVER ASS'Y - Call your local BRP dealership | Includes 22 to 27

420611147

Unavailable

23

Bearing Sleeve

420233995

$19.37

24

Oil Seal

420631933

$26.09

25

Plug Screw M10 X 1

420641323

$13.18

26

Hose Nipple

420256332

$16.39

27

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

28

Torx Flange Screw M6 X 35

420440274

$0.96

29

Sealing Ring

420950141

$1.88

30

Torx Flange Screw M8 X 16

420440852

$3.88

31

Loctite 243, 10 ml

293800060

$21.49

32

Sealant Loctite 648

219703000

$41.01

33

Grease, Super Lube

293550030

$28.33

34

Synth Oil 4T 12x1

293600054

Unavailable
