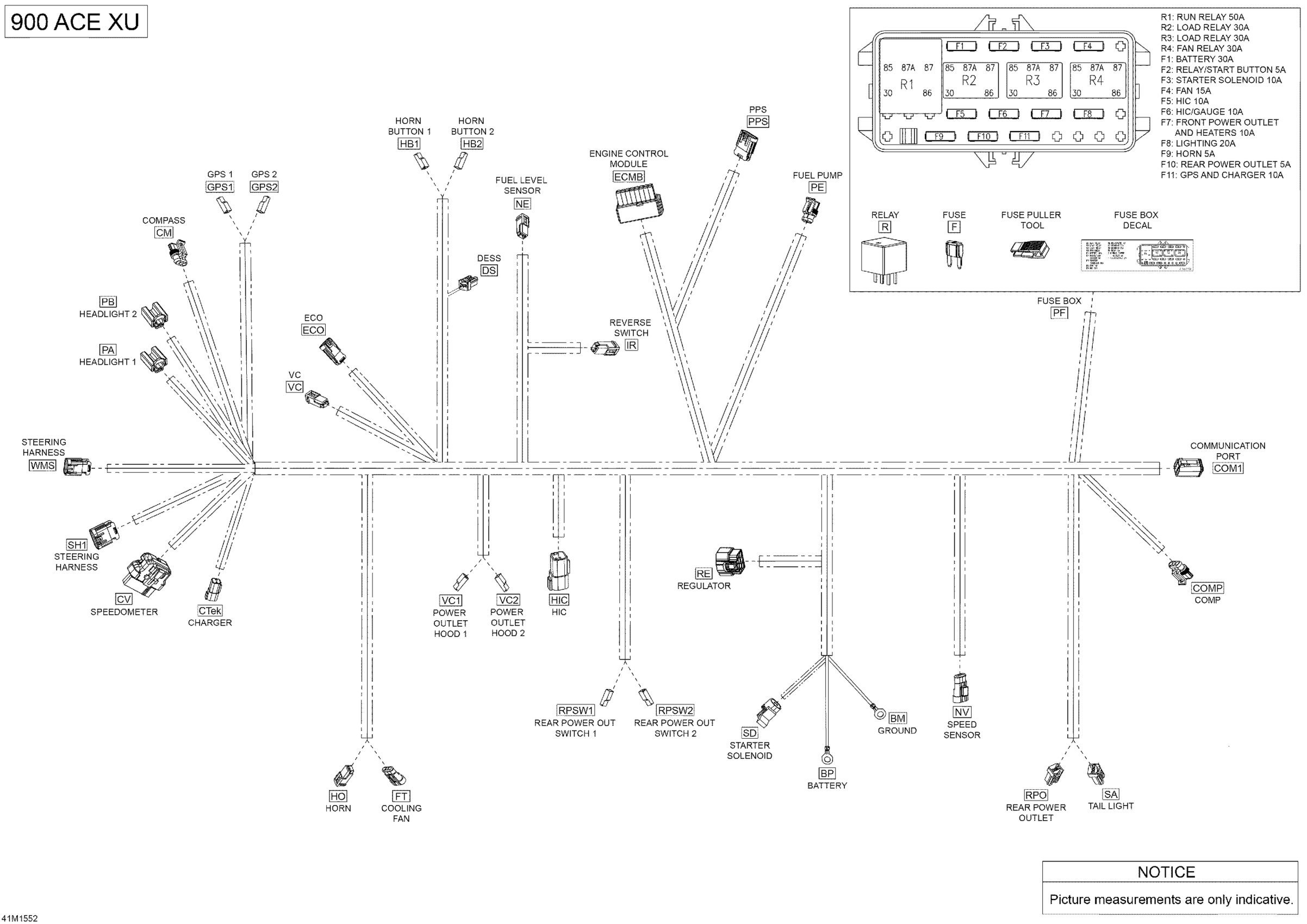

Ski-Doo Skandic SWT 900 ACE, 2015 Electrical Harness _41M1552 Diagram

#

Description
Price

1

Main Harness | Includes 1 To VMS

515177482

$609.67

2

Tubing 6 Mm 3000Mm Long

219704425

$12.75

2

Was 409901700 Tubing (9 mm)

219704399

$77.58

2

Tubing 10 MM 1000MM Long

219704407

$2.52

2

Was 409901800 Tubing (13 mm)

219704400

$10.79

2

Tubing 16 Mm 1000Mm Long

219704408

$7.15

2

Was 409901600 Tubing 19mm

219704398

$87.28

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

$14.57

3

Not Available As Spare Part - Friction Washer

Unavailable

BM

Open Barrel

278000992

$2.06

BP

Open Barrel

278000992

$2.06

CM

Female Housing, 3 Circuits

409209600

$34.30

CM

Female Terminal

278001014

$3.12

CM

Wire Seal

515176621

$6.79

CM

Tie Wrap 142 mm

293750002

$1.01

COM1

Male Housing, 6 Circuits

515175673

$12.66

COM1

Male Wedge, 6 Circuits

515175678

$4.96

COM1

Female Terminal

278000632

$1.94

COM1

Sealing Cap

293000052

$2.93

COMP

Female Housing, 3 Circuits

409209600

$34.30

COMP

Female Terminal

278001014

$3.12

COMP

Wire Seal

515176621

$6.79

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

CTek

Male Lock, 2 Circuits

278001672

$2.93

CTek

Male Terminal

515175568

$7.25

CV

Female Housing, 24 Circuits

515175801

$8.73

CV

Retainer Block

515175802

$10.34

CV

Wire Seal

515175803

$2.76

CV

BLOCK - Call your local BRP dealership

515175804

Unavailable

CV

LOCK - Call your local BRP dealership

515175805

Unavailable

CV

Female Terminal

515175806

$0.93

CV

Plug

515175812

$1.96

CV

Female Housing

710000399

$13.60

DS

Female Housing, 3 Circuits

515175495

$14.90

DS

Female Terminal

515175231

$4.00

ECMB

Molex Housing, 48 Circuits

710001967

$132.06

ECMB

Cover, 48 positions

710001591

$11.54

ECMB

Female Terminal

710001589

$2.06

ECMB

Female Terminal

710001590

$1.94

ECMB

Plug

710001592

$2.06

ECMB

Plug

710001593

$2.06

ECO

Housing

710002593

$9.57

F

Little Fuse, 5 Amperes

710000742

$8.31

F

Little Fuse, 7.5 Amperes

710000743

$7.78

F

Little Fuse, 10 Amperes

710000744

$8.31

F

Little Fuse, 15 Ampere

710000745

$7.78

F

Little Fuse, 20 Amperes

710000746

$7.78

F

Little Fuse, 30 Amperes

710000747

$7.78

FT

Female Housing, 2 Circuits

278000217

$8.72

FT

Male Terminal | XT Models

278000222

$2.93

FT

Male Terminal

409004300

$5.30

FT

Wire Seal

278001065

$5.85

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.25

GPS1

Female Terminal

409010100

$5.30

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.25

GPS2

Female Terminal

409010100

$5.30

HB1

Female Terminal Housing, 1 Circuit

409010400

$7.25

HB1

Female Terminal

409010100

$5.30

HB2

Female Terminal Housing, 1 Circuit

409010400

$7.25

HB2

Female Terminal

409010100

$5.30

HIC

Male Connector, 4 Circuits | CE

278000739

$17.13

HIC

Female Terminal

278000632

$1.94

HIC

Male Lock, 4 Circuits | CE

278000738

$2.82

HIC

Sealing Cap

293000052

$2.93

HO

Female Housing, 2 Circuits

515175658

$14.90

HO

Female Terminal

515175231

$4.00

IR

Female Terminal Housing, 2 Circuits

515176296

$4.96

IR

Female Terminal

515175231

$4.00

NE

Male Terminal Housing, 2 Circuits

515175654

$7.25

NE

Male Terminal

515175232

$1.45

NV

Housing

710000568

$10.51

NV

Male Terminal

515176164

$6.24

NV

Clip

710000992

$3.88

NV

Wire Seal

515176621

$6.79

PA

Female Housing

515176908

$11.69

PA

Terminal

515176909

$2.06

PB

Female Housing

515176908

$11.69

PB

Terminal

515176909

$2.06

PE

Housing

710001132

$9.31

PE

Female Terminal

710001134

$5.85

PE

Lock

710001133

$4.00

PE

Seal

710000643

$4.00

PF

Fuse Cover

710001026

$20.12

PF

Fuse Box Base Ass´y

415129856

$47.73

PF

Female Terminal

710000836

$5.30

PF

Female Terminal

710000837

$4.96

PF

Wire Seal

278000999

$2.93

PF

Seal

415128501

$1.73

PF

Cap

710000840

$5.33

PF

Fuse Puller

710000781

$8.29

PF

Foam

278002172

$5.33

PF

Decal, Fuse Box

516006778

$15.64

PPS

Not Available As Spare Part - Friction Washer

Unavailable

R

Relay, 50 AMP

515176775

$13.45

R

Relay, 30 AMP

515176774

$18.63

RE

Female Housing, 3 Circuits

710000879

$24.60

RE

Female Terminal

710000877

$7.25

RE

Cap

710000882

$10.55

RE

Seal

710000881

$16.39

RPO

Male Housing, 3 Circuits

515175494

$14.90

RPO

Male Terminal

515175232

$1.45

RPSW1

Female Terminal Housing, 1 Circuit

409010400

$7.25

RPSW1

Female Terminal

409010100

$5.30

RPSW2

Female Terminal Housing, 1 Circuit

409010400

$7.25

RPSW2

Female Terminal

409010100

$5.30

SA

Female Housing, 3 Circuits

515175495

$14.90

SA

Female Terminal

515175231

$4.00

SD

Female Housing, 2 Circuits

515177192

$7.25

SD

Female Terminal

278001114

$2.93

SH1

Housing, Packard

710001929

$10.51

VC

Female Housing, 2 Circuits

515175658

$14.90

VC

Female Terminal

515175231

$4.00

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.25

VC1

Female Terminal

409010100

$5.30

VC2

Female Terminal Housing, 1 Circuit

409010400

$7.25

VC2

Female Terminal

409010100

$5.30

WMS

Housing

710001927

$8.31
