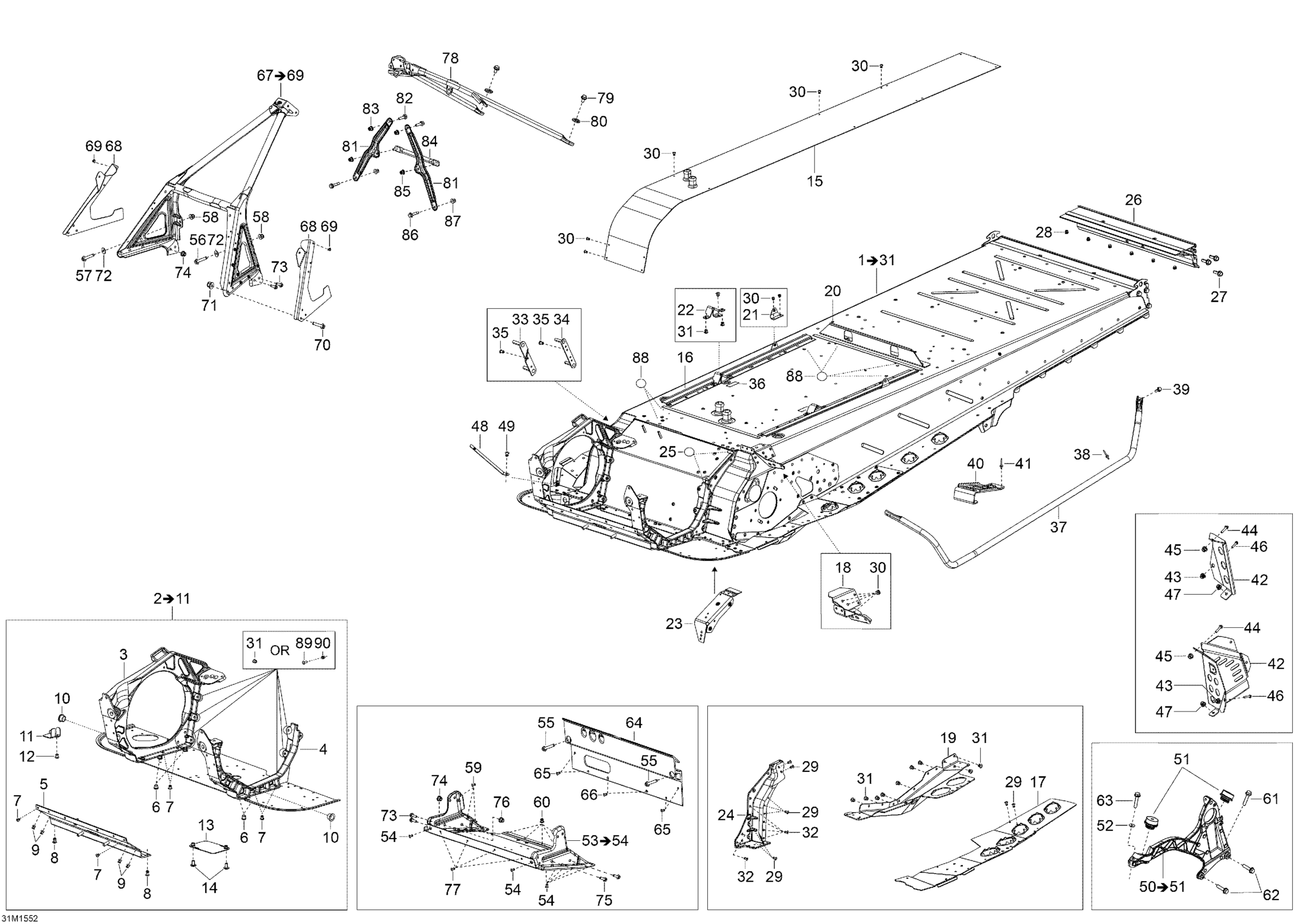

Ski-Doo Skandic SWT 900 ACE, 2015 Frame _31M1552 Diagram

#

Description
Price

1

Frame | Includes 1 To 31

518328207

Unavailable

2

MODULE E - Call your local BRP dealership | Includes 2 To 14

518328188

Unavailable

3

RH Side Member

518326328

$259.97

4

LH Side Member

518326330

$259.97

5

Front Member

518326198

$59.97

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Leg Bushing

505072690

Unavailable

11

Muffler Support

518327983

$18.43

12

Rivet Hucklok

293150163

$2.82

13

Oil Plate | Not Shown

518328317

$10.71

14

Torx Truss Screw M6 X 12

250000767

$1.66

15

Tunnel Radiator | Includes 10p to 10q

509000976

$673.82

16

Fastening rail

518326107

$15.35

17

LH FOOTREST - Call your local BRP dealership

518328440

Unavailable

17

RH Footrest

518328441

Unavailable

18

Fastening Bracket

518327884

$25.35

19

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

TUNNEL SUPPORT - Call your local BRP dealership

518327003

$26.12

21

Seat Box Bracket

518327457

$29.97

22

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

$40.74

22

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

$40.74

23

CLINCH NUT PLATE - Call your local BRP dealership

518328096

$44.58

24

LH Frame Corner

518325643

$52.28

24

RH Frame Corner

518325644

$52.28

25

Adhesive Patch

518325560

Unavailable

26

Rear Profile

518328749

$217.66

27

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

28

Hemlock Rivet, 6.4 mm

293150174

$6.43

29

Avex Rivet

390909100

$0.29

30

Avex Rivet

390909200

Unavailable

31

Hemlock Rivet, 6.5 mm

293150119

$4.00

32

Rivet

293150183

$2.06

33

Gearbox Front Plate

518326123

Unavailable

34

Gearbox Rear Plate

518326124

Unavailable

35

Pop Rivet 3/16"

390402200

$0.26

36

RUBBER COVER - Call your local BRP dealership

518326357

$9.69

37

LH Footboard Support Tube

518327595

$81.51

37

RH Footboard Support Tube

518327596

$81.51

38

Avex Rivet

390909100

$0.29

39

Hex. Flange Screw M6 x 20

207662056

$0.98

40

Footrest

520000492

$18.43

41

Avex Rivet

390909100

$0.29

42

TOE HOOK LH BLACK 69 LTS - Call your local BRP dealership This part replaces 518328567.

518328568

Unavailable

42

RH Toe Hold

518328570

Unavailable

43

Clinch Nut M6 Hexsert

605636003

$4.12

44

Hex. Flange Screw M6 x 20

207662056

$0.98

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

46

Torx Truss Screw M6 X 16

250000721

Unavailable

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

48

SPRING BRACKET - Call your local BRP dealership

514054828

$9.42

49

Avex Rivet

390909200

Unavailable

50

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

Unavailable

51

Vibration Damper

512061516

$57.66

52

Conical Spring Washer M8

234281474

$1.25

53

S Module | Includes 300 to 300a

518326213

Unavailable

54

Avex Rivet

390909200

Unavailable

55

Hexagonal Head Screw

210262050

$1.74

56

Hex. Flange Screw M6 X 25

207662544

Unavailable

57

Hex. Flange Screw M6 X 25

207662544

Unavailable

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

59

Avex Rivet

390909100

$0.29

60

Avex Rivet

390909200

Unavailable

61

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

62

Hex. Flange Screw M8 X 35

250000986

$1.74

63

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

64

Engine Support

518326140

$116.12

65

Avex Rivet

390909100

$0.29

66

Hemlock Rivet, 6.5 mm

293150119

$4.00

67

Front Member Ass'y | Includes 700 to 700d

518327004

Unavailable

68

LH Bumper Fastener

502007077

Unavailable

68

RH Bumper Fastener

502007078

Unavailable

69

Avex Rivet

390909200

Unavailable

70

Hex. Flange Screw M6 X 20

207662044

Unavailable

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

72

Flat Washer

224061201

Unavailable

73

Hex. Flange Screw M6 X 20

207662044

Unavailable

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

75

Hex. Flange Screw M6 X 20

207662044

Unavailable

76

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

77

Avex Rivet

390909200

Unavailable

78

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

79

Hex. Flange Screw M6 x 20

207662056

$0.98

80

Not Available As Spare Part - Friction Washer

Unavailable

81

Upper Column Support

518326848

$13.06

82

Hex. Flange Screw M6 x 20

207662056

$0.98

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

84

Center Column Support

518326355

$20.74

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

86

Hex. Flange Screw M6 X 25

207662556

Unavailable

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

88

Adhesive Patch

518325560

Unavailable

89

Hex. Flange Screw M6 X 20

207662044

Unavailable

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
