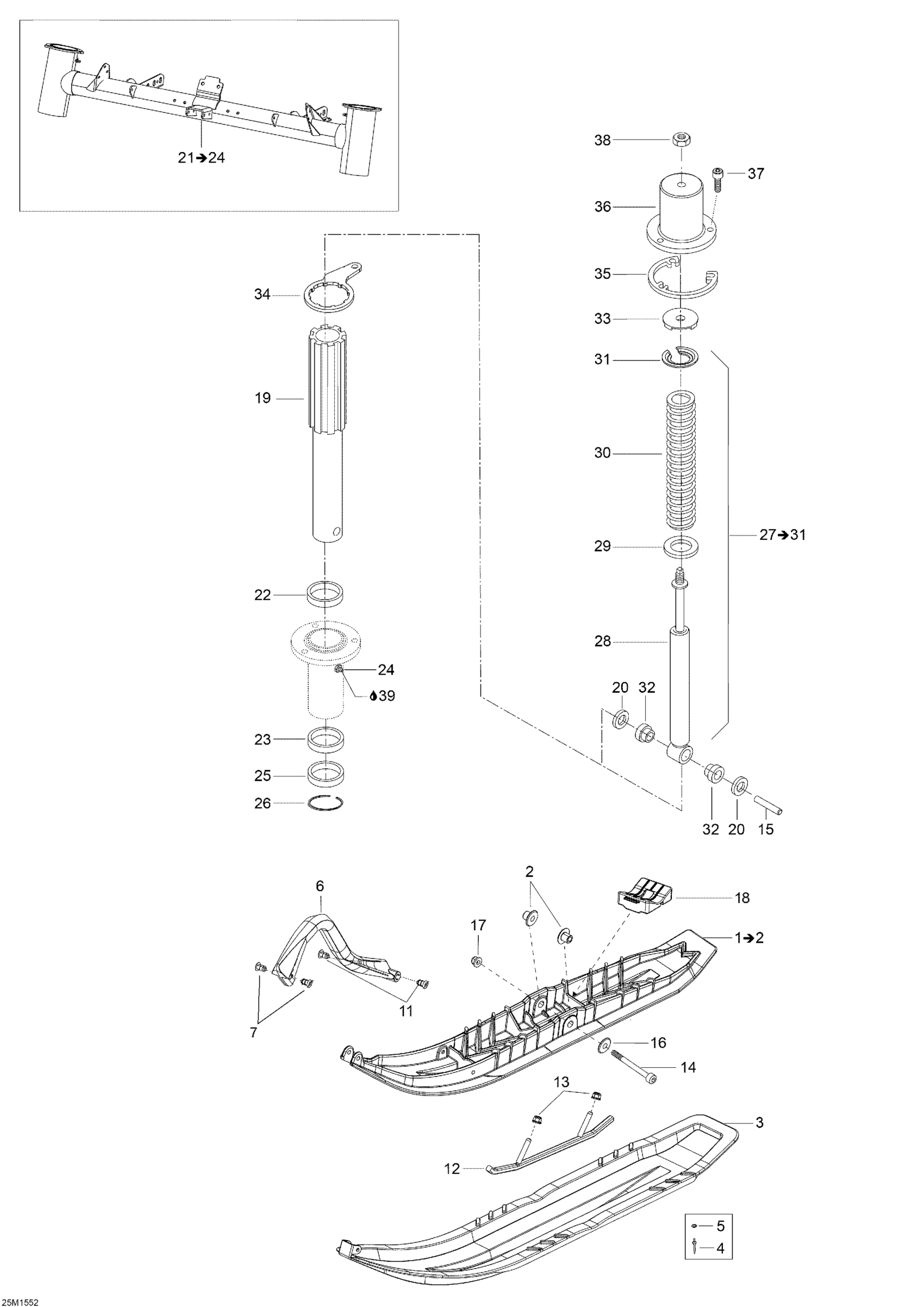

Ski-Doo Skandic SWT 900 ACE, 2015 Front Suspension _25M1552 Diagram

#

Description
Price

1

Black, Ski

505073227

$170.12

2

Ski Bushing

505071781

$14.90

3

DS Liner

505073448

$91.01

4

Pop Rivet

293150206

$2.00

5

Flat Washer 6 mm

234061410

$1.19

6

Black, Handle

505072976

$34.30

7

Retainer 17mm long

505071812

$4.30

11

Retainer 23mm Long

505072133

$4.88

12

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

13

Hex. Flange Elastic Nut M8

233281414

$1.31

14

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

15

Ski Axle

505073209

$12.31

16

Washer

732900049

$0.55

17

Hex. Flange Elastic Nut M10

233201414

$1.45

18

Ski Stopper

505072594

$17.13

19

Ski Leg

505073200

$281.31

20

Spacer

505072579

$7.36

21

Module Ass'y | Includes 400 to 400d

505073967

$484.30

22

Upper Cushion

414803100

$8.16

23

Lower Cushion

414803200

$11.36

24

Grease Fitting

408200700

$3.21

25

Seal Oil

505072696

$44.75

26

Circlip

505072698

$12.51

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Shock

505073046

$152.96

29

Washer

505072578

$12.18

30

Black, Spring

505072745

$64.90

31

Spring Stopper

505072619

$9.93

32

Cushion

572034500

$9.69

33

Rubber Bumber

605354835

$13.54

34

Steering Arm

505073823

$88.03

35

Spacer

505073983

$23.85

36

Suspension Cover LH

505072874

$125.34

36

Suspension Cover RH

505072875

$125.34

37

Socket Head Screw M8 X 20

205082044

$1.06

38

Hex. Flange Elastic Nut M10

233201414

$1.45

39

Not Available As Spare Part - Friction Washer

Unavailable
