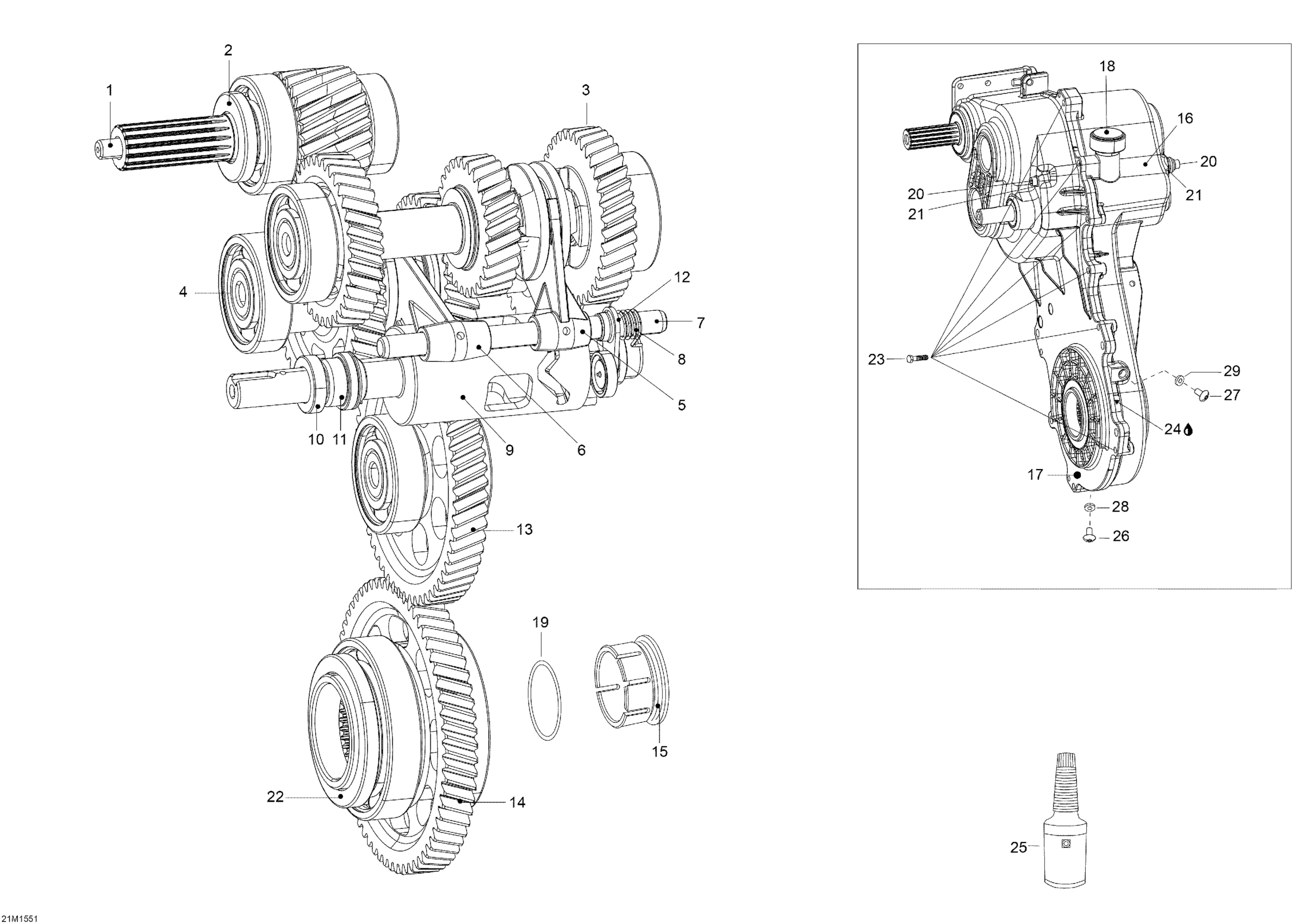

Ski-Doo Skandic SWT 900 ACE, 2015 Transmission _21M1552 Diagram

#

Description
Price

-

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2,089.99

1

Counter Shaft Ass'y | Gear Box 2.30

619230044

$575.34

2

Oil seal

619230010

$17.13

3

Main Shaft Ass'y | Gear Box 2.30

619230054

$546.99

4

Reverse Shaft Ass'y (Fast Ratio) | Gear Box 1.98

619230071

$569.37

5

Fork, Forwards

619230055

$136.54

6

Fork, reverse

619230015

$191.01

7

Shaft

619230016

Unavailable

8

Spring

619230017

$13.91

9

Shifting Drum

619230056

$204.45

10

Oil seal This part replaces 619230052.

619230019

$18.63

11

Bushing

619230020

$9.09

12

Locking lever

619230021

$55.94

13

Middle gear

619230022

$212.66

14

Lower gear

619230023

$394.75

15

Magnetic Cap

504152821

Unavailable

16

Gearbox Cover Rh This part replaces 504153194.

504153477

$334.30

17

Inside Cover

504153243

Unavailable

18

Oil Plug

619230027

$39.52

19

O-Ring

619230028

$4.15

20

Screw

619230029

Unavailable

21

Washer

619230030

$7.58

22

Oil seal

619230031

$18.63

23

SCREW M6 X 20 - Call your local BRP dealership

619230033

Unavailable

24

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Allen Screw M8 x 10

619230037

$5.72

27

Allen Screw M10 x 16

619230038

$3.81

28

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

29

Seal Ring

619230047

$3.81
