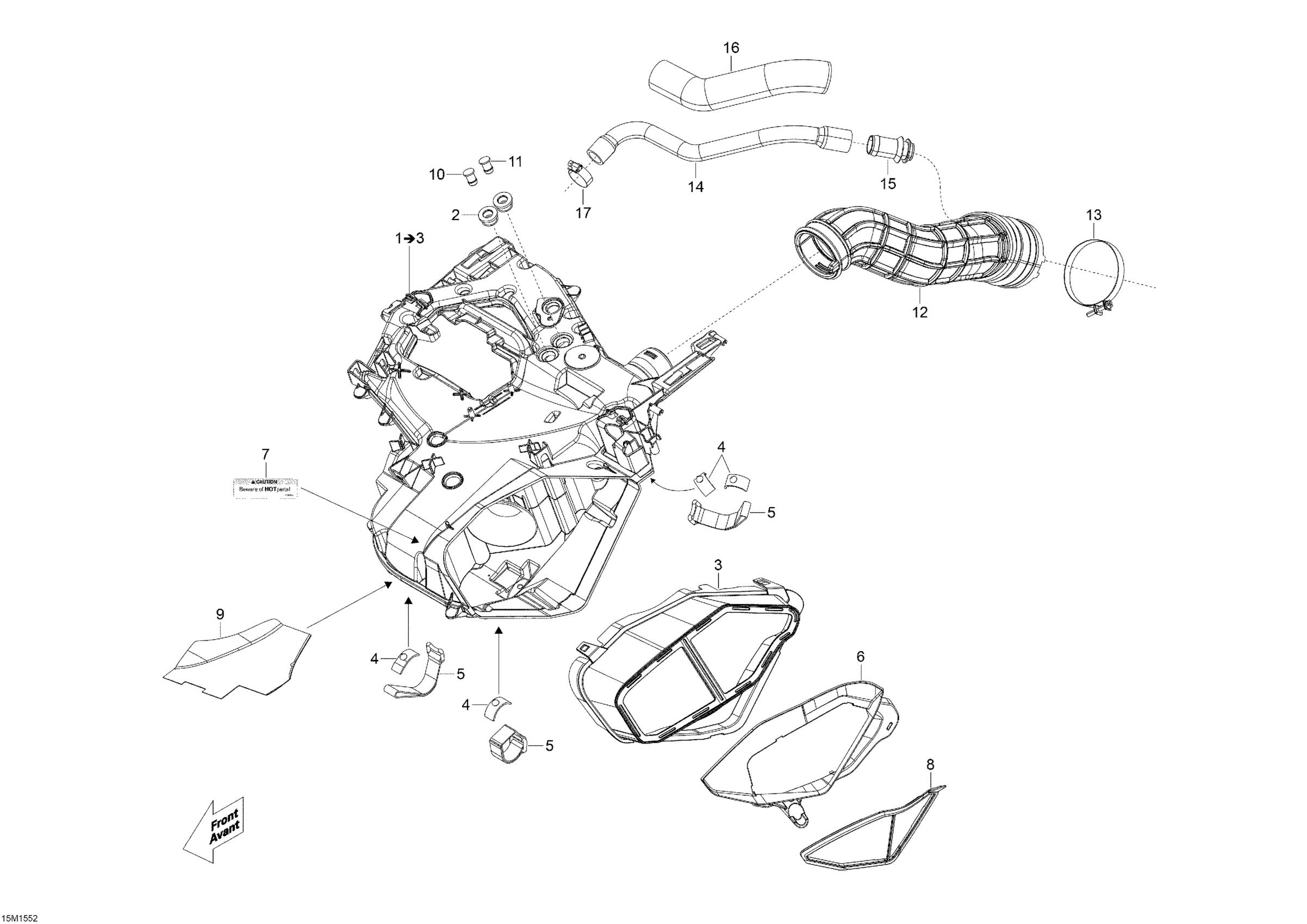

Ski-Doo Skandic SWT 900 ACE, 2015 Air Intake System _15M1552 Diagram

#

Description
Price

1

Secondary Chamber Ass'y

508000715

$185.79

2

Grommet

508000574

$7.13

3

Air Intake Filter

508000595

$38.78

4

Stopper

508000537

$7.13

5

Velcro Strip

508000820

$7.13

6

Adapter

508001021

$27.58

7

Caution Label, Air Intake

516004651

Unavailable

8

Air Filter

508000609

$44.75

9

Reflective Sheet

508000622

$9.07

10

Cap

572092900

$18.63

11

Cap

572092900

$18.63

12

Air Intake Hose

508000773

$41.76

13

Gemi Clamp

293650229

$10.21

14

Hose Vent

508000746

$14.90

15

Breather Valve

273000234

$12.21

16

Tube Isolator

508000648

$14.90

17

Tridon Gear Clamp

293650172

$3.07
