Description

Price

1

TUBE - Call your local BRP dealership

514055017

$384.58

2

Exhaust Gasket

707601033

$13.45

3

Muffler Ass'y | Includes 400 to 400h

514055326

$738.43

4

RH Heat Shield

514055325

$54.58

5

LH HEAT SHIELD - Call your local BRP dealership

514055128

$49.20

6

RH Insulating Wool

514054769

$11.63

7

LH Insulating Wool

514054881

$13.77

8

Pop Rivet 3/16”

390910000

$0.48

9

Spring Bracket

514054522

$6.28

10

Avex Rivet

390909200

Unavailable

11

Lower Stopper

514054496

$26.12

12

Stopper

514054346

$18.43

13

Rubber Bumper

514053654

$49.20

14

Spring

415107100

$6.20

15

Spring Bracket

514055317

Unavailable

16

Avex Rivet

390909100

$0.29

17

Support

514054939

$27.66

18

Anti-Vibration Rubber

707600702

$8.34

19

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

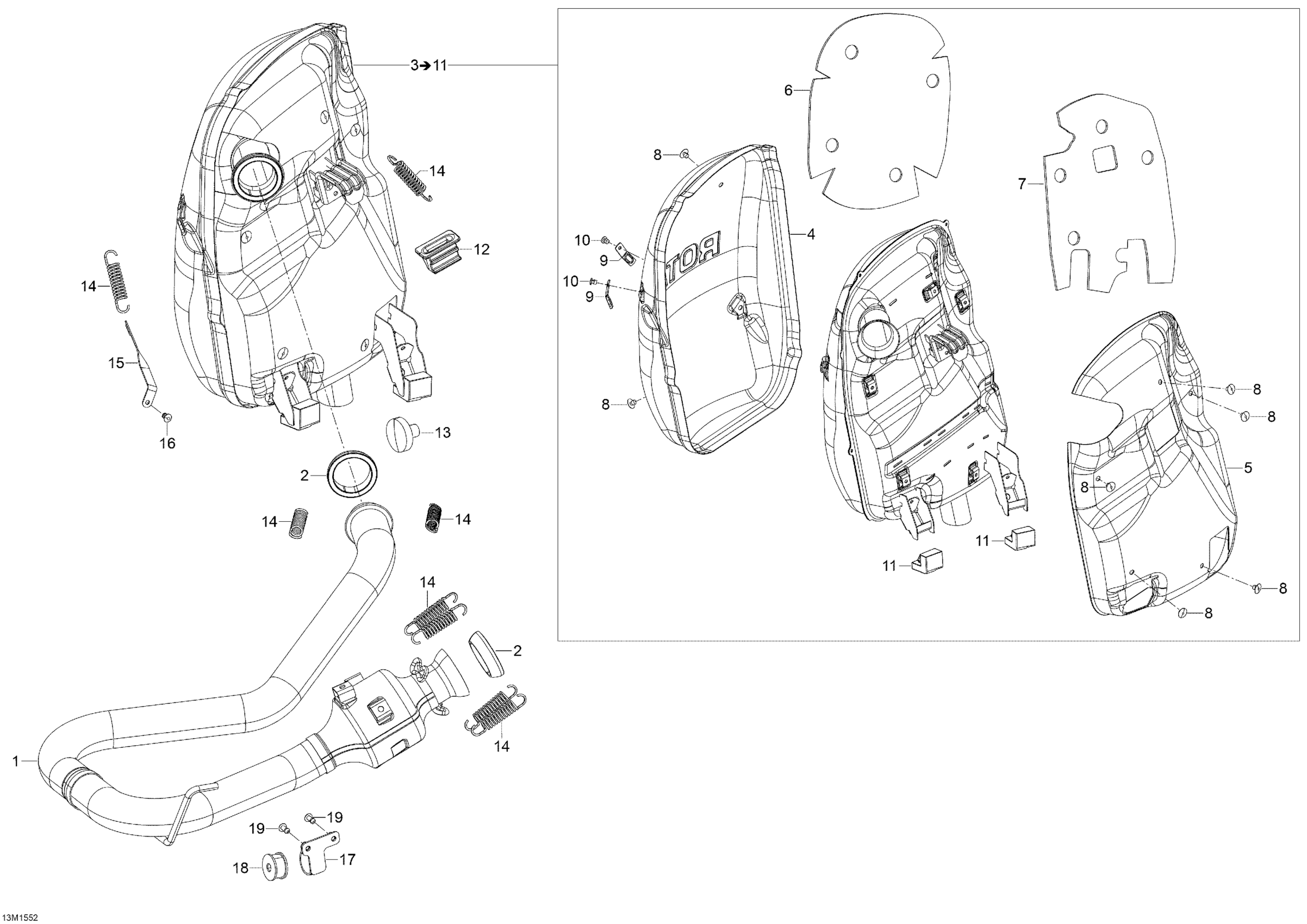

Ski-Doo Skandic SWT 900 ACE, 2015 Exhaust System _13M1552 Diagram

Avex Rivet

Spring Bracket
