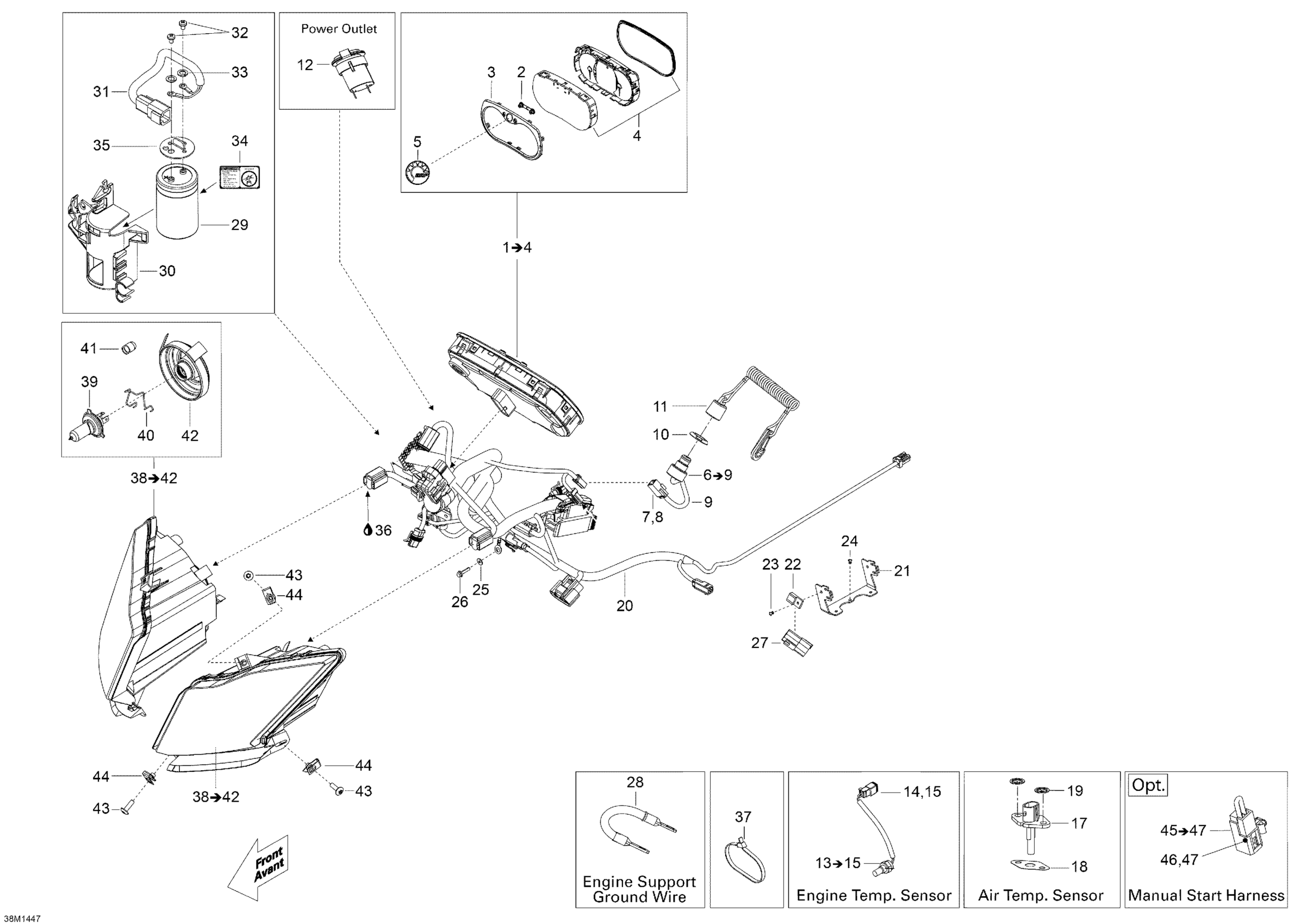

Ski-Doo Skandic SWT 600HOETEC XU, 2014 Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177914

$593.82

2

Speedometer Button | XTP

415129355

$13.94

3

Gauge Ring

415129348

$11.71

4

Lens | XTP

415129349

$23.05

5

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

6

DESS Switch

515177249

$106.12

7

Male Terminal

515175232

$1.49

8

Male Housing, 3 Circuits

515175494

$15.35

9

Tubing 12 mm

409902000

Unavailable

10

Safety Nut (DESS Switch)

278002963

$2.72

11

DESS

515178284

$81.51

12

DC Outlet

710001248

$31.17

13

Temperature Sensor This part replaces 420664508.

420664509

$142.28

14

Female Terminal Housing, 2 Circuits

515175670

$7.85

15

Female Terminal

278000632

$1.69

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Air Temperature Sensor

515176366

$18.43

18

Seal

508000769

$5.22

19

Push Nut

389804300

$0.43

20

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177502

Unavailable

21

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

22

Clip

270000141

$8.33

23

Avdel Rivet 3/16"

293150037

$0.47

24

Pop Rivet 3/16"

390402200

$0.26

25

Lock Washer 4 mm

234141601

$1.09

26

Torx Screw M4 X 8

250000127

$1.09

27

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

28

Ground Wire

515177289

$25.35

29

Capacitor

515177272

$85.35

30

Capacitor Support

515176607

$17.66

31

Capacitor Harness

515176605

$31.51

32

Socket Head Screw M10 X 32

250000462

$2.06

33

Lock washer | Quest XT 650.

250200026

$1.83

34

CAPACITOR DECAL (ENGLISH) - Call your local BRP dealership

516005515

Unavailable

35

Cap

515177193

$4.43

37

Tie-Rap 180 mm

414115200

$0.09

37

Tie Wrap 368 mm

293750008

$0.85

37

Tie Wrap 94 mm | 4X4

293750001

$0.83

38

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$139.97

38

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$139.97

39

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Cap

515176498

$12.18

42

Rubber Cap Protector

219800280

$17.66

43

Torx Screw M6 X 20

250000722

$1.34

44

Panel Nut M6 X 1.0

250100198

$1.73

45

MANUAL START HARNESS - Call your local BRP dealership | Includes 29 to 31

515176661

Unavailable

46

Male Terminal

515175232

$1.49

47

Male Housing, 2 Circuits

710000667

$7.48
