Description

Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177502

Unavailable

2

Tubing 6 Mm 3000Mm Long

219704425

$12.75

2

Was 409901700 Tubing (9 mm)

219704399

$77.58

2

Tubing 10 MM 1000MM Long

219704407

$2.52

2

Was 409901800 Tubing (13 mm)

219704400

$10.79

2

Tubing 16 Mm 1000Mm Long

219704408

$7.15

2

Was 409901600 Tubing 19mm

219704398

$87.28

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

$14.57

3

Not Available As Spare Part - Friction Washer

Unavailable

1340

Open Barrel

278000992

$2.06

AT

Female Terminal Housing

515176890

$10.81

AT

Female Terminal

710001164

$6.79

AT

Wire Seal

710001163

$5.85

BM

Open Barrel

278000992

$2.06

CD

Female Terminal Housing, 2 Circuits

278001673

$22.36

CD

Female Terminal

515175567

$5.85

CD

Female Lock, 2 Circuits

278001671

$3.12

CM

Female Housing, 3 Circuits

409209600

$34.30

CM

Female Terminal

710001340

$4.96

CM

Wire Seal

515176621

$6.79

CM

Tie Wrap 142 mm

293750002

$1.01

COMP

Female Housing, 3 Circuits

409209600

$34.30

COMP

Female Terminal

710001340

$4.96

COMP

Wire Seal

515176621

$6.79

CP

Male Terminal Housing, 2 Circuits

515175665

$7.78

CP

Male Terminal

278000631

$4.00

CP

Male Lock, 2 Circuits

409207500

$2.93

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

CTek

Male Lock, 2 Circuits

278001672

$2.93

CTek

Male Terminal

515175568

$7.25

CV

Female Housing, 24 Circuits

515175801

$8.73

CV

Retainer Block

515175802

$10.34

CV

Wire Seal

515175803

$2.76

CV

BLOCK - Call your local BRP dealership

515175804

Unavailable

CV

LOCK - Call your local BRP dealership

515175805

Unavailable

CV

Female Terminal

515175806

$0.93

CV

Plug

515175812

$1.96

CV

Female Housing

710000399

$13.60

D1

Diode

409012700

$10.51

DI

Male Housing, 6 Circuits

515175673

$12.66

DI

Female Terminal

278000632

$1.94

DI

Sealing Cap

293000052

$2.93

DI

Male Wedge, 6 Circuits

515175678

$4.96

DS

Female Housing, 3 Circuits

515175495

$14.90

DS

Female Terminal

515175231

$4.00

DT

Male Housing, 2 Circuits

278001005

$17.88

DT

Female Terminal

278000998

$4.00

DT

Wire Seal

278000999

$2.93

EI

Male Terminal Housing, 2 Circuits

515175665

$7.78

EI

Male Terminal

278000631

$4.00

EI

Male Lock, 2 Circuits

409207500

$2.93

ER1

Female Terminal Housing, 2 Circuits

415128500

$7.24

ER1

Female Terminal

278000998

$4.00

ER1

Seal

415128501

$1.73

ERF

Housing

710000568

$10.51

ERF

Male Terminal

515176164

$6.24

ERF

Clip

710000992

$3.88

ERF

Wire Seal

515176621

$6.79

F

Little Fuse, 5 Amperes

710000742

$8.31

F

Little Fuse, 7.5 Amperes

710000743

$7.78

F

Little Fuse, 10 Amperes

710000744

$8.31

F

Little Fuse, 15 Ampere

710000745

$7.78

F

Little Fuse, 20 Amperes

710000746

$7.78

F

Little Fuse, 30 Amperes

710000747

$7.78

FAN

Female Housing, 2 Circuits

409209500

$13.07

FAN

Female Terminal

278001014

$3.12

FAN

Wire Seal

515176621

$6.79

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.25

GPS1

Female Terminal

409010100

$5.30

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.25

GPS2

Female Terminal

409010100

$5.30

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HG

Female Terminal

515175231

$4.00

HG

Female Terminal

515175282

$6.24

HORN

Female Housing, 2 Circuits

515175658

$14.90

HORN

Female Terminal

515175231

$4.00

IGM

Female Housing, 3 Circuits

409209600

$34.30

IGM

Female Terminal

278001014

$3.12

IGM

Wire Seal

515176621

$6.79

IGP

Female Housing, 3 Circuits

409209600

$34.30

IGP

Female Terminal

278001014

$3.12

IGP

Wire Seal

515176621

$6.79

INM

Female Housing, 2 Circuits

409209500

$13.07

INM

Female Terminal

278001014

$3.12

INM

Wire Seal

515176621

$6.79

INM

Tie Wrap 94 mm | 4X4

293750001

$0.96

INP

Female Housing, 2 Circuits

409209500

$13.07

INP

Female Terminal

278001014

$3.12

INP

Wire Seal

515176621

$6.79

INP

Tie Wrap 94 mm | 4X4

293750001

$0.96

J1A

Female Terminal Housing, 34 Circuits

515176342

$20.12

J1A

Female Terminal

515176348

$5.85

J1A

Female Terminal

515176541

$4.28

J1A

Plug

515176345

$20.12

J1B

Female Terminal Housing, 26 Circuits

515176341

$27.58

J1B

Female Terminal

515176348

$5.85

J1B

Female Terminal

515176541

$4.28

J1B

Plug

515176345

$20.12

J2

Female Terminal Housing, 16 Circuits

515176340

$13.52

J2

FEMALE TERMINAL - Call your local BRP dealership

415128499

Unavailable

J2

Female Terminal

278000998

$4.00

J2

Seal

415128501

$1.73

MO

Male Terminal Housing, 6 Circuits

515175668

$13.60

MO

Male Terminal

278000631

$4.00

MO

Female Lock, 6 Circuits

278000735

$2.93

NE

Male Terminal Housing, 2 Circuits

515175654

$7.25

NE

Male Terminal

515175232

$1.45

NH

Male Connector, 2 Circuits

278001113

$14.52

NH

Female Terminal

710001119

$4.96

NV

Housing

710000568

$10.51

NV

Male Terminal

515176164

$6.24

NV

Clip

710000992

$3.88

NV

Wire Seal

515176621

$6.79

PA

Female Housing

515176908

$11.69

PA

Terminal

515176909

$2.06

PB

Female Housing

515176908

$11.69

PB

Terminal

515176909

$2.06

PC1

Female Terminal Housing, 1 Circuit

409010400

$7.25

PC1

Female Terminal

409010100

$5.30

PC2

Open Barrel

278000992

$2.06

PE

Female Housing, 2 Circuits

409209500

$13.07

PE

Female Terminal

278001014

$3.12

PE

Wire Seal

515176621

$6.79

PF

Fuse Cover

710001026

$20.12

PF

Fuse Box Base Ass´y

415129856

$47.73

PF

Female Terminal

710000836

$5.30

PF

Female Terminal

710000837

$4.96

PF

Wire Seal

278000999

$2.93

PF

Seal

415128501

$1.73

PF

Cap

710000840

$5.33

PF

Fuse Puller

710000781

$8.29

PF

Foam

278002172

$5.33

PF

Decal, Fuse Box

516006388

Unavailable

PH

Male Connector, 2 Circuits

278001113

$14.52

PH

Female Terminal

710001119

$4.96

POV

Female Housing, 2 Circuits

515175658

$14.90

POV

Female Terminal

515175231

$4.00

R

Relay, 30 AMP

515176774

$18.63

RSW

Female Terminal Housing, 2 Circuits

515176296

$4.96

RSW

Female Terminal

515175231

$4.00

SA

Female Housing, 3 Circuits

515175495

$14.90

SA

Female Terminal

515175231

$4.00

SB

Housing

710000568

$10.51

SB

Male Terminal

515176164

$6.24

SB

Wire Seal

515176621

$6.79

SD

Male Connector, 2 Circuits

278001113

$14.52

SD

Female Terminal

278001114

$2.93

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.25

SW1

Female Terminal

409010100

$5.30

SW2

Female Terminal Housing, 1 Circuit

409010400

$7.25

SW2

Female Terminal

409010100

$5.30

TP

Male Housing, 3 Circuits

278000997

$17.88

TP

Female Terminal

278000998

$4.00

TS

Male Housing, 2 Circuits

278001005

$17.88

TS

Female Terminal

278000998

$4.00

TS

Wire Seal

278000999

$2.93

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.25

VC1

Female Terminal

409010100

$5.30

VC2

Female Terminal Housing, 1 Circuit

409010400

$7.25

VC2

Female Terminal

409010100

$5.30

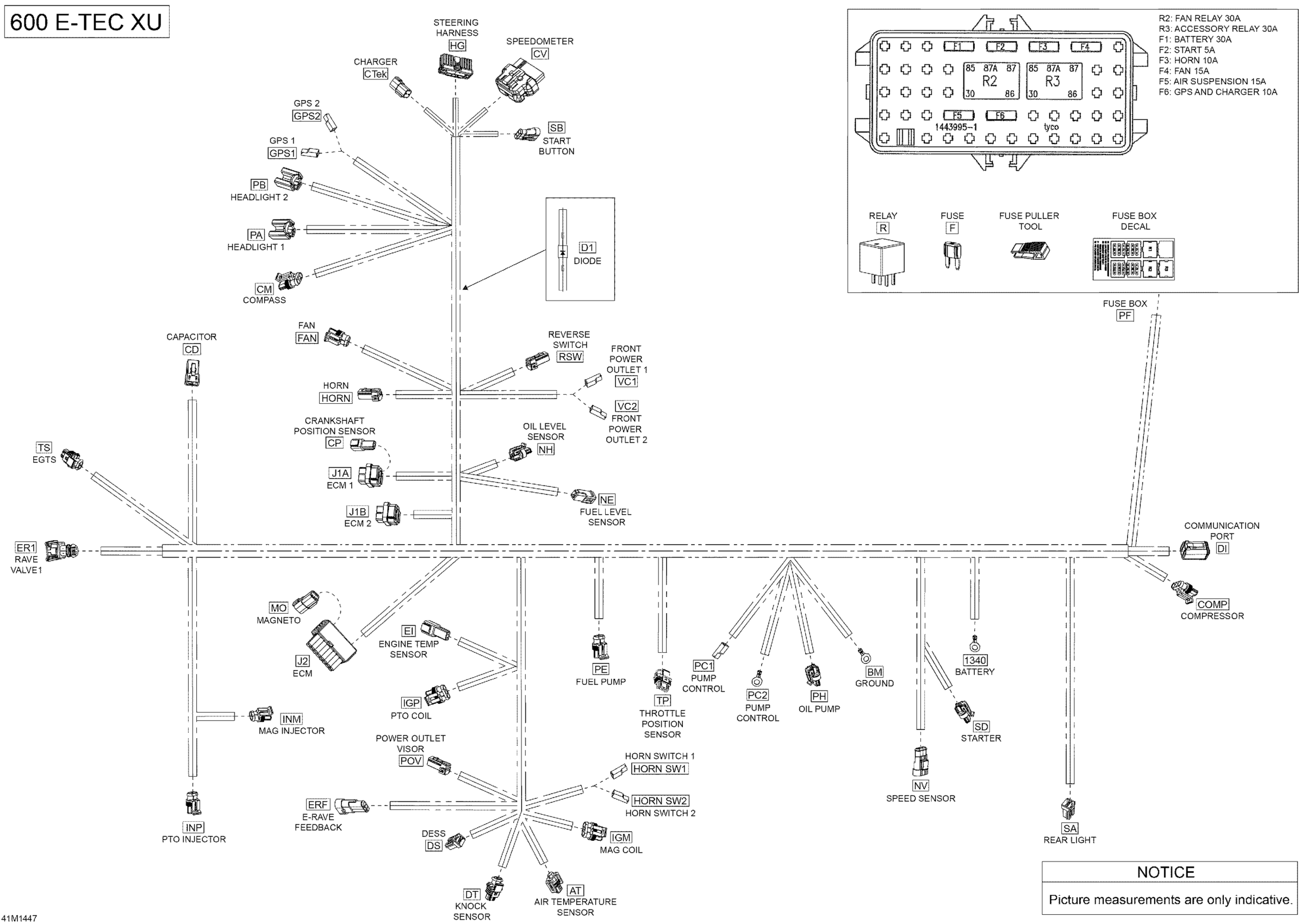

Ski-Doo Skandic SWT 600HOETEC XU, 2014 Electrical Harness Diagram
