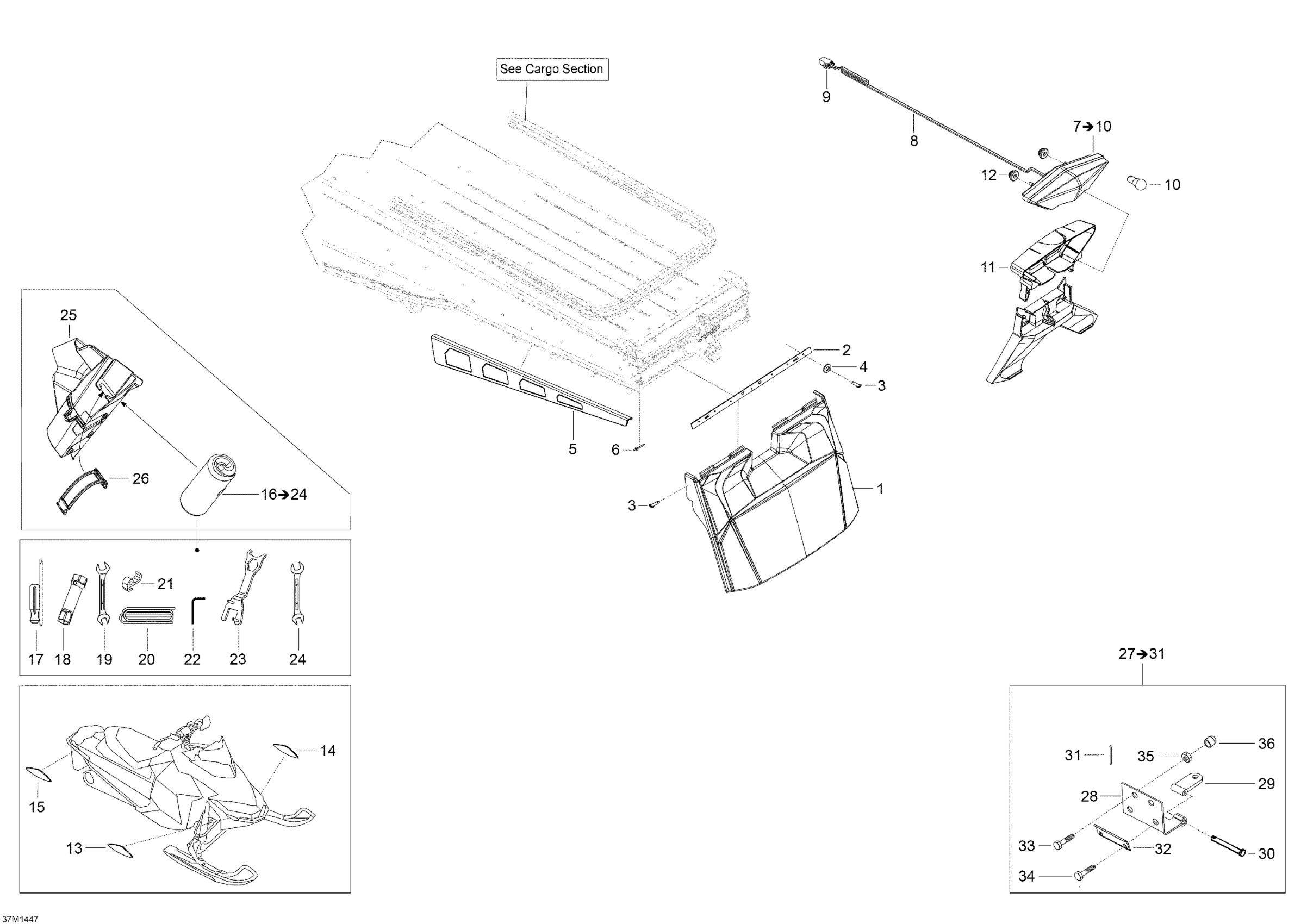

Ski-Doo Skandic SWT 600HOETEC XU, 2014 Utilities Diagram

#

Description
Price

1

Black, Snow Guard long

520001409

$81.99

2

Plate

520001022

Unavailable

3

Forming Screw M5 x 16

250000676

$0.83

4

Washer M5

250200025

Unavailable

5

RH Protector

520000693

$53.99

5

LH Protector

520000694

$53.99

6

Rivet Hucklok

293150163

$2.82

7

Rear Light | Includes 200 to 200a

520000848

$96.12

8

Rear Wiring Harness

520000849

Unavailable

9

Male Housing, 3 Circuits

515175494

$15.35

10

Bulb

520000758

$7.49

11

Rear Light Cover

511000764

$36.12

12

Stopper Rubber

705014429

Unavailable

13

Yellow, RH Reflector

520001600

$31.51

14

Yellow, LH Reflector

520001601

$31.51

15

Red, Lateral Reflector

705003412

$13.28

16

Tool Kit | Includes 20 To 28

529000065

$57.99

17

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

18

Set Key, 16/21 mm

529000046

$14.49

19

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

20

Was 412500100 Rope-Starter

219704403

Unavailable

21

Starter Grip

529000060

Unavailable

22

Spacing Tool

520001142

$10.99

23

WRENCH SUSPENSION - Call your local BRP dealership

520000988

$14.98

24

Wrench

M34017

Unavailable

25

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

$16.89

26

Latch

520000528

$6.60

27

Hitch Ass'y | Model- North America

M5344152

Unavailable

28

Fitting Plate | Model- North America This part replaces M5344151.

5344151

Unavailable

29

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

30

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

31

Cotter Pin

41031

$6.26

32

Plate

520000727

$33.82

33

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

34

Bolt Carriage M8 X 40

207784044

$1.09

35

Hex. Flange Elastic Nut M8

233281414

Unavailable

36

Cover | Model-T3

28056

$5.52
