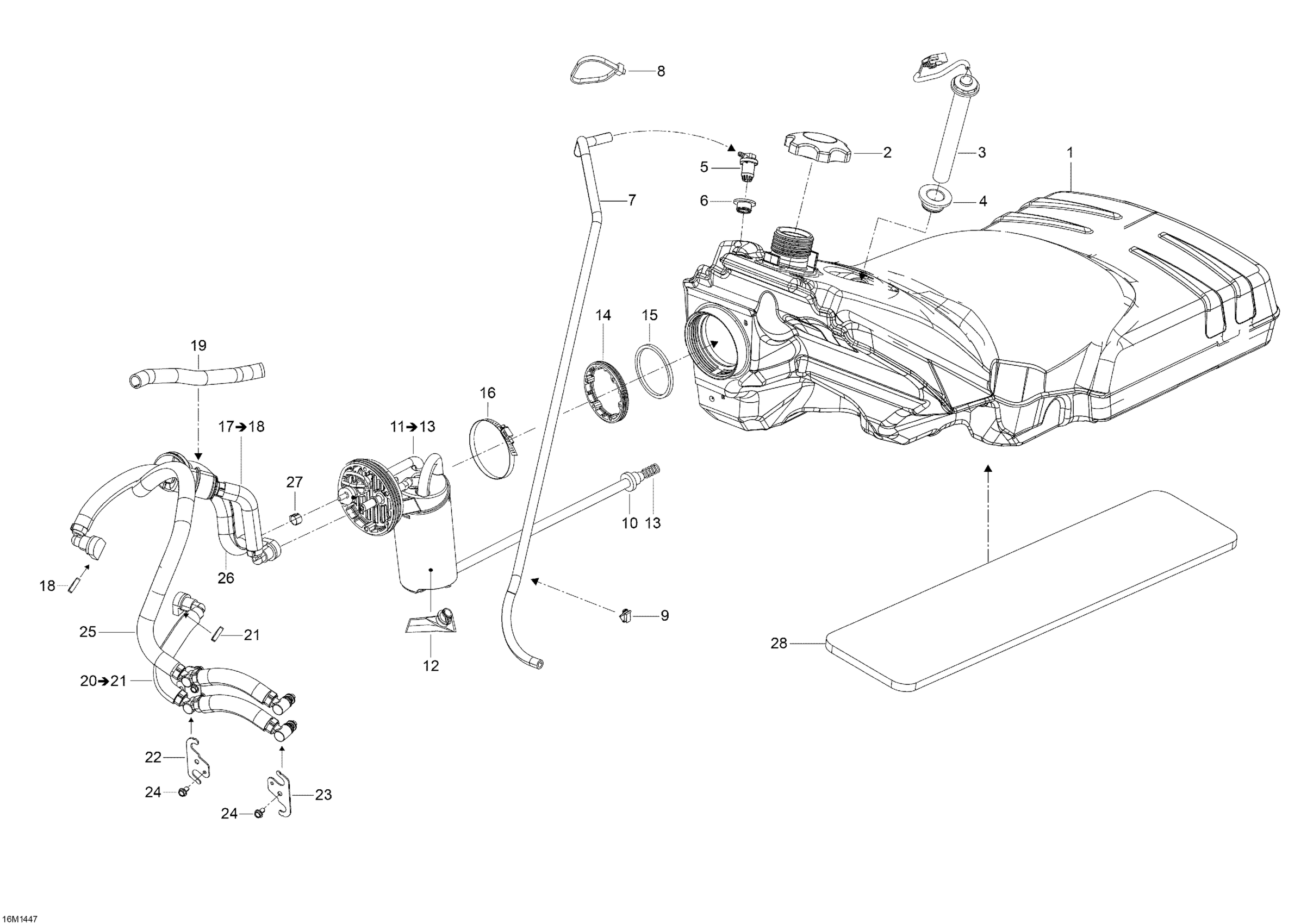

Ski-Doo Skandic SWT 600HOETEC XU, 2014 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap 91 Octane

513033722

$23.05

3

Fuel Sensor

513033538

Unavailable

4

Grommet

293720058

$11.00

5

Check Valve

513033842

$33.82

6

Grommet

513033596

$18.43

7

Polyurethane Hose 10000Mm Long

219704410

Unavailable

8

Tie-Rap 180 mm

414115200

$0.09

9

Clip

414227300

$1.45

10

Grommet

280000674

Unavailable

11

Fuel Pump Ass'y | Includes 13 to 15

513033643

$257.66

12

Fuel Filter

415129451

$23.05

13

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

14

Ring

513033180

$17.66

15

Gasket

513033334

$23.05

16

Clamp

513033628

$20.74

17

Hose Ass'y

513033589

$180.74

18

Locking Clip

513033135

$5.11

19

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

20

Hose Ass'y | Includes 22 to 23

513033594

$81.51

21

Locking Clip

513033135

$5.11

22

Bracket

513033542

$12.62

23

Bracket

513033593

$16.12

24

Hex. Flange Screw M5 X 10

207551044

Unavailable

25

Hose Ass`Y

513033631

$312.28

26

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

27

Crimp Clamp, 15.3-706R

293650047

Unavailable

28

FOAM - Call your local BRP dealership

513033640

Unavailable
