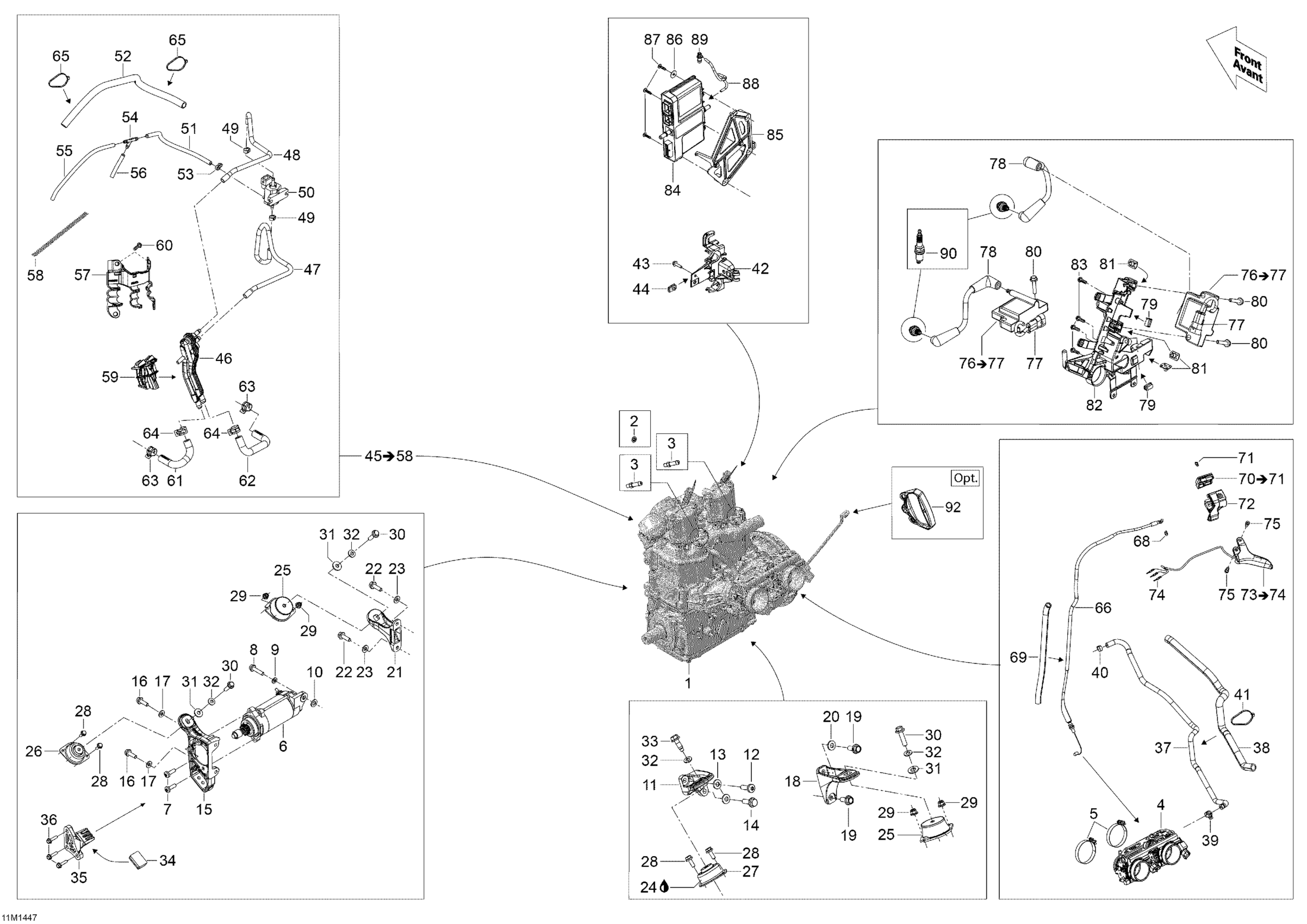

Ski-Doo Skandic SWT 600HOETEC XU, 2014 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Push Nut

732610072

Unavailable

3

Hose Nipple

420924724

Unavailable

4

Throttle Body

420889201

$1,228.43

5

Gemi Clamp

293650158

$8.34

6

Starter

515178473

$319.49

7

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

8

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

9

Flat Washer With Teflon 8 mm

250200008

Unavailable

10

Washer

515176500

Unavailable

11

Rear Support, PTO

512060478

$29.97

12

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

13

Conical Spring Washer M8

234281474

$1.25

14

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

15

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

16

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

17

Conical Spring Washer M8

234281474

$1.25

18

Rear Support, MAG

512060559

$29.97

19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

20

Conical Spring Washer M8

234281474

$1.25

21

Front Support, MAG

512060469

$31.51

22

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

23

Conical Spring Washer M8

234281474

$1.25

25

Rubber Mount

512060729

$69.97

26

Rubber Mount

512060387

$42.28

27

Rubber Mount

512060448

$42.28

28

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

30

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

31

Yellow, Washer

503183200

Unavailable

32

Conical Spring Washer M8

234281474

$1.25

33

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

34

Stopper

512060627

$9.31

35

Stopper Support

512060576

$28.43

36

Hex. Flange Screw M6 X 25

207562544

$1.39

37

FORMED HOSE OUTPUT TB - Call your local BRP dealership

509000793

$39.97

38

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

39

Tridon Gear Clamp

293650172

$2.68

40

Crimp Clamp, 15.3-706R

293650047

Unavailable

41

Tie Wrap 368 mm

293750008

$0.85

42

Solenoid Support

512060298

$12.52

43

Hex.Flange Screw M5 X 20

207652044

$1.56

44

Panel Nut M5 X 0.8

250000958

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Manifold

512060692

$43.05

47

Polyurethane Hose 10000Mm Long

219704410

Unavailable

48

Polyurethane Hose 10000Mm Long

219704410

Unavailable

49

Crimp Clamp

293650234

$5.22

50

Solenoid Valve

270600005

$39.62

51

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

52

Was 409901700 Tubing (9 mm)

219704399

Unavailable

53

Tie Wrap 94 mm | 4X4

293750001

$0.83

54

T-Fitting

293710068

$6.59

55

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

56

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

57

Hose Support

512060827

$2.06

58

Spring | Not Shown

512060934

$81.51

59

Manifold Support

512060769

$10.52

60

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

61

LH Formed Hose

512060695

$7.80

62

RH Formed Hose

512060694

$7.80

63

Norma Spring Clamp

293650214

$15.35

64

Crimp Clamp, 15.3-706R

293650047

Unavailable

65

Tie Wrap 94 mm | 4X4

293750001

$0.83

66

Throttle Cable

512060633

$106.12

68

Circlip

414274500

Unavailable

69

Was 409901700 Tubing (9 mm)

219704399

Unavailable

70

Upper Housing

512060859

Unavailable

71

Socket Set Screw M8 X 10

414440800

$4.00

72

Lower Housing

512060860

Unavailable

73

Throttle Handle Ass'y

512061252

Unavailable

74

Male Terminal

515175232

$1.49

75

Flange Screw

732601143

$4.02

76

Ignition Coil

512060953

$129.97

77

Housing

710000568

Unavailable

78

Ignition Cable, 177mm long

512061126

$27.66

79

Clip

710000992

$4.00

80

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

81

Nut Welded, M6

293100003

Unavailable

82

Ignition Coils Support

512060888

$10.52

83

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

84

Calibrated Module

512060780

$769.99

85

Calibrated Module Support

512060858

$12.52

86

Flat Washer

250200040

$1.82

87

Truss Head Torx Screw K50 X 20

250000297

$1.74

88

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

89

Male Connector

414814100

$2.18

90

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

Unavailable

92

Starter Grip

512060136

$14.54
