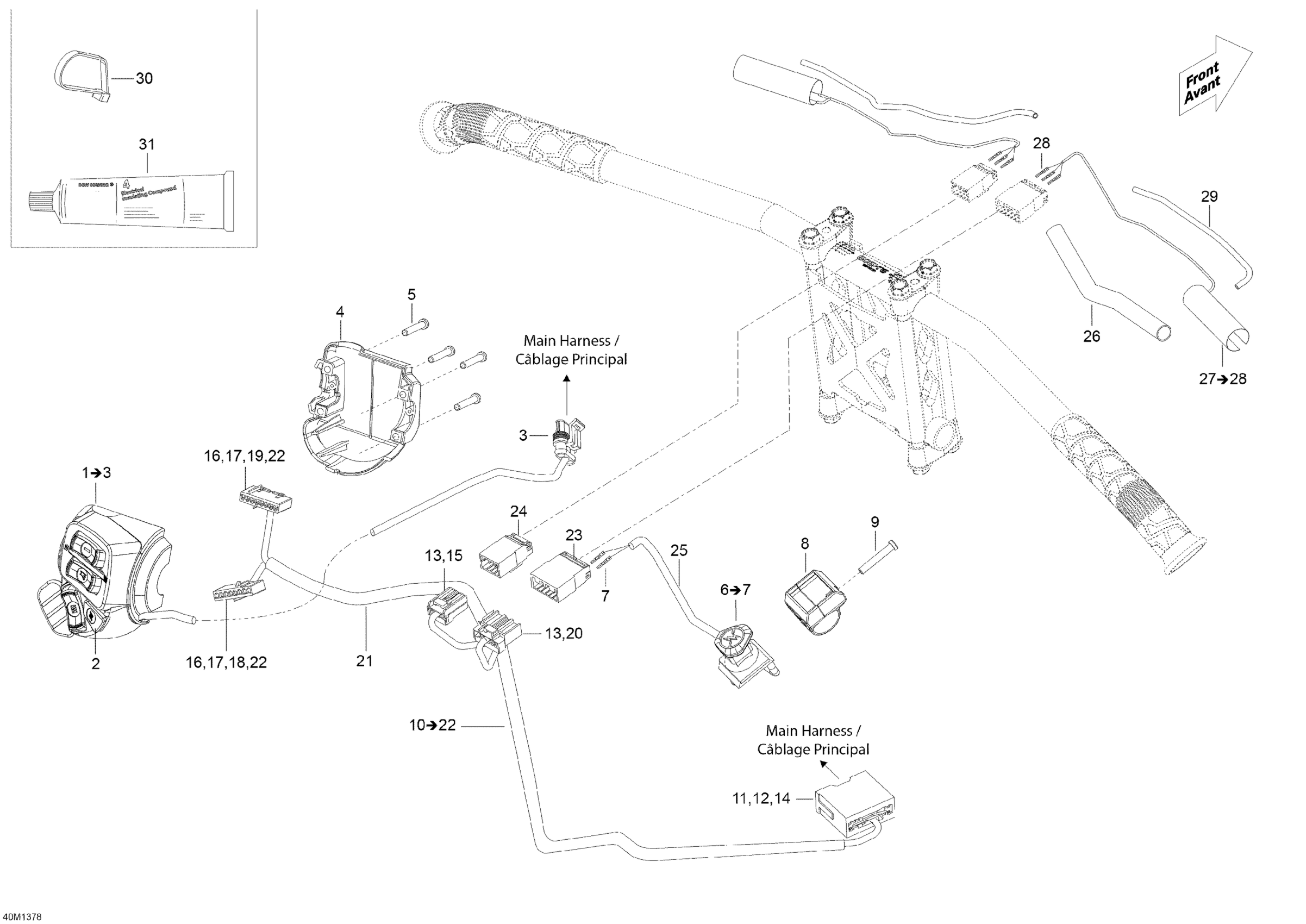

Ski-Doo Skandic SWT 600HOETEC XU, 2013 Steering Wiring Harness Diagram

#

Description
Price

1

LH Switch Housing | Includes 1 To 3

515177508

$167.66

2

Start/RER Button

515176088

$18.43

3

Female Housing, 3 Circuits

409209600

$35.35

4

Switch Housing Plate

515175926

$17.66

5

Torx Screw #8-18

250000263

$1.02

6

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

7

Male Terminal

515175232

$1.49

8

Kill Switch Support

515176825

$8.60

9

Torx Screw #8-18

250000263

$1.02

10

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 11 To 23

515176867

$80.74

11

Male Terminal

515175232

$1.49

12

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

13

Female Terminal

515175231

$4.12

14

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

$10.20

15

Female Terminal Housing, 6 Circuits

515175543

$8.57

16

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

17

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

18

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

19

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

20

Female Terminal Housing, 8 Circuits

515175819

$7.46

21

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

22

Female Terminal

515175941

$2.48

23

Male Terminal Housing, 8 Circuits

515175817

$8.57

24

Male Terminal Housing, 6 Circuits

515175662

$8.57

25

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

26

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

27

Heating Element

506152467

$37.66

28

Male Terminal

515175232

$1.49

29

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

30

Tie-Rap 180 mm

414115200

$0.09

31

Not Available As Spare Part - Friction Washer

Unavailable
