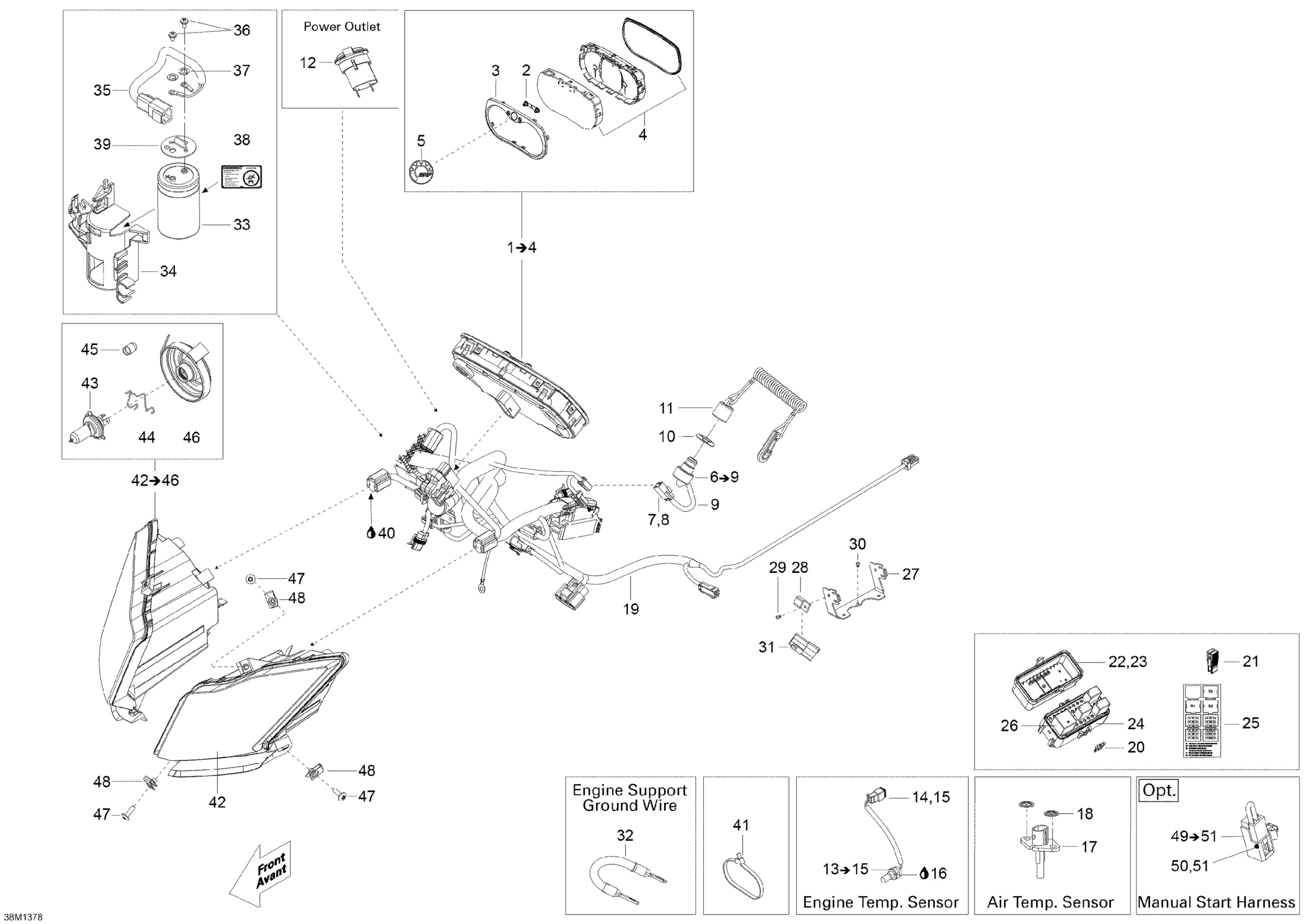

Ski-Doo Skandic SWT 600HOETEC XU, 2013 Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177914

$593.82

2

Speedometer Button | XTP

415129355

$13.94

3

Gauge Ring

415129348

$11.71

4

Lens | XTP

415129349

$23.05

5

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

6

DESS Switch

515177249

$106.12

7

Male Terminal

515175232

$1.49

8

Male Housing, 3 Circuits

515175494

$15.35

9

Tubing 12 mm

409902000

Unavailable

10

Safety Nut (DESS Switch)

278002963

$2.72

11

DESS

515178284

$81.51

12

DC Outlet

710001248

$31.17

13

Temperature Sensor This part replaces 420664508.

420664509

$142.28

14

Female Terminal Housing, 2 Circuits

515175670

$7.85

15

Female Terminal

278000632

$1.69

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Air Temperature Sensor

515176366

$18.43

18

Push Nut

389804300

$0.43

19

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177077

Unavailable

20

Little Fuse, 5 Amperes

710000742

$7.24

20

Little Fuse, 7.5 Amperes

710000743

$8.02

20

Little Fuse, 10 Amperes

710000744

$7.24

20

Little Fuse, 15 Ampere

710000745

$6.77

20

Little Fuse, 20 Amperes

710000746

$6.77

20

Little Fuse, 30 Amperes

710000747

$6.77

21

Fuse Puller

710000781

$8.29

22

Fuse Cover

710001026

$17.52

23

Foam

278002172

$5.49

24

Fuse Box Base Ass´y

415129856

$41.57

25

FUSE DECAL ETEC - Call your local BRP dealership

516005892

Unavailable

26

Relay, 50 AMP

515176775

$13.86

26

Relay, 30 AMP

515176774

$19.20

27

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

28

Clip

270000141

$8.33

29

Avdel Rivet 3/16"

293150037

$0.47

30

Pop Rivet 3/16"

390402200

$0.26

31

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

32

Ground Wire

515177289

$25.35

33

Capacitor

515177272

$85.35

34

Capacitor Support

515176607

$17.66

35

Capacitor Harness

515176605

$31.51

36

Socket Head Screw M10 X 32

250000462

$2.06

37

Lock washer | Quest XT 650.

250200026

$1.83

38

CAPACITOR DECAL (ENGLISH) - Call your local BRP dealership

516005515

Unavailable

39

Cap

515177193

$4.43

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Tie-Rap 180 mm

414115200

$0.09

41

Tie Wrap 368 mm

293750008

$0.85

41

Tie Wrap 94 mm | 4X4

293750001

$0.83

42

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$139.97

42

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$139.97

43

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Cap

515176498

$12.18

46

Rubber Cap Protector

219800280

$17.66

47

Torx Screw M6 X 20

250000722

$1.34

48

Panel Nut M6 X 1.0

250100198

$1.73

49

MANUAL START HARNESS - Call your local BRP dealership | Includes 29 to 31

515176661

Unavailable

50

Male Terminal

515175232

$1.49

51

Male Housing, 2 Circuits

710000667

$7.48
