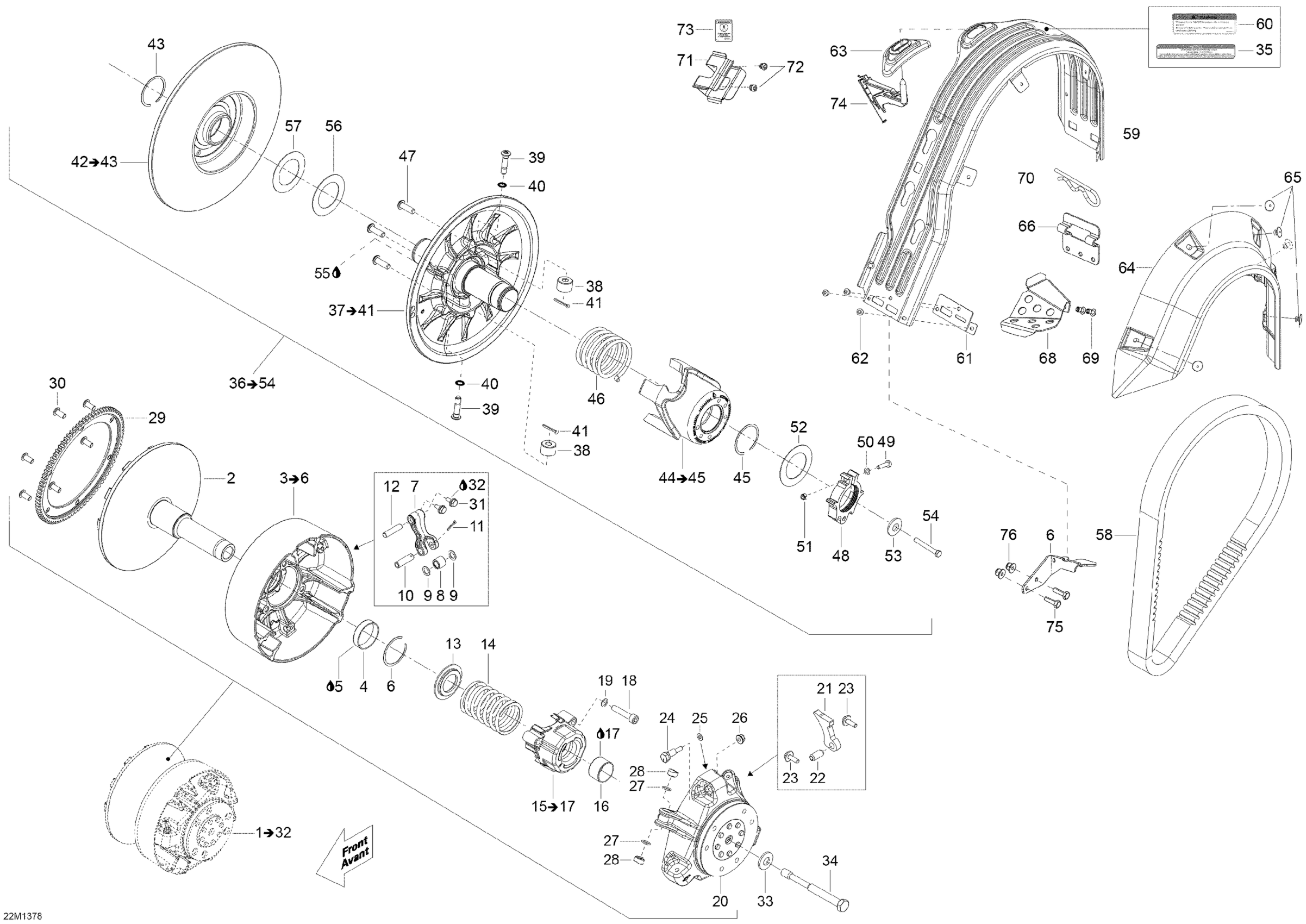

Ski-Doo Skandic SWT 600HOETEC XU, 2013 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417222758

$20.74

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417222594

$14.11

11

Cotter Pin

250400060

$1.60

12

Lever Axle

417223164

$4.25

13

Spring Seat

417222312

$8.28

14

Tra Spring

414993000

$14.75

15

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

16

Bushing

417009204

$16.12

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

19

Lock Washer 8 mm

250200009

Unavailable

20

Governor Cup Ass'y

417223669

$456.89

21

Ramp 600

417222444

$32.28

22

Spring Pin M10 X 22

250400050

$2.38

23

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

24

Calibration Screw

417223501

$27.66

25

Washer

417005600

$3.86

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

27

O-Ring

732401030

$0.95

28

Slider Shoe This part replaces 420460045.

417223021

$6.09

29

Ring Gear_Starter This part replaces 417223738.

417225070

Unavailable

30

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

31

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

32

Loctite 243, 10 ml

293800060

$20.77

33

Spring Washer 14 mm

250200006

Unavailable

34

Drive Pulley Bolt

417120000

$63.82

35

Decal English

516005503

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Fixed Flange Ass'y

417127410

Unavailable

38

Roller

417127189

$44.58

39

Pivot Stud

417127294

Unavailable

40

Lock Washer 8 mm

250200009

Unavailable

41

Spring Pin M3 X 18

250400061

Unavailable

42

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

43

Circlip

293370049

Unavailable

44

Cam Ass'y

417127411

$164.99

45

Circlip

293370049

Unavailable

46

Spring, White

417127243

$42.28

47

Torx Screw M8 X 25, Scotch Grip

250000283

$1.61

48

Calibration Ass'y

415129604

Unavailable

49

Socket Screw M5 X 25

205052544

$1.34

50

Flat Washer M5

234051410

Unavailable

51

Elastic Stop Nut M5

232551414

Unavailable

52

Washer

417127155

Unavailable

53

Strength Washer

517302322

$11.09

54

Hex. Cap Screw M8 X 75

207287544

$4.24

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Spacer

417300265

$2.12

57

Shim

504112000

$6.05

58

Drive Belt

417300551

Unavailable

59

Belt Guard

417300357

$86.12

60

Security label, Belt Guard

516004649

Unavailable

61

Reinforcement

417300380

$5.17

62

Avex Rivet

390909200

Unavailable

63

Guide

417300381

$9.23

64

Side Protector

417300356

$13.25

65

Pop Rivet 3/16"

293150103

Unavailable

66

Belt Guard Bracket | Package SWT

417300413

$7.11

67

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

68

Brake Hose Cover | Package SWT

518327035

$11.02

69

Rivet Hucklok

293150163

$2.82

70

Hair Pin

114045200

Unavailable

71

Bracket

517281905

Unavailable

72

Avex Rivet

390909100

$0.29

73

Belt Decal, English

516005511

Unavailable

74

Ignition Coils Support

512060888

$10.52

75

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

76

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
