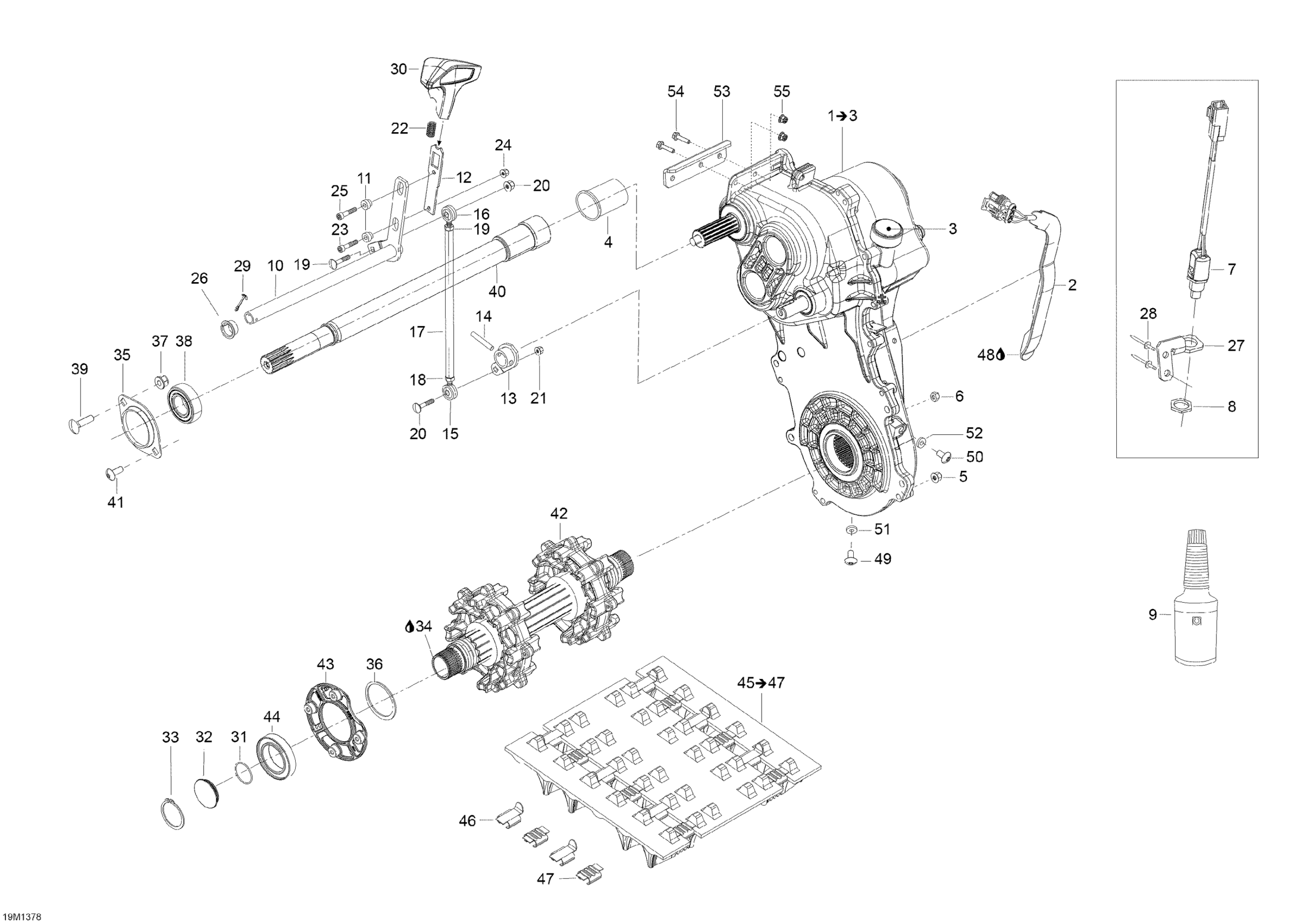

Ski-Doo Skandic SWT 600HOETEC XU, 2013 Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Fast Ratio)

619230078

$2,149.99

2

Rotation Sensor

504152896

$35.35

3

Oil Plug

619230027

$40.74

4

Protective Rubber

504153054

$16.12

5

Hex. Flange Elastic Nut M8

233281414

Unavailable

6

Hex. Elastic Stop Nut M8

232581414

Unavailable

7

Switch Ass'y

515176472

$71.51

8

Brass Nut

250000373

Unavailable

9

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

293600140

Unavailable

10

Lever Shifter

504153288

$144.58

11

Sleeve

504152787

$26.89

12

Shifter Arm

504153287

$52.28

13

Lever

504153278

$83.05

14

Pin

41012

$5.22

15

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

16

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

17

ROD - Call your local BRP dealership

504152836

Unavailable

18

Hex. Nut M6

232061414

$0.44

19

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

20

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

21

Elastic Stop Nut M6

232561434

$1.55

22

Spring

504152882

$5.89

23

Socket Screw M5 X 25

205052544

$1.34

24

Flange Elastic Nut M5

233251434

$1.66

25

Forming Screw M5 x 16

250000676

$0.83

26

Bushing

504152890

$42.49

27

Sensor Bracket

504152902

$15.35

28

Rivet Hucklok

293150163

$2.82

29

Cotter Pin

250400035

$2.06

30

Handle

504152837

$76.12

31

O-Ring

293300122

$2.06

32

Magnetic Cap

504152619

$23.05

33

Circlip

504152572

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

36

Shim

504153207

$9.62

37

Hex. Flange Elastic Nut M8

233281414

Unavailable

38

Ball Bearing

293350074

Unavailable

39

Carriage Bolt M8 X 30

207783044

Unavailable

40

Counter Shaft

504153070

$239.97

41

Torx Truss Screw M8 X 16

250000746

$2.78

42

Drive Axle Ass'y | Includes 3100 to 3100e

504153585

$516.89

43

Retaining Ring

504153886

Unavailable

44

Ball Bearing

293350059

Unavailable

45

Track Ass'y 600 X 3968 X 32 X 64 | Includes 3200 to 3200b

504153928

$1,449.99

46

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

Unavailable

49

Allen Screw M8 x 10

619230037

$5.89

50

Allen Screw M10 x 16

619230038

$3.92

51

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

52

Seal Ring

619230047

$3.92

53

EXTENTION PLATE - Call your local BRP dealership | Model SWT

518327029

Unavailable

54

Hex. Flange Screw M6 X 20

207662044

Unavailable

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
