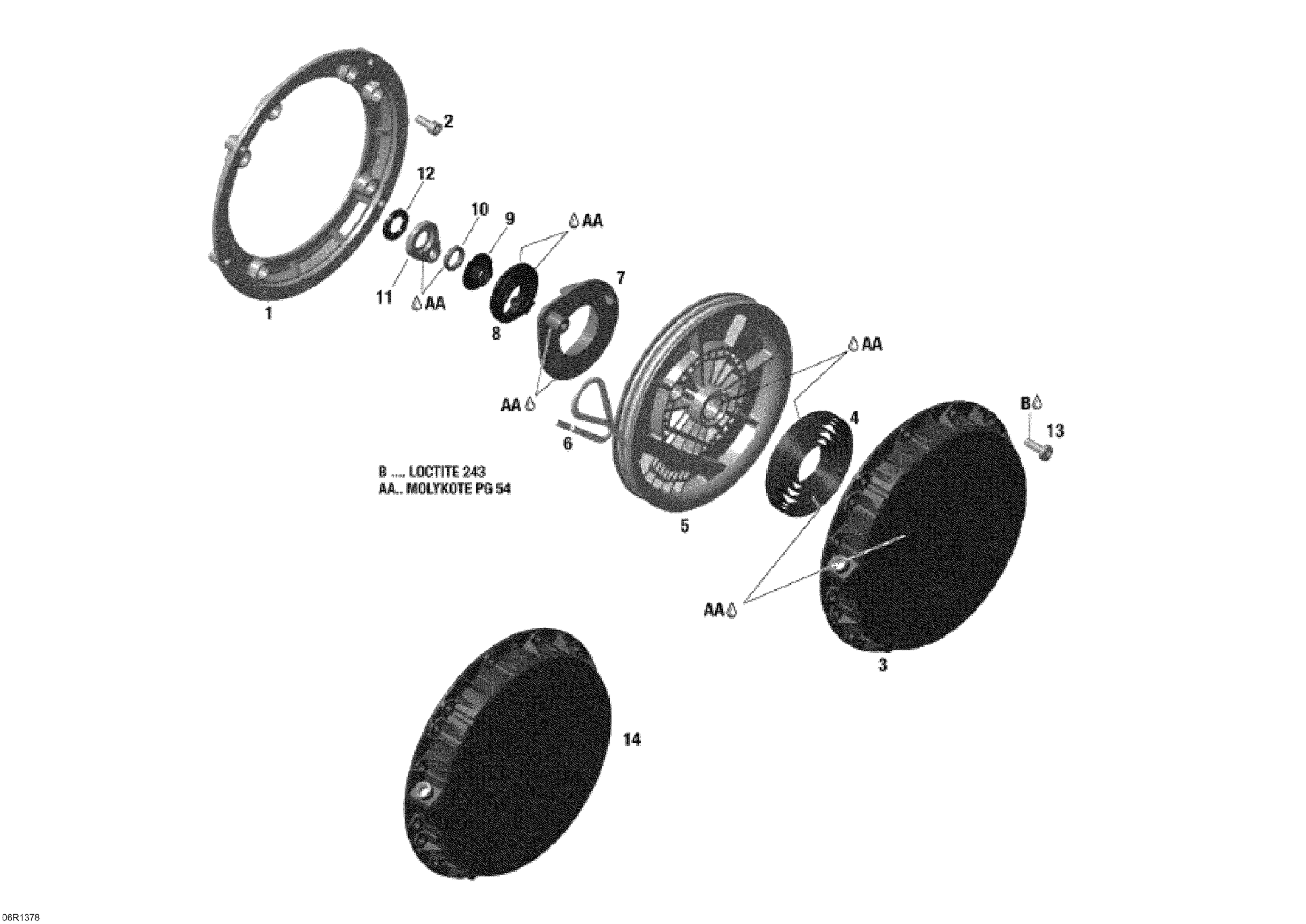

Ski-Doo Skandic SWT 600HOETEC XU, 2013 Rewind Starter Diagram

Description

Price

Flange Connector

420810868

$83.55

Socket Head Screw M6 x 16

420241237

$2.12

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$158.93

Starter Housing

420910256

$86.54

Rewind Spring

420939115

$29.07

Rope Sheave

420852288

$38.78

Was 412500100 Rope-Starter

219704403

$9.85

Pawl

420852633

$31.31

Pawl Lock | Includes no. 8-9

420852640

$5.34

Stage Sleeve

420847926

$14.10

O-Ring

420250407

$1.79

Lock Ring

420852520

$8.09

Locking Element

420845560

$1.97

Torx Flange Screw M6 X 20

420441386

$2.00

Cover | Electrical Start

420910254

$33.55

Loctite 243, 10 ml

293800060

$21.49

Not Available As Spare Part - Friction Washer

Unavailable
