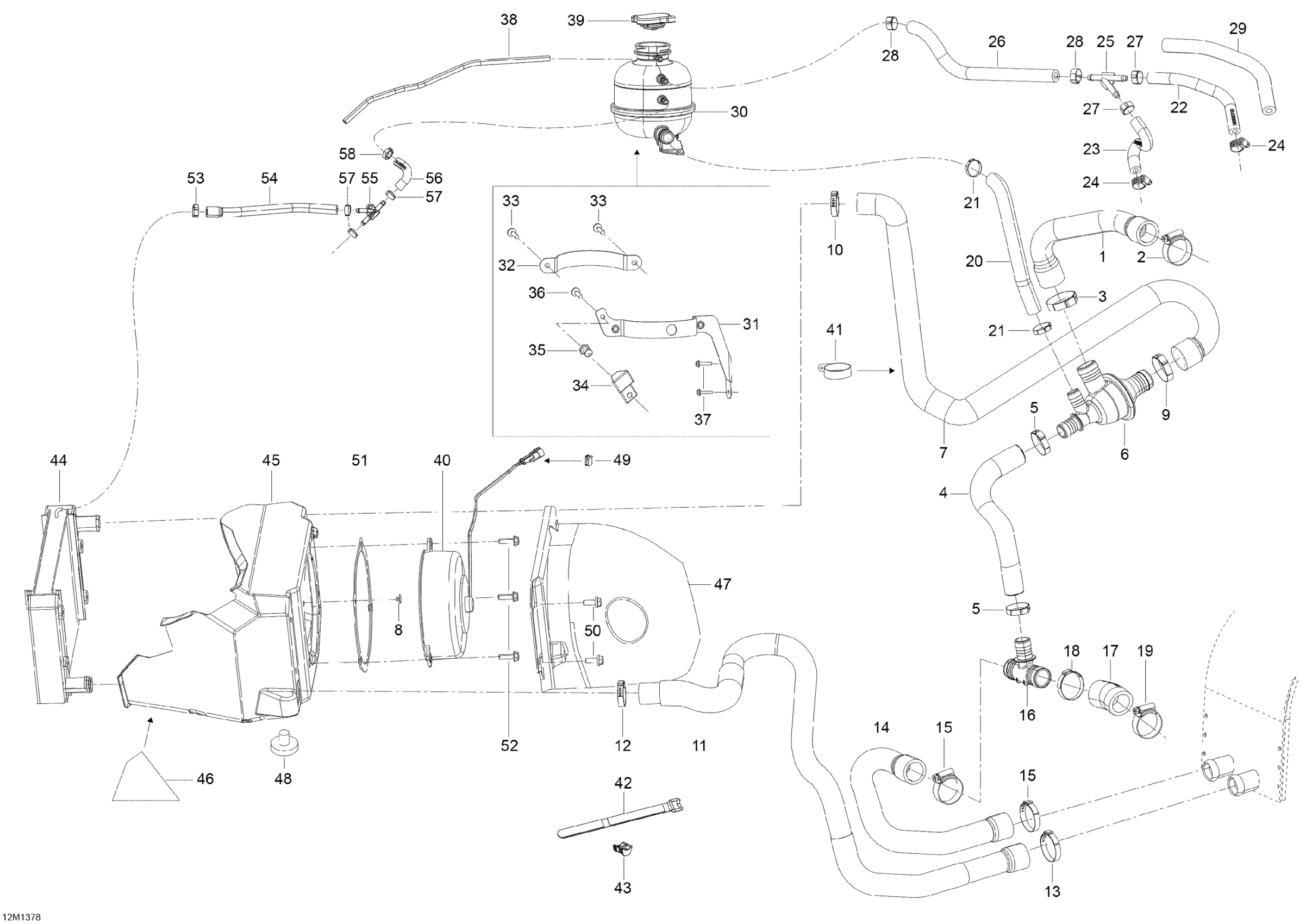

Ski-Doo Skandic SWT 600HOETEC XU, 2013 Cooling System Diagram

#

Description
Price

1

Engine Outlet Hose

509000595

$14.54

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Oetiker Gear Clamp

509000181

$3.61

4

Bypass Hose

509000523

$59.97

5

Crimp Clamp

293650099

$3.55

6

Thermostat Housing

509000499

$39.97

7

Hose Radiator

509000737

$153.05

8

Rivet

36005

$2.02

9

Oetiker Gear Clamp

509000181

$3.61

10

Crimp Clamp

293650099

$3.55

11

Air Radiator Hose

509000588

$59.97

12

Crimp Clamp

293650099

$3.55

13

Aba Gear Clamp, 26-38 MM

509000443

$5.68

14

Return Radiator Hose

509000589

$43.99

15

Aba Gear Clamp, 26-38 MM

509000443

$5.68

16

T-Fitting

509000372

$7.87

17

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

18

Oetiker Gear Clamp

509000181

$3.61

19

Aba Gear Clamp, 26-38 MM

509000443

$5.68

20

Filling Hose

509000736

$35.35

21

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

22

Bleeder Hose

509000769

$10.78

23

Bleeder Hose

509000768

$9.86

24

Tridon Gear Clamp

293650170

$1.74

25

Y-Fitting

293710059

$8.19

26

BREATHER HOSE - Call your local BRP dealership

509000878

Unavailable

27

Oetiker Clamp

293650046

$2.33

28

Crimp Clamp, 15.3-706R

293650047

$2.64

29

Protector Tube, 16 mm

513033231

$11.12

30

Coolant Tank

509000368

$86.89

31

Reservoir support

509000852

$66.12

32

Support

509000608

$29.97

33

Forming Screw M5 x 16

250000676

$0.83

34

Support

509000609

$23.05

35

Knob

517303439

$3.73

36

Torx Screw K50 X 16

250000720

$1.39

37

Screw M4 X 16

250000725

$2.87

38

Hose 6 Mm 15000Mm Long

219704360

$104.62

39

Radiator Pressure Cap

509000180

$11.69

40

Fan

509000837

$193.82

41

CLIP - Call your local BRP dealership

M27011

Unavailable

42

Velcro Strip

508000820

$7.35

43

Bumper

508000572

Unavailable

44

Radiator

509000756

$176.12

45

Cooling Fan Shroud

509001173

$25.35

46

Foam

509000615

$25.35

47

Deflector

509001174

$19.20

48

Rubber Bumper

570044700

$10.55

49

Clip

710000992

$4.00

50

Hex. Flange Screw M6 X 12

207661244

$1.70

51

Screw plate

509000614

$23.82

52

Hex. Flange Screw M6 X 20

210262040

$2.06

53

Crimp Clamp

293650053

$2.42

54

Formed Hose

509000880

$14.54

55

Y-Fitting

293710140

$7.31

56

Formed Hose

509000879

$9.31

57

Crimp Clamp, 15.3-706R

293650047

$2.64

58

Crimp Clamp, 15.3-706R

293650047

$2.64
