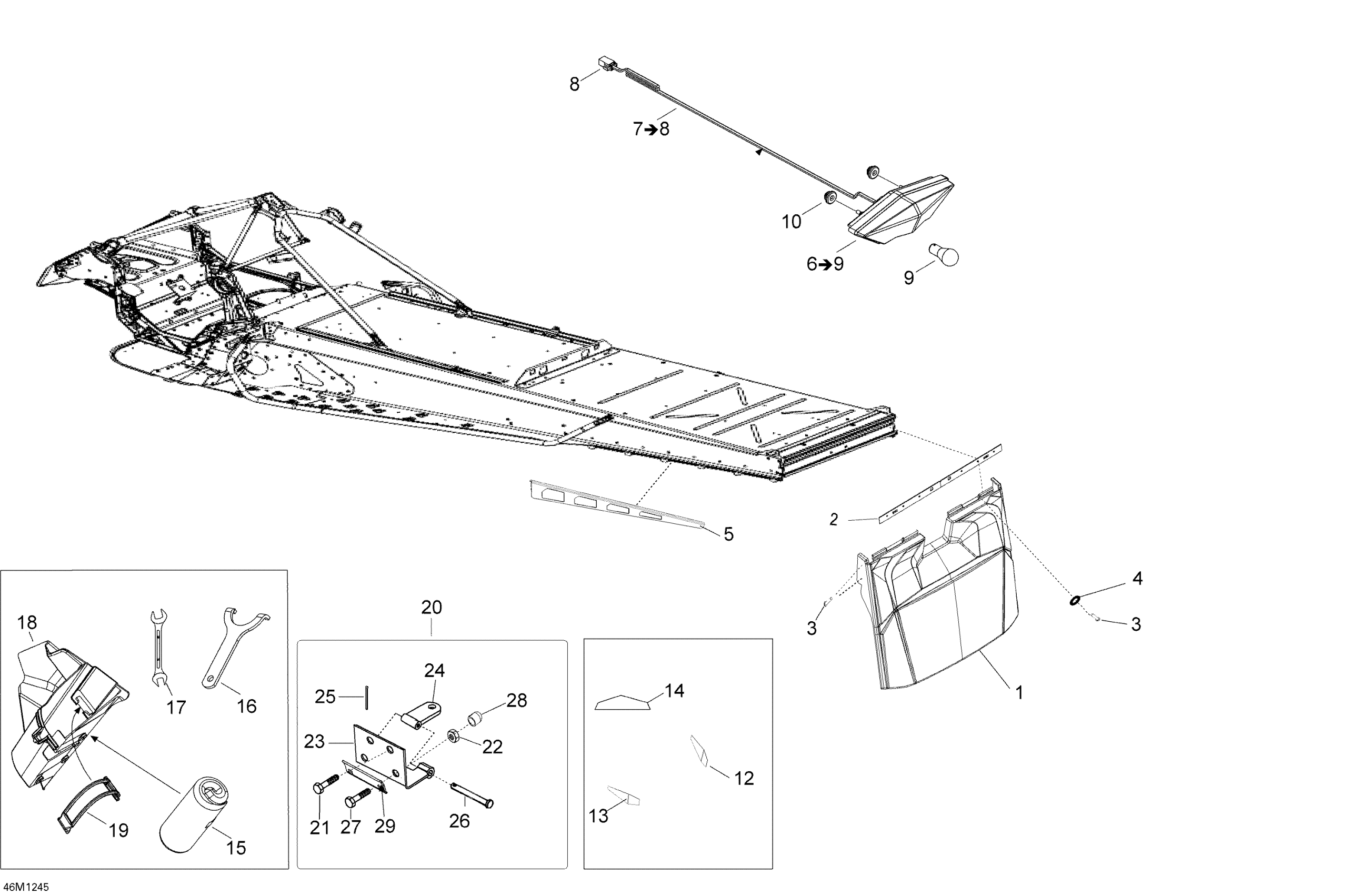

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Utilities Diagram

#

Description
Price

1

Black, Snow Guard long

520001409

$81.99

2

Plate

520001022

Unavailable

3

Forming Screw M5 x 16

250000676

$0.83

4

Washer M5

250200025

Unavailable

5

RH Protector

520000693

$53.99

5

LH Protector

520000694

$53.99

6

Rear Light Ass'y

520000587

Unavailable

7

Rear Wiring Harness

520000849

Unavailable

8

Male Housing, 3 Circuits

515175494

$15.35

9

Bulb

520000758

$7.49

10

Stopper Rubber

705014429

Unavailable

12

Yellow, RH Reflector

520001600

$31.51

13

Yellow, LH Reflector

520001601

$31.51

14

Red, Lateral Reflector

705003412

$13.28

15

Tool Kit | Includes 20 To 28

529000065

$57.99

16

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

$16.89

19

Latch

520000528

$6.60

20

Hitch Ass'y | Includes 3600 to 3600a

520001398

$71.51

21

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Fitting Plate | Model- North America This part replaces M5344151.

5344151

Unavailable

24

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

25

Cotter Pin

41031

$6.26

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Bolt Carriage M8 X 40

207784044

$1.09

28

Cover | Model-T3

28056

$5.52

29

Plate

520000727

$33.82
