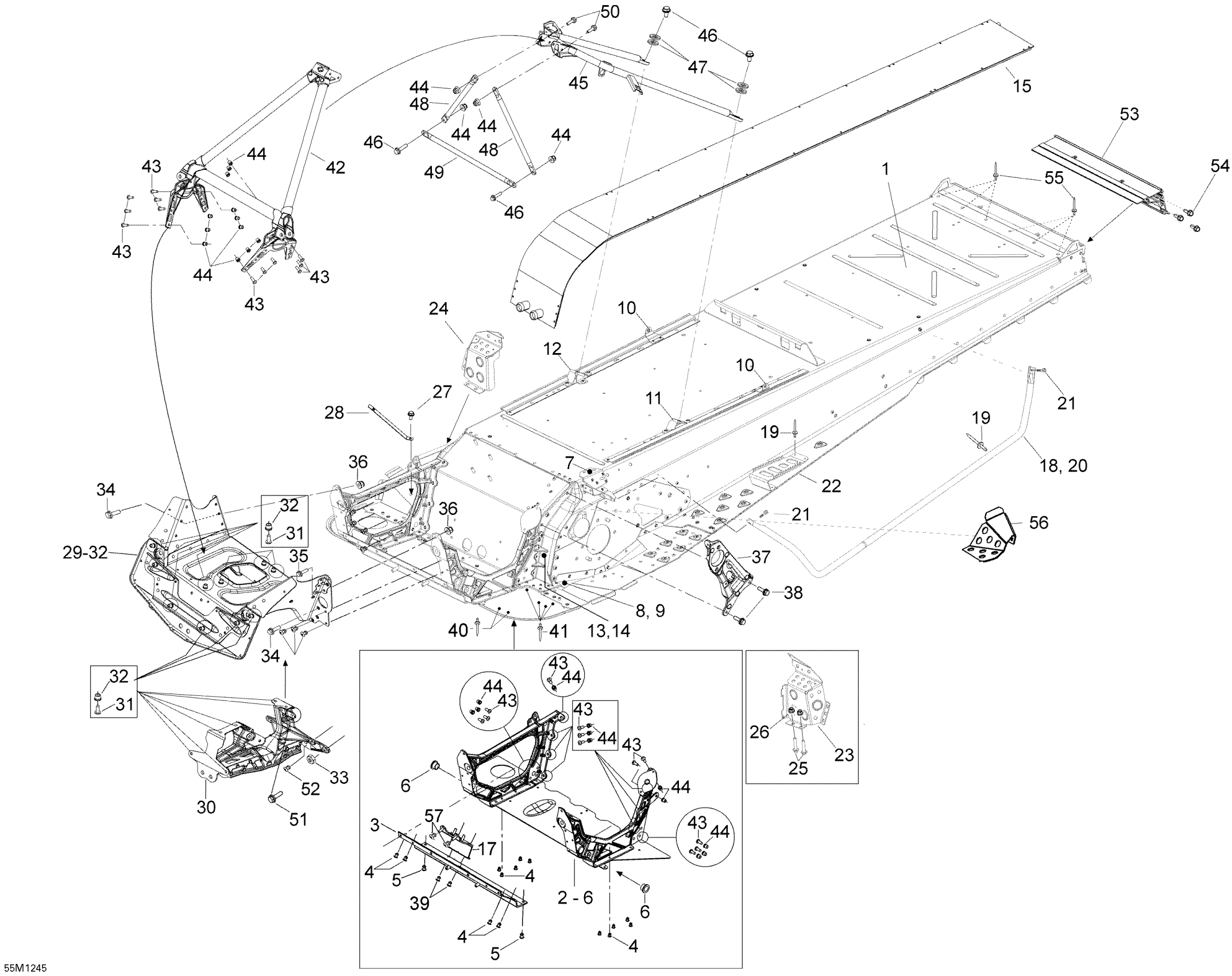

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Frame and Components Diagram

#

Description
Price

1

Frame | Includes 1 To 29

518326930

Unavailable

2

Module E | Includes 2 To 12

518328186

$907.66

3

Front Member

518326198

$59.97

4

Hemlock Rivet, 6.5 mm

293150119

$4.00

5

Hemlock Rivet 6.5 mm

293150120

$7.23

6

Leg Bushing

505072690

Unavailable

7

Fastening Bracket

605355235

Unavailable

8

DRIVE AXLE COVER R.H. - Call your local BRP dealership

518326659

Unavailable

9

Drive Axle Cover L.H.

518326658

Unavailable

10

Seat Box Bracket

518325987

Unavailable

11

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

$40.74

12

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

$40.74

13

LH Frame Corner

518325524

$52.28

14

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

15

Radiator

509000975

$803.05

17

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

18

FOOTBOARD SUPPORT TUBE, LH - Call your local BRP dealership

518325641

Unavailable

19

Rivet Hucklok

293150163

$2.82

20

FOOTBOARD SUPPORT TUBE, RH - Call your local BRP dealership

518325642

Unavailable

21

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

22

Footrest

520000492

$18.43

23

Toe Hook LH

518326726

Unavailable

24

Toe Hook RH

518326727

Unavailable

25

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

27

Torx Screw M6 X 20

250000722

Unavailable

28

Spring Bracket

514054846

$4.34

29

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

30

Front Suspension Support

518327487

Unavailable

31

Hex. Flange Screw M6 X 20

207662044

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

Hex. Flange Elastic Nut M8

233281414

Unavailable

34

Hexagonal Head Screw

210262050

$1.74

35

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

PULLEY SUPPORT - Call your local BRP dealership

518326714

Unavailable

38

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

39

RIVET_HUCKLOK 6,4 MM HKLP-R8-6 - Call your local BRP dealership

293150164

Unavailable

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

41

Avex Rivet

390909200

Unavailable

42

Front Member

518326970

$276.12

43

Hex. Flange Screw M6 X 20

207662044

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

45

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

46

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Upper Lateral Column Support

518325114

Unavailable

49

Center Column Support

518325115

Unavailable

50

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

51

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

52

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

53

Rear Profile

518328749

$217.66

54

Hex Forming Screw DIN.7500D

250000376

$7.31

55

Hemlock Rivet, 6.4 mm

293150174

$6.43

56

Brake Hose Cover | Except Package SWT

518325626

$28.43

57

Hex. Flange Screw M6 X 16

207661644

Unavailable
