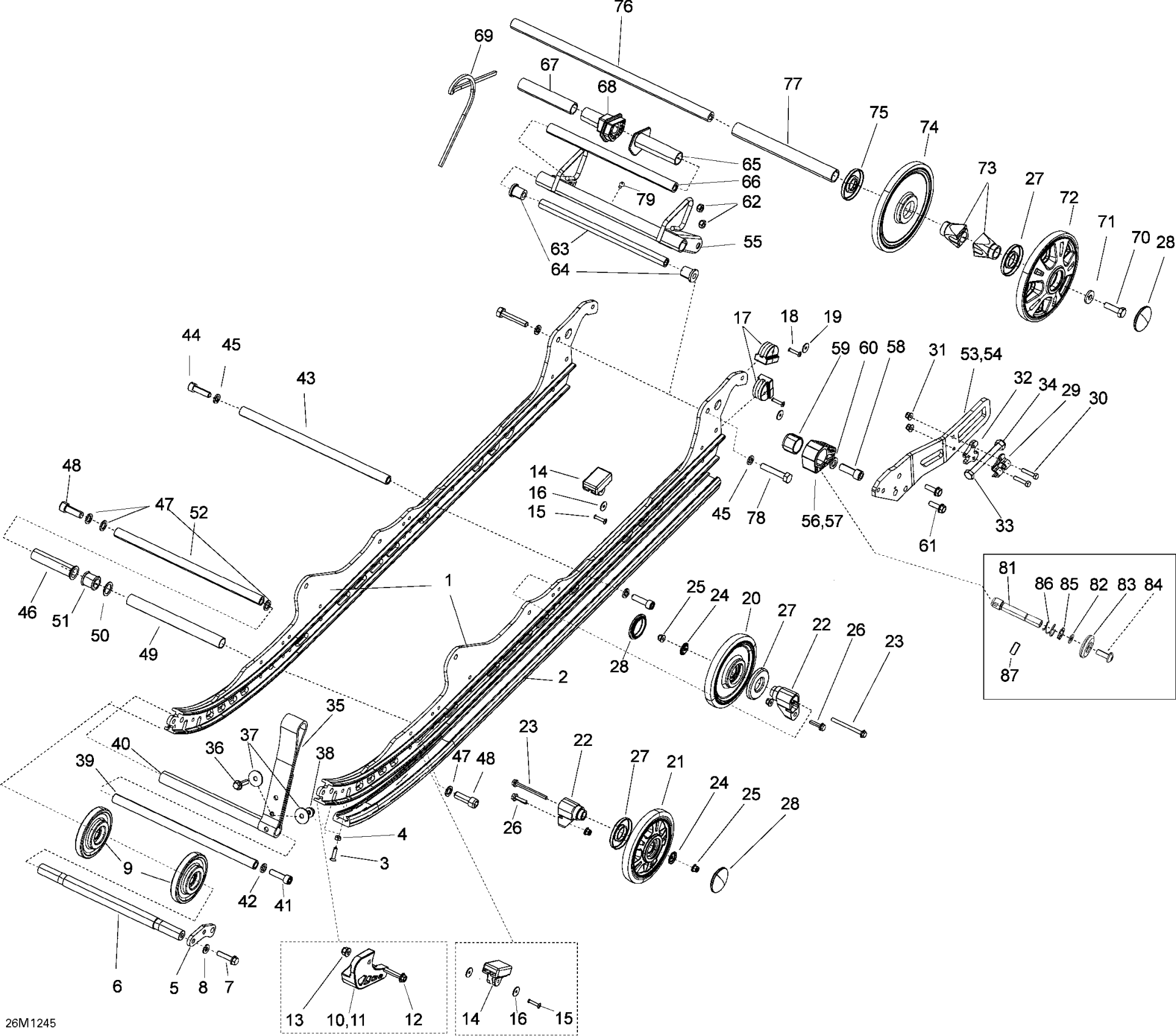

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Rear Suspension Diagram
#
3
Phillips Screw M6 X 25
208562531
Unavailable
12
Hex. Flange Screw M8 X 40
207684044
Unavailable
13
Hex. Flange Elastic Nut M8
233281414
Unavailable
14
Rubber Stopper
503190576
Unavailable
15
Pop Rivet 3/16"
293150142
Unavailable
16
Washer
503191273
Unavailable
17
Rubber Stopper
503191291
Unavailable
18
Pop Rivet 3/16"
293150142
Unavailable
19
Washer
503191273
Unavailable
21
Black, Wheel Ass'y 147 mm | Includes 440 to 440b
503191152
Unavailable
22
Casted Support
503193894
Unavailable
24
Wheel Cup M6
503191820
Unavailable
25
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
26
Hex Flange Screw M6 x 25
250000522
Unavailable
27
Labyrinth Seal
503190434
Unavailable
28
Wheel Cap
570063600
Unavailable
30
Hex Cap Screw DIN.931
250000480
Unavailable
31
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
33
HEX. SCREW M10 X 100 - Call your local BRP dealership
230100044
Unavailable
35
Stopper Strap
503192360
Unavailable
36
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
38
Hex. Flange Elastic Nut M8
233281414
Unavailable
40
Spacer
503192679
Unavailable
42
Washer
503189564
Unavailable
43
Axle Strap
503191418
Unavailable
45
Washer
503189564
Unavailable
46
Center Bushing
503191259
Unavailable
47
Washer
503189276
Unavailable
48
Socket Head Screw M12 X 35, Scotch Grip
205523544
Unavailable
50
Washer
503189273
Unavailable
51
Bushing
503189271
Unavailable
52
Shaft
503191420
Unavailable
55
Welded Pivot | Includes 100c to 100c3
503191414
Unavailable
56
LH Block
503192426
Unavailable
57
RH Block
503192427
Unavailable
58
Socket Head Screw M12 X 35, Scotch Grip
205523544
Unavailable
59
Block Guide
503189488
Unavailable
60
Washer | 7415/7416. 7417/7418.
503189148
Unavailable
61
Hex. Flange Screw M8 X 25
207682534
Unavailable
62
Hex. Elastic Stop Nut M8
232581414
Unavailable
63
Lower Shaft
503191390
Unavailable
65
LH Spring Cam
503191668
Unavailable
66
Cam Axle
503191711
Unavailable
67
Spacer
503191713
Unavailable
68
RH Spring Cam
503191190
Unavailable
69
Spring
503194624
Unavailable
70
Hex. Screw With Nylon
250000019
Unavailable
72
Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b
503192128
Unavailable
74
Black, Wheel Ass'y, 165 mm | Includes 670 to 670b
503192140
Unavailable
75
Labyrinth Seal
503190682
Unavailable
76
Rear Axle
503191408
Unavailable
78
SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership
250000471
Unavailable
79
Grease Fitting
408200700
Unavailable
81
Rode
503192437
Unavailable
82
Flat Washer M5
234051410
Unavailable
83
Handle
503192438
Unavailable
85
Circlip
293370068
Unavailable
86
Compression Spring
503192436
Unavailable
87
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership
250400005
Unavailable
