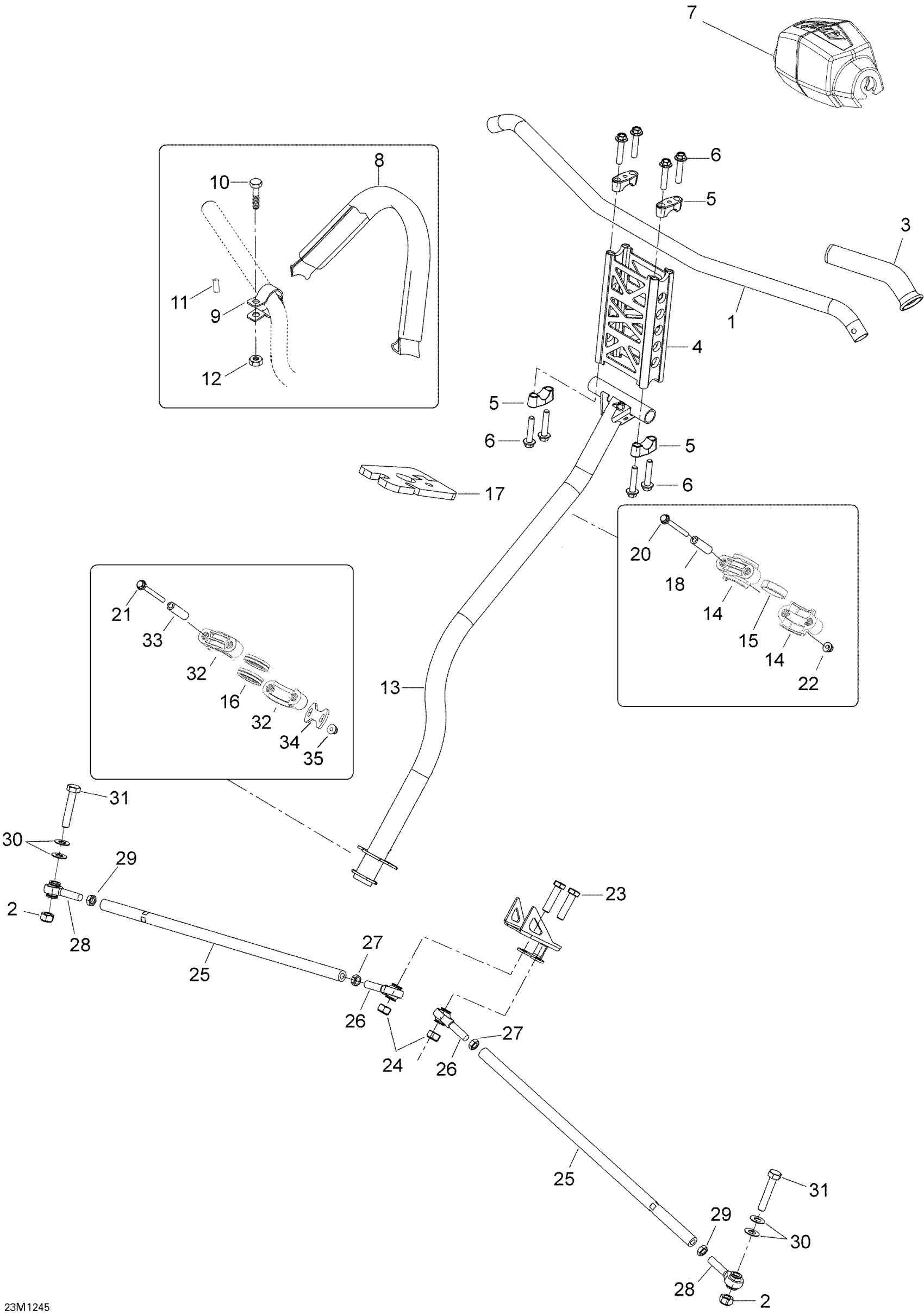

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Steering Diagram

#

Description
Price

1

Handle Bar

506152722

$141.01

2

Elastic Stop Nut M10

232500416

$1.79

3

Grip | WAKE This part replaces M5340464.

506152483

$11.31

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.54

5

Steering Support | Includes 40 to 40a

506152751

$11.58

6

Hex. Flange Screw M8 x 40

250000285

$0.75

7

Steering Pad

506152192

$52.96

8

Strap Ass'y | Package XMR

506152115

$41.76

9

Black Support Plate

506152536

$8.34

10

Hex. Flange Screw M6 X 20

207662084

$0.96

11

Bushing | Package XMR

506152156

$5.19

12

Hex. Flange Elastic Nut M6

233261494

$1.45

13

Steering Column

506152964

$183.55

14

Upper Half-Housing

506152508

$7.18

15

Upper Anti-Vibration Gasket

506152509

$4.39

16

Lower Vibration Ring

506152518

$4.39

17

Cushion

506152404

$24.60

18

Housing Bushing

506152297

$9.93

20

Hex. Flange Screw M6 X 70

207667056

$4.15

21

Hex. Flange Screw, M8 X 65

207686544

$11.18

22

Elastic Flange Nut M6 X 1.0

233261416

$2.00

23

Hex. Screw M10 X 40

207004044

$4.51

24

Elastic Stop Nut M10

232500416

$1.79

25

Tie Rod

506152436

$57.43

26

LH Thread Ball Joint

506152081

$38.78

27

LH Threaded Hex. Jam Nut M10

250100016

$0.70

28

RH Threaded Ball Joint

506152019

$38.78

29

RH Threaded Hex. Jam Nut M10

732610010

$0.70

30

Washer

506152194

$4.28

31

Hex. Screw M10 X 45

207004544

$1.60

32

Lower Half-Housing

506152217

$5.40

33

Lower Housing Bushing

506152388

$14.81

34

Stopper Plate

506152389

$9.93

35

Hex. Flange Elastic Nut M8

233281414

$1.31
