Description

Price

-

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2,149.99

1

Counter Shaft Ass'y | Gear Box 2.30

619230044

Unavailable

2

Oil seal

619230010

Unavailable

3

Main Shaft Ass'Y This part replaces 619230045.

619230062

Unavailable

4

Reverse Shaft Ass'y (Slow Ratio) | Gear Box 2.30

619230073

$593.05

5

Fork, Forwards

619230055

$140.74

6

Fork, reverse

619230015

Unavailable

7

Shaft

619230016

Unavailable

8

Spring

619230017

$14.34

9

Shifting Drum

619230056

$210.74

10

Oil seal This part replaces 619230052.

619230019

Unavailable

11

Bushing

619230020

$9.37

12

Locking lever

619230021

$57.66

13

Middle gear

619230022

$219.20

14

Lower gear

619230023

$406.89

15

Magnetic Cap

504152821

Unavailable

16

COVER, OUTSIDE (RH) - Call your local BRP dealership

619230025

Unavailable

17

Cover Lh (Inside) This part replaces 619230067.

619230075

Unavailable

18

Oil Plug

619230027

$40.74

19

O-Ring

619230028

$4.28

20

Screw

619230029

Unavailable

21

Washer

619230030

$7.82

22

Oil seal

619230031

$19.20

23

SCREW M6 X 20 - Call your local BRP dealership

619230033

Unavailable

24

Allen Screw M8 x 10

619230037

$5.89

25

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

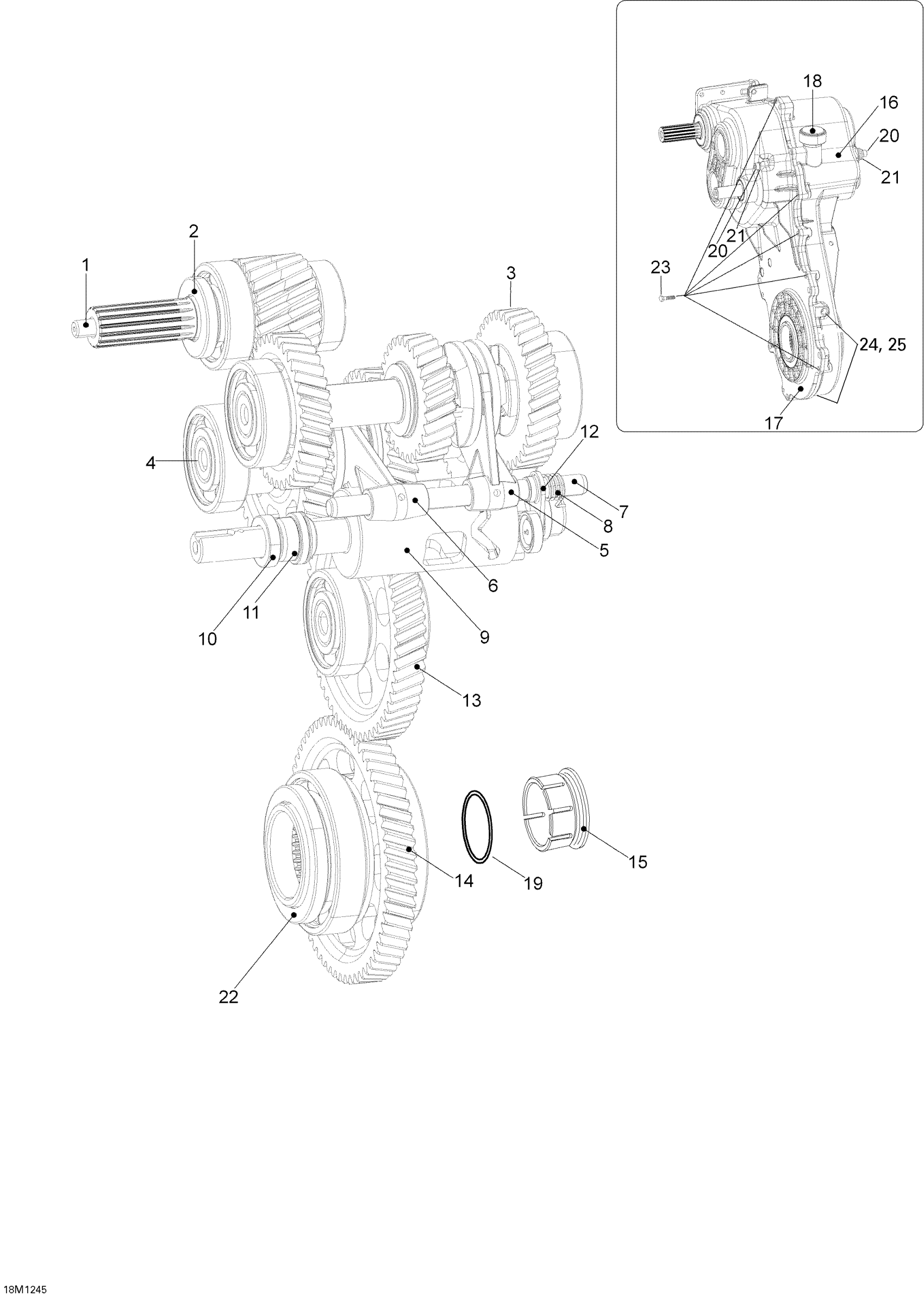

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Transmission Diagram

Counter Shaft Ass'y | Gear Box 2.30

Oil seal

Main Shaft Ass'Y This part replaces 619230045.

Fork, reverse

Shaft

Oil seal This part replaces 619230052.

Magnetic Cap

COVER, OUTSIDE (RH) - Call your local BRP dealership

Cover Lh (Inside) This part replaces 619230067.

Screw

SCREW M6 X 20 - Call your local BRP dealership

Gasket-ring - Call your local BRP dealership
