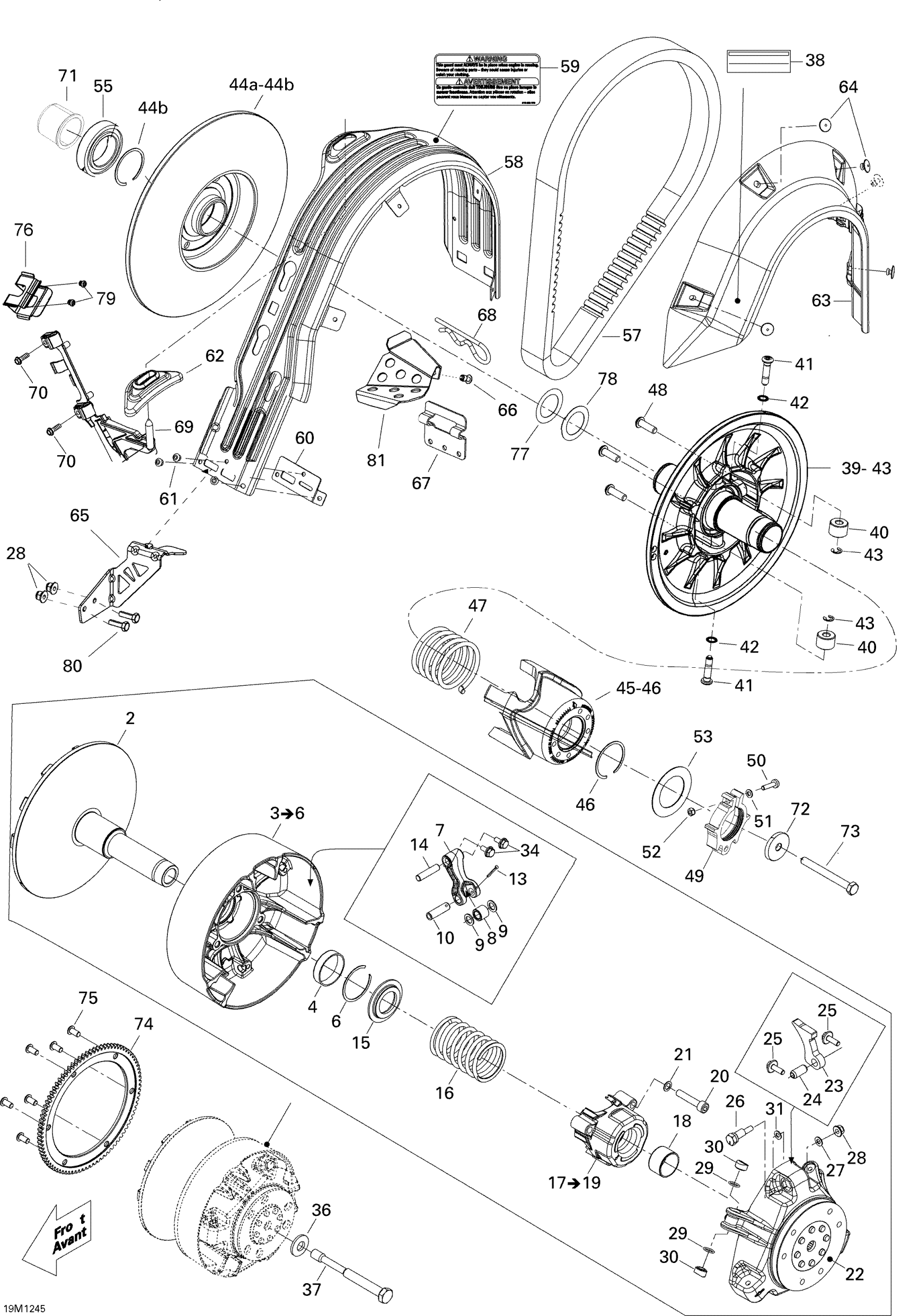

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417223086

$33.82

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417222594

$14.11

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Tra Spring

414993000

$14.75

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

Unavailable

22

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223441

Unavailable

23

Ramp 600

417222444

$32.28

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

Calibration Screw

417223501

$27.66

27

Flat Washer 6 mm

234061410

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

O-Ring

732401030

$0.95

30

Slider Shoe This part replaces 420460045.

417223021

$6.09

31

Washer

417005600

$3.86

34

Serrated Hex. Flange Bolt M6

250000416

$4.12

36

Spring Washer 14 mm

250200006

Unavailable

37

Drive Pulley Bolt

417120000

$63.82

38

DECAL - Call your local BRP dealership

516004303

Unavailable

39

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$336.89

40

Pulley Roller

417127016

Unavailable

41

Pivot Stud

417127259

Unavailable

42

Lock Washer 8 mm

250200009

Unavailable

43

Circlip

414753500

$0.59

44a

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

44b

Circlip

293370049

Unavailable

45

Cam Ass'y

417127411

$164.99

46

Circlip

293370049

Unavailable

47

Spring, White

417127243

$42.28

48

Torx Screw M8 X 25, Scotch Grip

250000283

$1.61

49

Calibration Ass'y

415129604

Unavailable

50

Socket Screw M5 X 25

205052544

$1.34

51

Flat Washer M5

234051410

Unavailable

52

Elastic Stop Nut M5

232551414

Unavailable

53

Washer

417127155

Unavailable

55

Ball Bearing

504152574

Unavailable

57

Drive Belt

417300551

Unavailable

58

Belt Guard

417300382

$85.35

59

Security label, Belt Guard

516004649

Unavailable

60

Reinforcement

417300380

$5.17

61

Avex Rivet

390909200

Unavailable

62

Guide

417300381

$9.23

63

Side Protector

417300356

$13.25

64

Pop Rivet 3/16"

293150103

Unavailable

65

Belt Guard Bracket

417300398

Unavailable

66

Rivet Hucklok

293150163

$2.82

67

Belt Guard Bracket | Except Package SWT

417300363

$12.20

68

Hair Pin

114045200

Unavailable

69

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

71

Protective Rubber

504153054

$16.12

72

Strength Washer

517302322

$11.09

73

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

74

Ring Gear_Starter This part replaces 417223738.

417225070

Unavailable

75

Torx Screw M8 X 16

250000751

$4.64

76

Bracket

517281905

Unavailable

77

Spacer

417300265

$2.12

78

Shim

504112000

$6.05

79

Avex Rivet

390909200

Unavailable

80

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

81

Brake Hose Cover | Except Package SWT

518325626

$28.43
