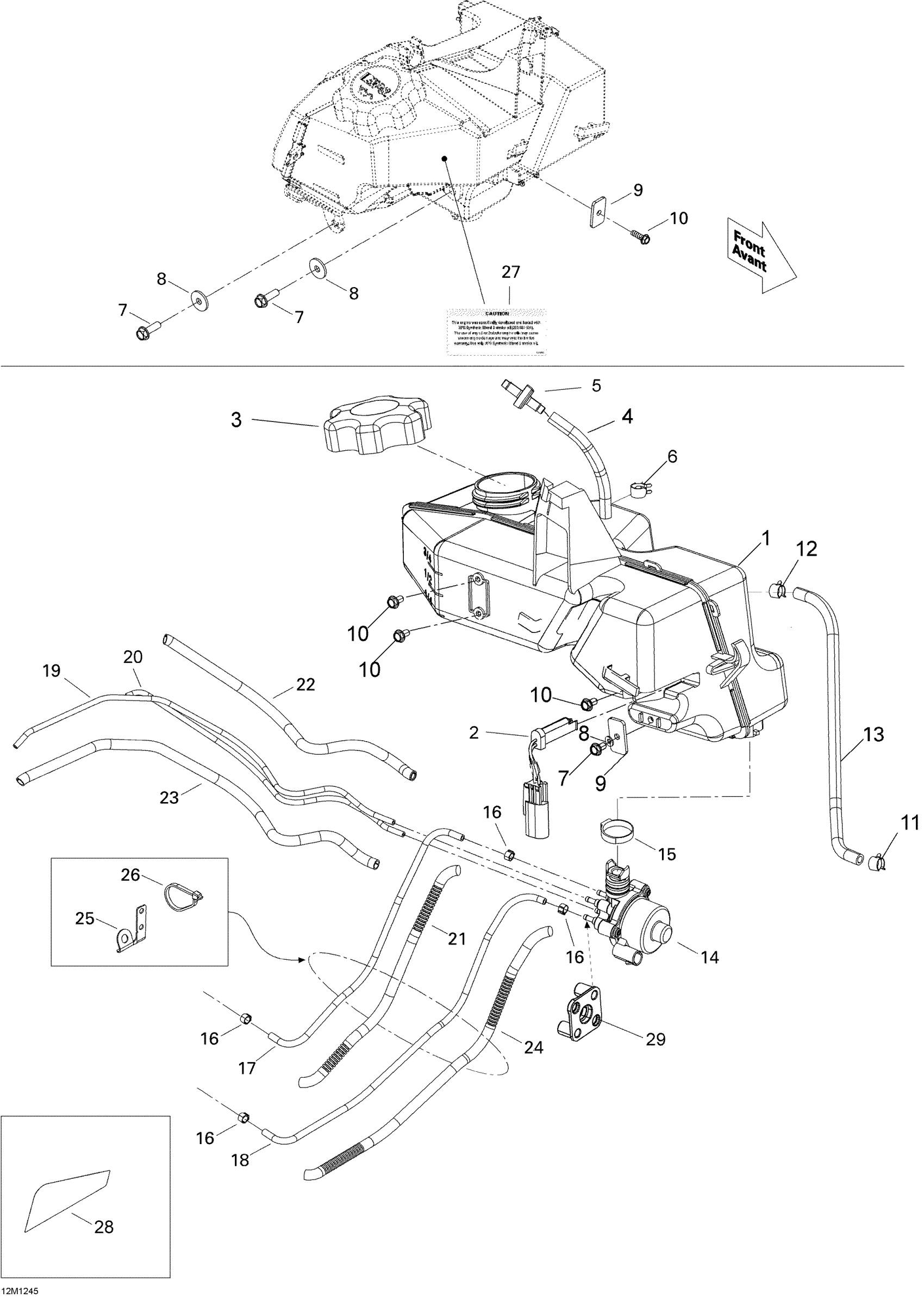

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Oil System Diagram

#

Description
Price

1

Oil Tank

519000340

Unavailable

2

Level Sensor

515176978

Unavailable

3

CAP - Call your local BRP dealership

519000194

Unavailable

4

Polyurethane Hose 10000Mm Long

219704410

Unavailable

5

Check Valve

275500398

Unavailable

6

Spring Clamp

414554800

$0.83

7

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.06

8

Flat Washer

224061201

Unavailable

9

Bracket

519000179

$8.57

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

11

Spring Clamp

414420700

Unavailable

12

Spring Clamp

414554800

$0.83

13

Polyurethane Hose 10000Mm Long

219704410

Unavailable

14

Pump_Hydraulic This part replaces 519000323.

519000376

Unavailable

15

Crimp Clamp

293650099

Unavailable

16

Oetiker Clamp

293650100

Unavailable

17

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

18

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

19

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

20

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

21

Tubing 6 Mm 3000Mm Long

219704425

$13.14

22

Tubing 6 Mm 3000Mm Long

219704425

$13.14

23

Tubing 6 Mm 3000Mm Long

219704425

$13.14

24

Tubing 6 Mm 3000Mm Long

219704425

$13.14

25

Bracket

519000245

Unavailable

26

Tie Wrap 142 mm

293750002

Unavailable

27

NOTICE DECAL, OIL - Call your local BRP dealership

516005528

Unavailable

28

Protection Decal / Lexan

516004648

Unavailable

29

Bracket

519000271

Unavailable
