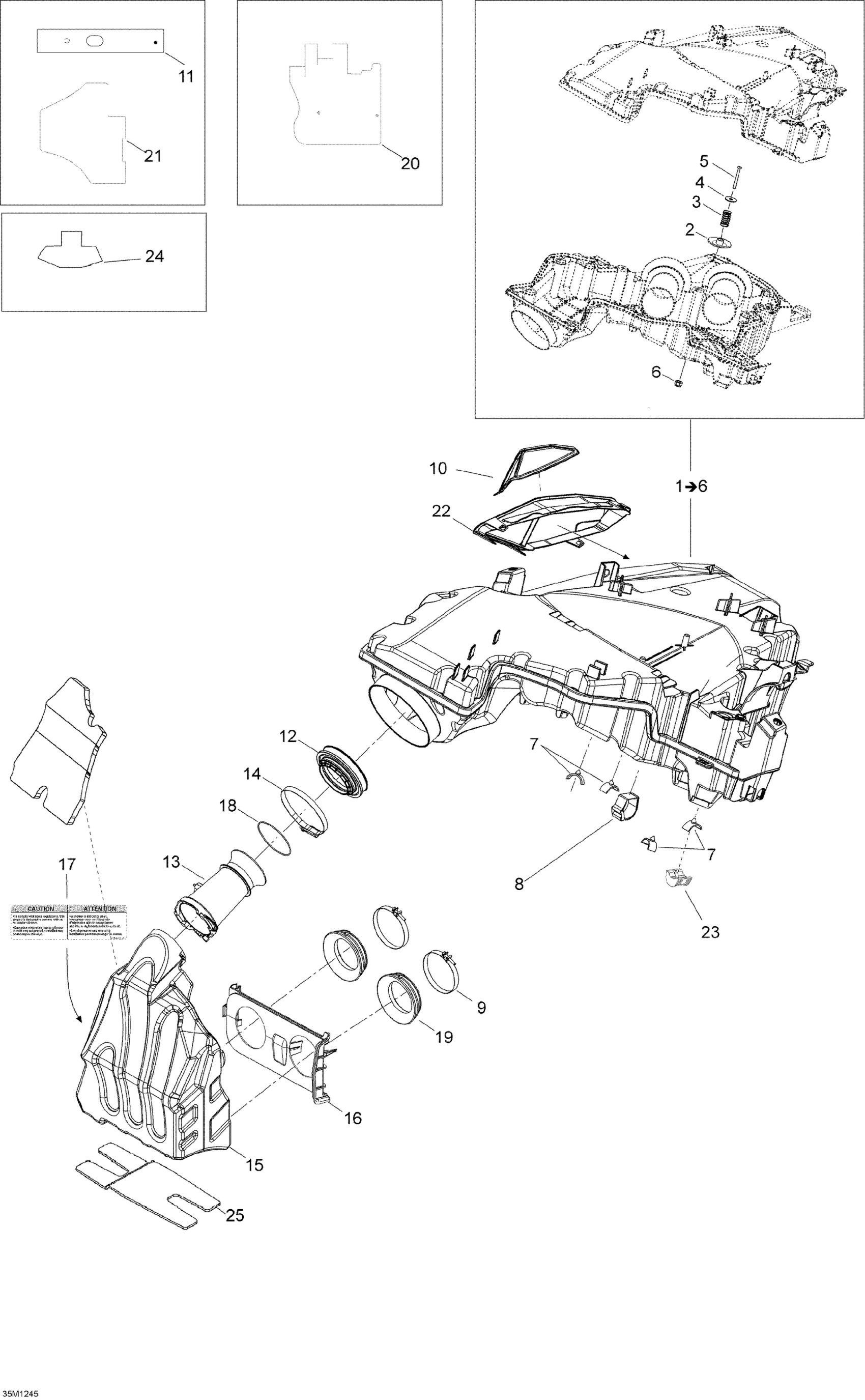

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Air Intake System Diagram

#

Description
Price

1

Chamber Ass'y

508000790

$185.79

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Spring

508000576

$7.13

4

Flat Washer

224060201

$1.12

5

Socket Head Screw M4 X 40 | X

205444086

$1.63

6

Elastic Stop Nut M4

232541414

$0.55

7

Stopper

508000537

$7.13

8

Velcro Strip

508000820

$7.13

9

Gemi Clamp

508000346

$9.03

10

Air Filter

508000609

$44.75

11

Heat Shield

508000677

$7.13

12

Boot

508000548

$22.36

13

Flute

508000662

$13.24

14

Norma Gear Clamp

514052983

$14.90

15

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$79.07

16

Plate Adapter

508000613

$17.88

17

Caution Label, Air Intake

516004651

Unavailable

18

O-Ring

293300115

$3.01

19

Air Intake Adapter

508000614

$17.88

20

Heat Shield

508000675

$9.07

21

Heat Shield

508000676

$9.07

22

Adaptor

508001020

$29.07

23

Bumper

508000572

Unavailable

24

Heat Shield

508000677

$7.13

25

Insulated Foam

508000739

$8.13
