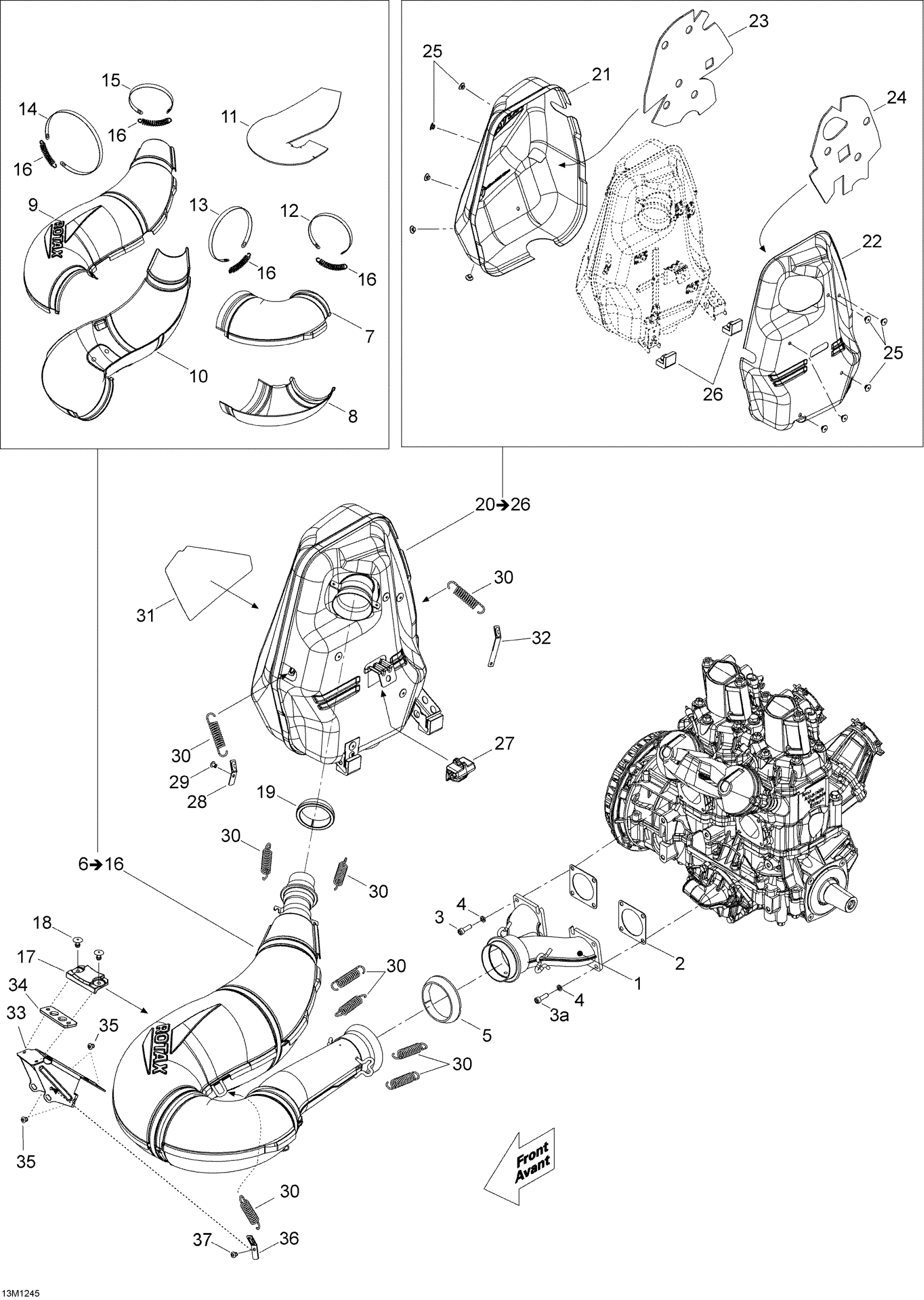

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$269.97

2

Gasket

420850552

$7.92

3

Socket Head Screw Scotch Grip M6 X 20

250001077

Unavailable

4

Washer

514053953

$0.75

5

Exhaust Gasket

514053487

Unavailable

6

Tuned Pipe Ass'y

514055027

$664.58

7

Front Upper Half Enveloppe

514054992

$38.43

8

Front Lower Half Enveloppe

514054993

$38.43

9

Rear Upper Half Enveloppe

514055039

$67.66

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

11

Insulating Wool

514054487

$19.20

12

Retaining Strap

514054408

$10.55

13

Retaining Strap

514054409

$10.55

14

Retaining Strap

514054410

$10.55

15

Retaining Strap

514053499

$8.35

16

Spring

514053643

$6.20

17

Bumper

514054275

$14.65

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

19

Exhaust Gasket

514054174

$27.66

20

Muffler Ass'y | Includes 400 to 400f

514055025

$738.43

21

RH Deflector

514054985

$54.58

22

LH DEFLECTOR - Call your local BRP dealership

514054528

$41.51

23

RH INSULATING WOOL - Call your local BRP dealership

514054298

$14.92

24

LH Insulating Wool

514054299

$19.20

25

Pop Rivet 3/16”

390910000

$0.48

26

Lower Stopper

514054529

$17.66

27

Upper Stopper

514054606

$14.92

28

Spring Bracket

514054522

$6.28

29

Pop Rivet 3/16"

390402200

$0.26

30

Spring

514054226

$6.20

31

Reflective Sheet

514054488

Unavailable

32

SPRING BRACKET - Call your local BRP dealership

514054616

$8.78

33

Exhaust Muffler Support

514054767

$18.43

34

Riser Shim

514054806

Unavailable

35

Hemlock Rivet, 6.5 mm

293150096

$3.17

36

SPRING BRACKET - Call your local BRP dealership

514054087

$4.05

37

Ornit Rivet 6,5 X 14.5

293150266

Unavailable
