Description

Price

1

Engine Outlet Hose

509000595

$14.54

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Aba Gear Clamp, 26-38 MM

509000443

$5.68

4

Bypass Hose

509000523

$59.97

5

Aba Gear Clamp, 26-38 MM

509000443

$5.68

6

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

219700362

Unavailable

7

Thermostat Housing

509000499

$39.97

8

Hose Radiator

509000737

$153.05

9

Not Available As Spare Part - Friction Washer

Unavailable

11

Air Radiator Hose

509000588

$59.97

12

Return Radiator Hose

509000589

$43.99

13

Aba Gear Clamp, 26-38 MM

509000443

$5.68

14

T-Fitting

509000372

$7.87

15

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

16

Filling Hose

509000736

$35.35

17

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

18

Hose 6 Mm 15000Mm Long

219704360

Unavailable

19

Tridon Gear Clamp

293650170

$1.74

20

Crimp Clamp, 15.3-706R

293650047

Unavailable

21

Coolant Tank

509000368

$86.89

22

Reservoir support

509000852

$66.12

23

Support

509000609

$23.05

24

Torx Screw K50 X 16

250000720

$1.39

25

Rivet

36005

Unavailable

26

Support

509000609

$23.05

27

Knob

517303439

$3.73

28

Torx Screw K50 X 16

250000720

$1.39

30

Hose 5.2 mm

509000599

Unavailable

31

Pressure Cap

509000187

Unavailable

32

Hex. Flange Screw M6 X 20

210262040

Unavailable

34

Fan

509000837

$193.82

35

Crimp Clamp

293650099

Unavailable

36

Velcro Strip

508000820

$7.35

37

Bumper

508000572

Unavailable

38

Radiator

509000756

$176.12

39

Cooling Fan Shroud

509001173

$25.35

40

Foam

509000615

Unavailable

41

Deflector

509001174

$19.20

42

Rubber Bumper

570044700

$10.55

43

Clip

710000992

$4.00

44

Hex. Flange Screw M6 X 12

207661244

Unavailable

45

Screw plate

509000614

$23.82

46

Hex. Flange Screw M6 X 20

210262040

Unavailable

47

Formed Hose

509000792

Unavailable

48

Crimp Clamp

293650053

Unavailable

49

Radiator

509000975

$803.05

50

Crimp Clamp, 15.3-706R

293650047

Unavailable

51

Hose

509001070

$11.52

52

Y-Fitting

293710140

$7.31

53

Warning Decal | Europe

516003923

Unavailable

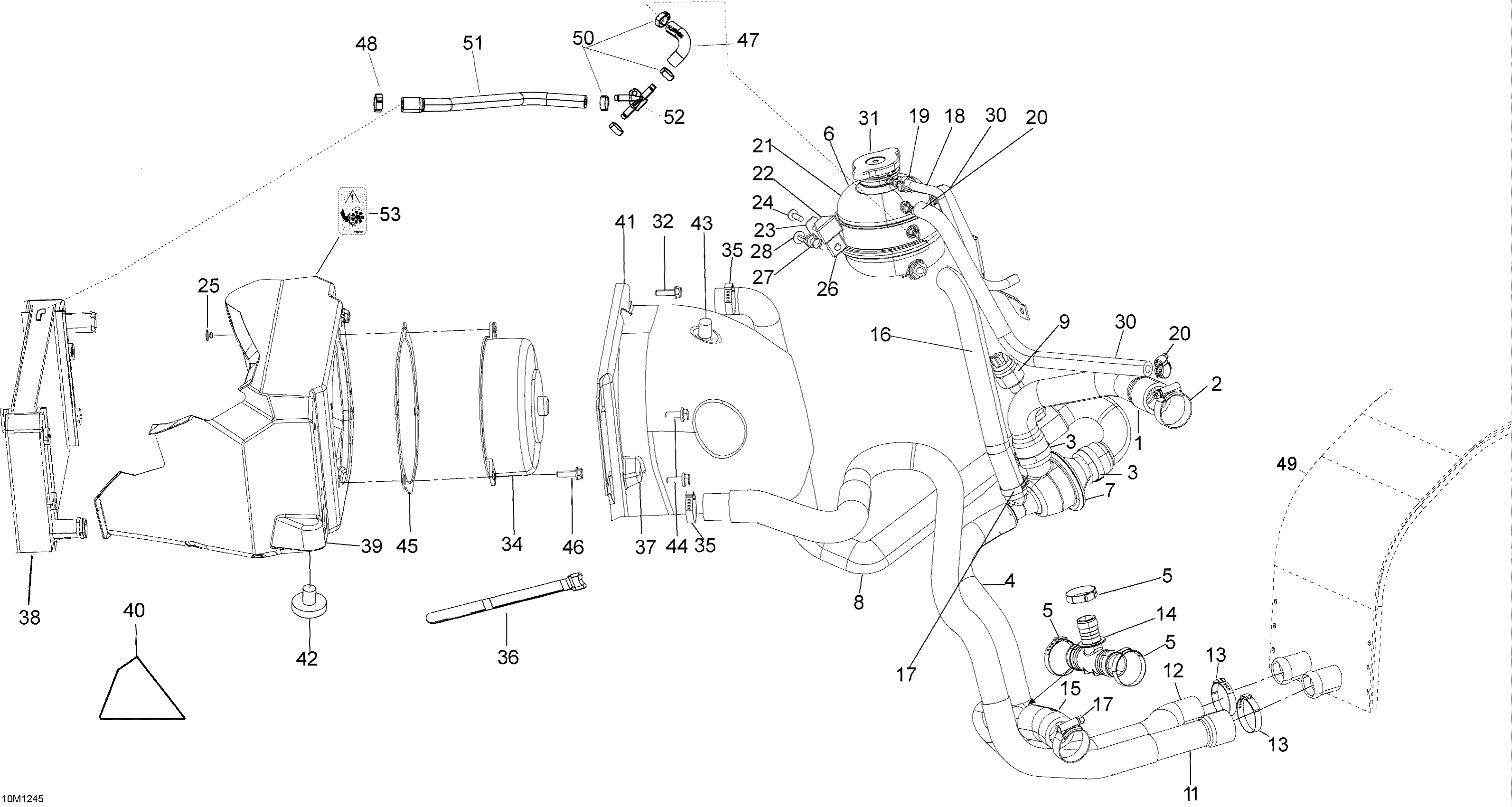

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 Cooling System Diagram

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Oeticker Gear Clamp, 25.6-706R

Hose 6 Mm 15000Mm Long

Crimp Clamp, 15.3-706R

Rivet

Hose 5.2 mm

Pressure Cap

Hex. Flange Screw M6 X 20

Crimp Clamp

Bumper

Foam

Hex. Flange Screw M6 X 12

Hex. Flange Screw M6 X 20

Formed Hose

Crimp Clamp

Crimp Clamp, 15.3-706R

Warning Decal | Europe
