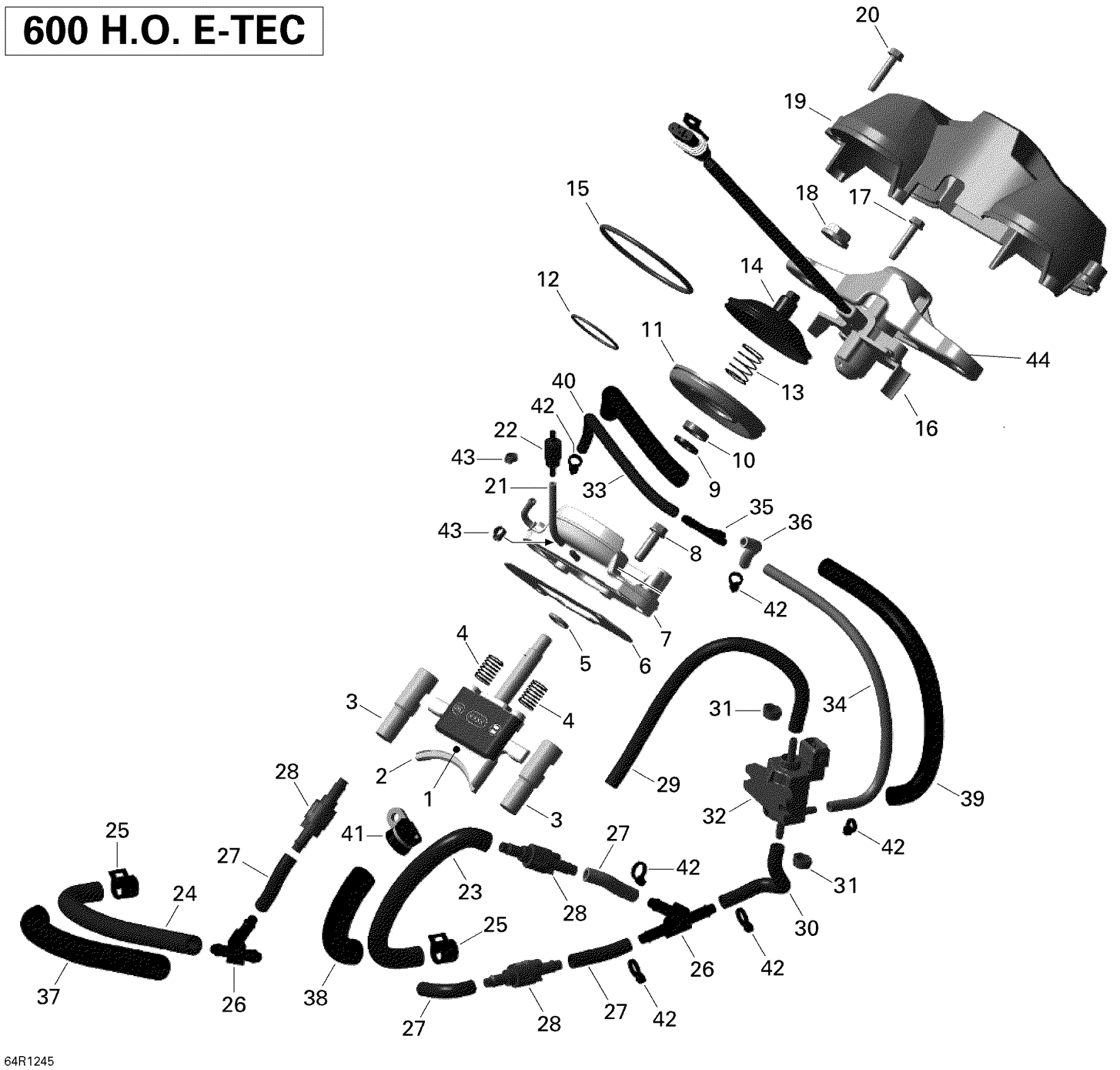

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 3D Rave Diagram

#

Description
Price

1

Exhaust Valve, Upper

420854980

$20.74

2

Exhaust Valve, Lower

420854974

$58.43

3

Exhaust Valve

420854990

$11.18

4

Spring

420238558

Unavailable

5

O-Ring

420931765

$0.81

6

Gasket

420430032

$16.89

7

Valve Housing

420854888

$96.89

8

Torx Flange Screw M6 X 20

420440207

$2.54

9

Gasket Ring

420431380

$8.34

10

Oil Seal | Included in gasket kit

420950732

Unavailable

11

Bellows

420260725

$41.51

12

Hose Spring This part replaces 420939285.

420939286

Unavailable

13

Spring

420238557

$5.22

14

Valve Cover

420854442

$35.35

15

Hose Spring This part replaces 420838253.

420838255

$6.11

16

Position Sensor

420854089

$109.20

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

Unavailable

18

Nut M12 X 1.5

420942190

Unavailable

19

Cover

420910821

$12.52

20

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

Unavailable

21

Oil Hose 1500Mm Long

219704404

Unavailable

22

Check Valve Ass’y

420956515

Unavailable

23

MOLDED HOSE - Call your local BRP dealership

420460782

$11.15

24

MOLDED HOSE - Call your local BRP dealership

420460782

$11.15

25

Norma Spring Clamp

293650214

$15.35

26

Y-Fitting

293710059

Unavailable

27

HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership

420460851

$11.15

28

Check Valve

420660543

$28.43

29

Polyurethane Hose 10000Mm Long

219704410

Unavailable

30

HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership

420460852

Unavailable

31

Gear Clamp

420853658

$6.26

32

Solenoid Valve

270600005

$39.62

33

High Pressure Air Hose, 180 mm

420660571

$12.55

34

HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership

420660575

$11.15

35

T-Fitting

293710068

$6.59

36

HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership

420660572

$11.15

37

Was 409901800 Tubing (13 mm)

219704400

Unavailable

38

Was 409901800 Tubing (13 mm)

219704400

Unavailable

39

Tubing 10 MM 1000MM Long

219704407

Unavailable

40

Tubing 10 MM 1000MM Long

219704407

Unavailable

41

Clamp

420851250

Unavailable

42

Tie Wrap 94 mm | 4X4

293750001

$0.83

43

Clamp

420851508

$12.52

44

Position Sensor

420854089

$109.20
