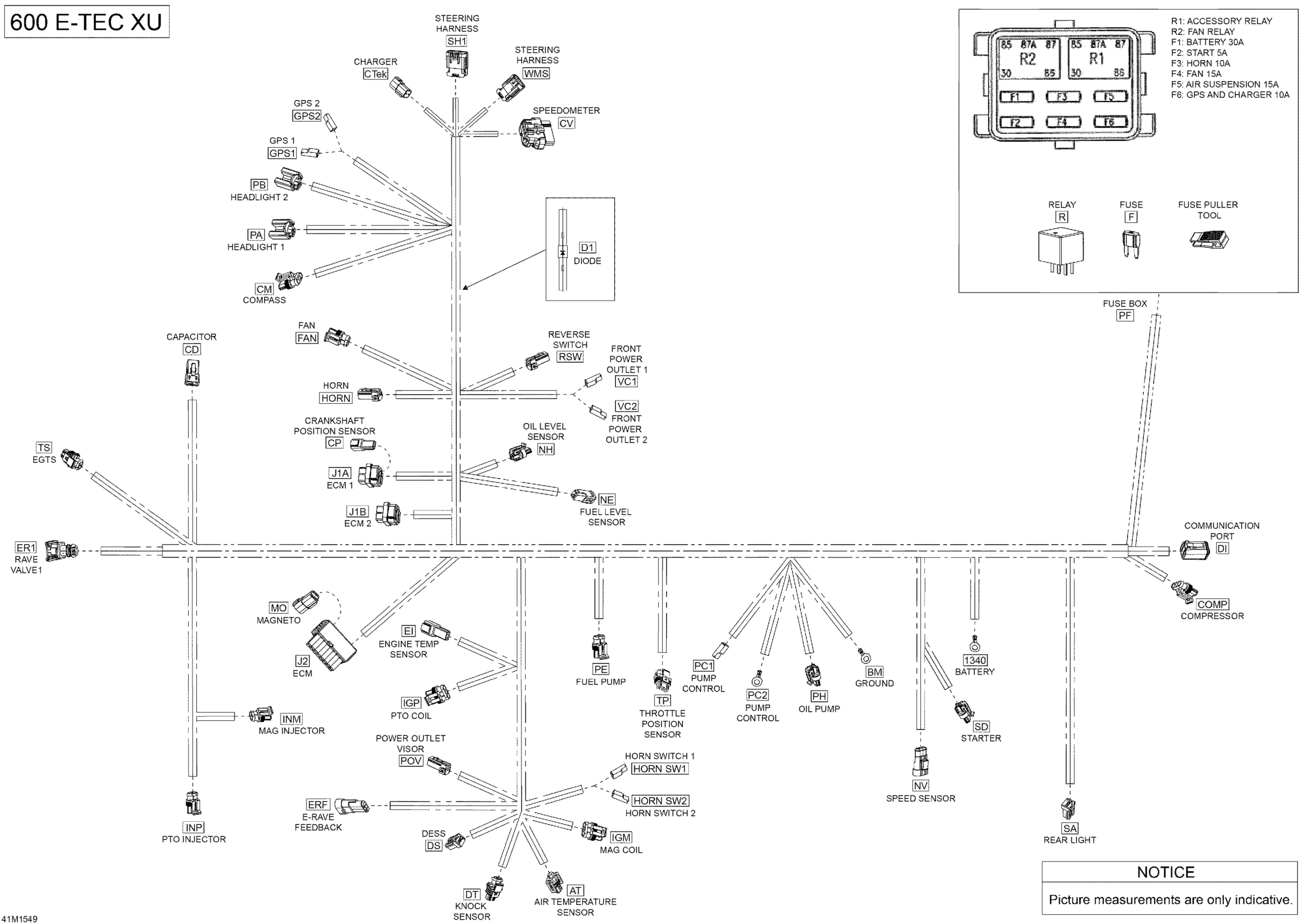

Ski-Doo Skandic SWT 600 E-TEC, 2015 Electrical Harness _41M1549 Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To WMS

515177683

Unavailable

2

Tubing 6 Mm 3000Mm Long

219704425

$13.14

2

Was 409901700 Tubing (9 mm)

219704399

Unavailable

2

Tubing 10 MM 1000MM Long

219704407

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

Unavailable

2

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

2

Was 409901600 Tubing 19mm

219704398

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

1340

Open Barrel

278000992

$1.79

AT

Female Terminal Housing

515176890

$11.14

AT

Female Terminal

710001164

Unavailable

AT

Wire Seal

710001163

Unavailable

BM

Open Barrel

278000992

$1.79

CD

Female Terminal Housing, 2 Circuits

278001673

$23.05

CD

Female Terminal

515175567

$6.03

CD

Female Lock, 2 Circuits

278001671

$3.22

CM

Female Housing, 3 Circuits

409209600

Unavailable

CM

Female Terminal

710001340

Unavailable

CM

Wire Seal

515176621

Unavailable

CM

Tie Wrap 142 mm

293750002

Unavailable

COMP

Female Housing, 3 Circuits

409209600

Unavailable

COMP

Female Terminal

710001340

Unavailable

COMP

Wire Seal

515176621

Unavailable

CP

Male Terminal Housing, 2 Circuits

515175665

$8.02

CP

Male Terminal

278000631

$4.12

CP

Male Lock, 2 Circuits

409207500

$3.02

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

CTek

Male Lock, 2 Circuits

278001672

$3.02

CTek

Male Terminal

515175568

$7.48

CV

Female Housing, 24 Circuits

515175801

Unavailable

CV

Retainer Block

515175802

Unavailable

CV

Wire Seal

515175803

Unavailable

CV

BLOCK - Call your local BRP dealership

515175804

$6.66

CV

LOCK - Call your local BRP dealership

515175805

$5.74

CV

Female Terminal

515175806

$0.81

CV

Plug

515175812

Unavailable

CV

Female Housing

710000399

Unavailable

D1

Diode

409012700

$10.83

DI

Male Housing, 6 Circuits

515175673

$13.05

DI

Female Terminal

278000632

Unavailable

DI

Sealing Cap

293000052

Unavailable

DI

Male Wedge, 6 Circuits

515175678

Unavailable

DS

Female Housing, 3 Circuits

515175495

$15.35

DS

Female Terminal

515175231

Unavailable

DT

Male Housing, 2 Circuits

278001005

$15.57

DT

Female Terminal

278000998

$3.48

DT

Wire Seal

278000999

$2.55

EI

Male Terminal Housing, 2 Circuits

515175665

$8.02

EI

Male Terminal

278000631

$4.12

EI

Male Lock, 2 Circuits

409207500

$3.02

ER1

Female Terminal Housing, 2 Circuits

415128500

$6.31

ER1

Female Terminal

278000998

$3.48

ER1

Seal

415128501

Unavailable

ERF

Housing

710000568

Unavailable

ERF

Male Terminal

515176164

Unavailable

ERF

Clip

710000992

$4.00

ERF

Wire Seal

515176621

Unavailable

F

Little Fuse, 5 Amperes

710000742

Unavailable

F

Little Fuse, 7.5 Amperes

710000743

$8.02

F

Little Fuse, 10 Amperes

710000744

Unavailable

F

Little Fuse, 15 Ampere

710000745

Unavailable

F

Little Fuse, 20 Amperes

710000746

Unavailable

F

Little Fuse, 30 Amperes

710000747

Unavailable

FB

Fuse Box Cover

515177451

$10.88

FB

Case Ass'y with seal, 24 positions

278002824

$29.22

FB

Wire Seal

278000218

Unavailable

FB

Wire Seal

278001065

Unavailable

FB

Wire Seal

710000048

Unavailable

FB

Not Available As Spare Part - Friction Washer

Unavailable

FB

Female Terminal

278002578

Unavailable

FB

Female Terminal

710000890

$3.73

FB

Female Terminal

710000918

Unavailable

FAN

Female Housing, 2 Circuits

409209500

$13.48

FAN

Female Terminal

278001014

Unavailable

FAN

Wire Seal

515176621

Unavailable

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.48

GPS1

Female Terminal

409010100

$5.46

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.48

GPS2

Female Terminal

409010100

$5.46

HORN

Female Housing, 2 Circuits

515175658

Unavailable

HORN

Female Terminal

515175231

Unavailable

IGM

Female Housing, 3 Circuits

409209600

Unavailable

IGM

Female Terminal

278001014

Unavailable

IGM

Wire Seal

515176621

Unavailable

IGP

Female Housing, 3 Circuits

409209600

Unavailable

IGP

Female Terminal

278001014

Unavailable

IGP

Wire Seal

515176621

Unavailable

INM

Female Housing, 2 Circuits

409209500

$13.48

INM

Female Terminal

278001014

Unavailable

INM

Wire Seal

515176621

Unavailable

INM

Tie Wrap 94 mm | 4X4

293750001

$0.83

INP

Female Housing, 2 Circuits

409209500

$13.48

INP

Female Terminal

278001014

Unavailable

INP

Wire Seal

515176621

Unavailable

INP

Tie Wrap 94 mm | 4X4

293750001

$0.83

J1A

Female Terminal Housing, 34 Circuits

515176342

$20.74

J1A

Female Terminal

515176348

$6.03

J1A

Female Terminal

515176541

$4.42

J1A

Plug

515176345

$20.74

J1B

Female Terminal Housing, 26 Circuits

515176341

$28.43

J1B

Female Terminal

515176348

$6.03

J1B

Female Terminal

515176541

$4.42

J1B

Plug

515176345

$20.74

J2

Female Terminal Housing, 16 Circuits

515176340

$13.94

J2

FEMALE TERMINAL - Call your local BRP dealership

415128499

$3.92

J2

Female Terminal

278000998

$3.48

J2

Seal

415128501

Unavailable

MO

Male Terminal Housing, 6 Circuits

515175668

$14.02

MO

Male Terminal

278000631

$4.12

MO

Female Lock, 6 Circuits

278000735

$3.02

NE

Male Terminal Housing, 2 Circuits

515175654

$7.48

NE

Male Terminal

515175232

$1.49

NH

Male Connector, 2 Circuits

278001113

$12.65

NH

Female Terminal

710001119

Unavailable

NV

Housing

710000568

Unavailable

NV

Male Terminal

515176164

Unavailable

NV

Clip

710000992

$4.00

NV

Wire Seal

515176621

Unavailable

PA

Female Housing

515176908

$12.05

PA

Terminal

515176909

Unavailable

PB

Female Housing

515176908

$12.05

PB

Terminal

515176909

Unavailable

PC1

Female Terminal Housing, 1 Circuit

409010400

$7.48

PC1

Female Terminal

409010100

$5.46

PC2

Open Barrel

278000992

$1.79

PE

Female Housing, 2 Circuits

409209500

$13.48

PE

Female Terminal

278001014

Unavailable

PE

Wire Seal

515176621

Unavailable

PH

Male Connector, 2 Circuits

278001113

$12.65

PH

Female Terminal

710001119

Unavailable

POV

Female Housing, 2 Circuits

515175658

Unavailable

POV

Female Terminal

515175231

Unavailable

R

Relay, 30 AMP

515176774

$19.20

RSW

Female Terminal Housing, 2 Circuits

515176296

Unavailable

RSW

Female Terminal

515175231

Unavailable

SA

Female Housing, 3 Circuits

515175495

$15.35

SA

Female Terminal

515175231

Unavailable

SD

Male Connector, 2 Circuits

278001113

$12.65

SD

Female Terminal

278001114

$2.55

SH1

Housing, Packard

710001929

$10.83

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.48

SW1

Female Terminal

409010100

$5.46

SW2

Female Terminal Housing, 1 Circuit

409010400

$7.48

SW2

Female Terminal

409010100

$5.46

TP

Male Housing, 3 Circuits

278000997

$15.57

TP

Female Terminal

278000998

$3.48

TS

Male Housing, 2 Circuits

278001005

$15.57

TS

Female Terminal

278000998

$3.48

TS

Wire Seal

278000999

$2.55

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.48

VC1

Female Terminal

409010100

$5.46

VC2

Female Terminal Housing, 1 Circuit

409010400

$7.48

VC2

Female Terminal

409010100

$5.46

WMS

Housing

710001927

$8.57
