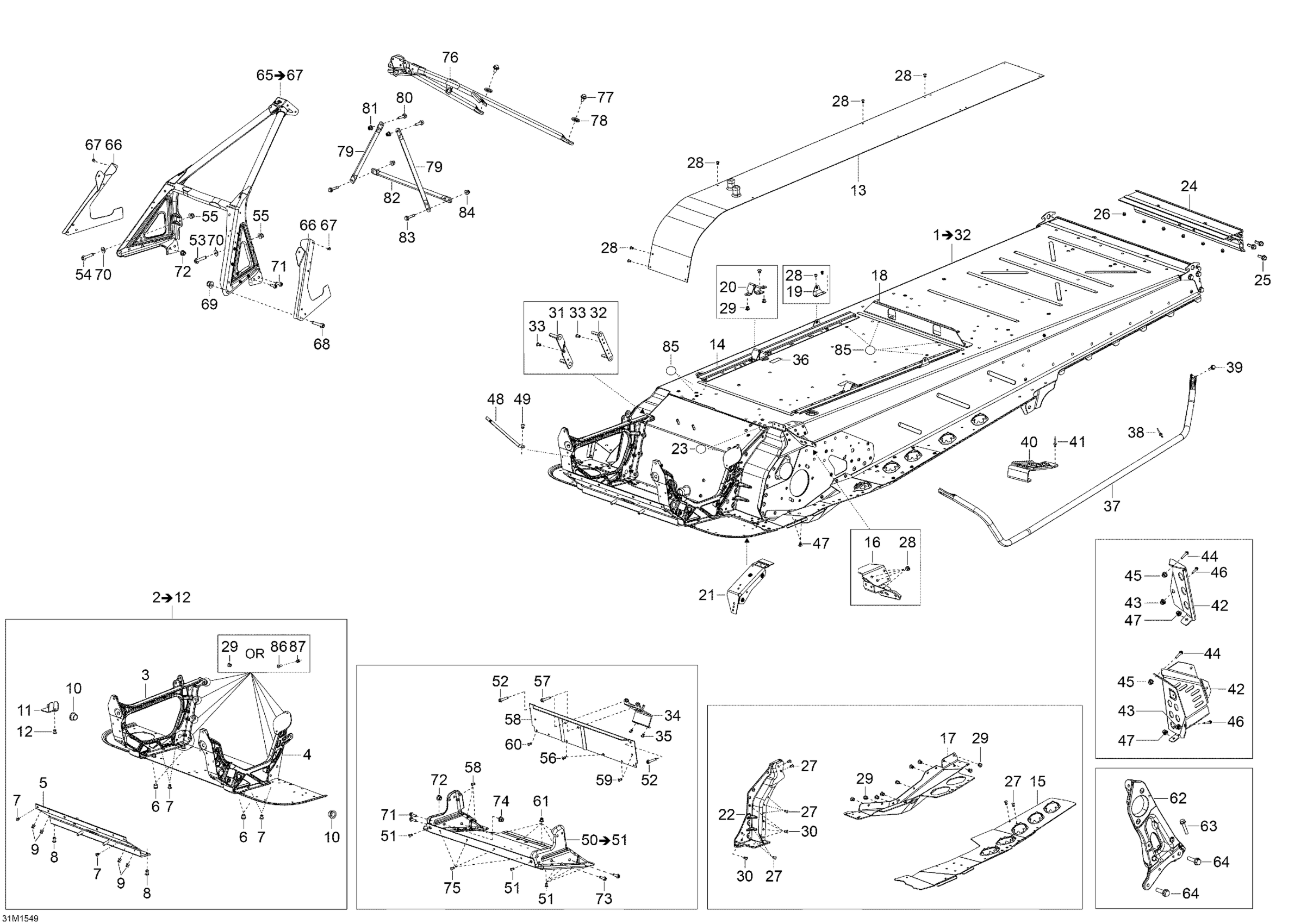

Ski-Doo Skandic SWT 600 E-TEC, 2015 Frame _31M1549 Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership | Includes 1 To 32

518328208

Unavailable

2

Module E | Includes 2 To 12

518328186

$907.66

3

RH Member

518326795

Unavailable

4

LH Member

518326796

$210.74

5

Front Member

518326198

$59.97

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Leg Bushing

505072690

Unavailable

11

Muffler Support

518328194

$16.89

12

Rivet Hucklok

293150163

$2.82

13

Radiator

509000975

$803.05

14

Fastening rail

518326107

$15.35

15

LH FOOTREST - Call your local BRP dealership

518328440

Unavailable

15

RH Footrest

518328441

Unavailable

16

Fastening Bracket

518327884

$25.35

17

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

TUNNEL SUPPORT - Call your local BRP dealership

518327003

$26.12

19

Seat Box Bracket

518327457

$29.97

20

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

$40.74

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

$40.74

21

CLINCH NUT PLATE - Call your local BRP dealership

518328096

$44.58

22

LH Frame Corner

518325643

$52.28

22

RH Frame Corner

518325644

$52.28

23

Adhesive Patch

518325560

Unavailable

24

Rear Profile

518328749

$217.66

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

26

Hemlock Rivet, 6.4 mm

293150174

$6.43

27

Avex Rivet

390909100

$0.29

28

Avex Rivet

390909200

Unavailable

29

Hemlock Rivet, 6.5 mm

293150119

$4.00

30

Rivet

293150183

$2.06

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

Unavailable

33

Pop Rivet 3/16"

390402200

$0.26

34

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

35

Hemlock Rivet, 6.5 mm

293150119

$4.00

36

RUBBER COVER - Call your local BRP dealership

518326357

$9.69

37

LH Footboard Support Tube

518327595

$81.51

37

RH Footboard Support Tube

518327596

$81.51

38

Avex Rivet

390909100

$0.29

39

Hex. Flange Screw M6 x 20

207662056

$0.98

40

Footrest

520000492

$18.43

41

Avex Rivet

390909100

$0.29

42

TOE HOOK LH BLACK 69 LTS - Call your local BRP dealership This part replaces 518328567.

518328568

Unavailable

42

RH Toe Hold

518328570

Unavailable

43

Clinch Nut M6 Hexsert

605636003

$4.12

44

Hex. Flange Screw M6 x 20

207662056

$0.98

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

46

Torx Screw M6 X 16

250000223

$1.74

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

48

Spring Bracket

514054846

$4.34

49

Avex Rivet

390909200

Unavailable

50

S Module | Includes 300 to 300a

518326213

Unavailable

51

Avex Rivet

390909200

Unavailable

52

Hexagonal Head Screw

210262050

$1.74

53

Hex. Flange Screw M6 X 25

207662544

Unavailable

54

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

56

Hemlock Rivet, 6.5 mm

293150119

$4.00

57

Hex. Flange Screw M6 X 16

207661644

Unavailable

58

SUPPORT PLATE - Call your local BRP dealership

518325620

Unavailable

59

Avex Rivet

390909100

$0.29

60

Rivet Hucklok

293150163

$2.82

61

Avex Rivet

390909200

Unavailable

62

Pulley Support

518328434

$130.74

63

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

64

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

65

Front Member Ass'y | Includes 700 to 700d

518326754

Unavailable

66

LH Bumper Fastener

502007077

Unavailable

66

RH Bumper Fastener

502007078

Unavailable

67

Avex Rivet

390909200

Unavailable

68

Hex. Flange Screw M6 X 20

207662044

Unavailable

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

70

Flat Washer

224061201

Unavailable

71

Hex. Flange Screw M6 X 20

207662044

Unavailable

72

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

73

Hex. Flange Screw M6 X 20

207662044

Unavailable

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

75

Avex Rivet

390909200

Unavailable

76

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

77

Hex. Flange Screw M6 x 20

207662056

$0.98

78

Not Available As Spare Part - Friction Washer

Unavailable

79

Upper Lateral Column Support

518325114

Unavailable

80

Hex. Flange Screw M6 x 20

207662056

$0.98

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

82

Center Column Support

518325115

Unavailable

83

Hex. Flange Screw M6 X 25

207662556

Unavailable

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

85

Adhesive Patch

518325560

Unavailable

86

Hex. Flange Screw M6 X 20

207662044

Unavailable

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
